5.12 Panel Save Function
Function
Description
The current measurement setting state is stored (saved) in non-
volatile memory.
Up to 30 sets of measurement states can be saved.
The measurement settings (state) at the time this function is executed
are saved.
Saved measurement states can be reloaded using the Panel Load
function, described later.
Saved Items
• Measurement rate
• Function
• Range setting
• Comparator settings
• BIN settings
• Internal/External trigger setting
• Delay setting
• Zero-Adjust setting
• Averaging setting
• TC setting
• ∆t setting
• OVC setting
• Self-calibration setting
• External I/O BIN/BCD selection
• SYNC/ASYNC Measurement Fault output setting
• Key-Lock
5.12 Panel Save Function

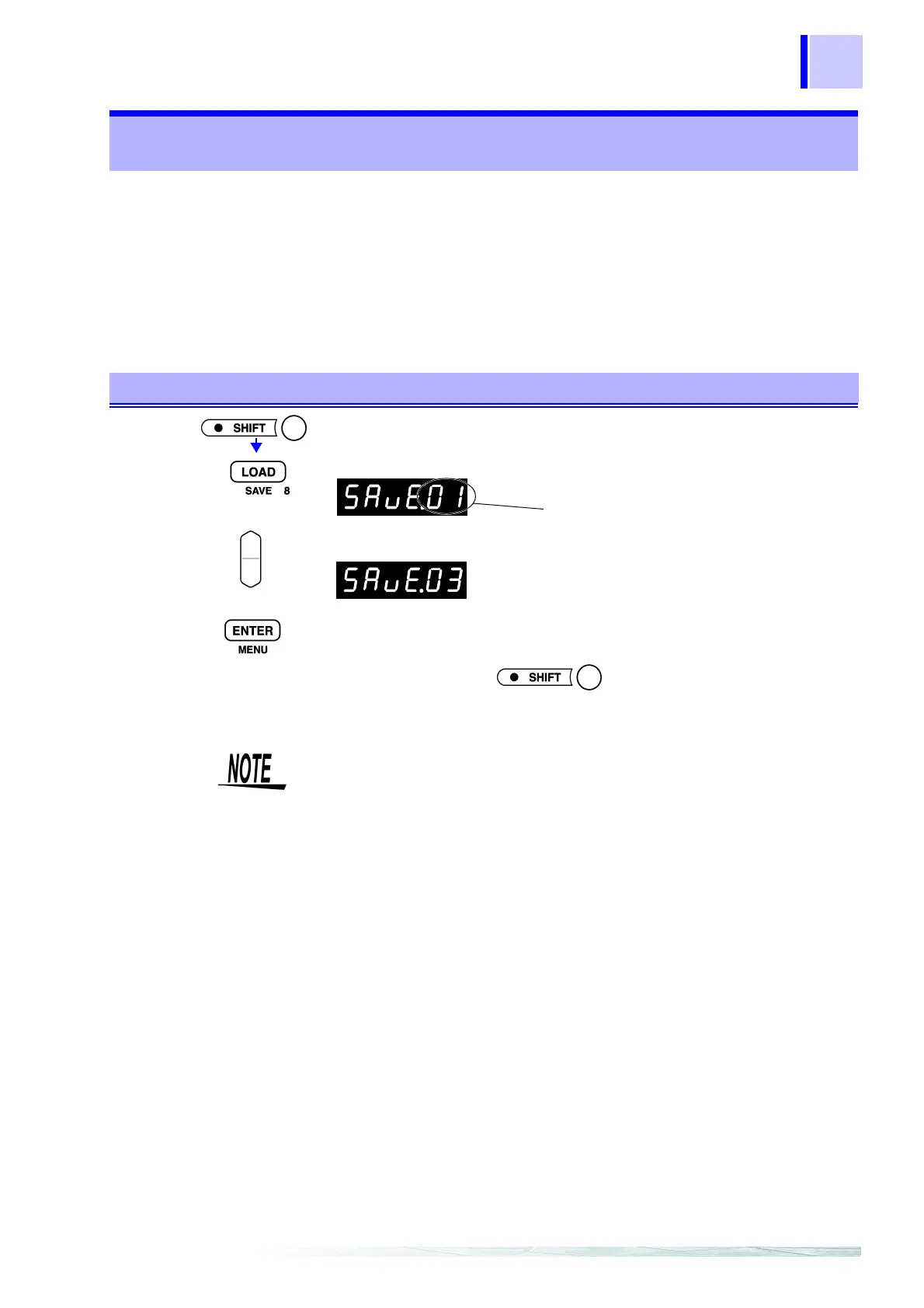

Saving the Measurement Setting State
1
(SHIFT Lamp lit)
The Panel Saving display appears. The panel number blinks.
2
Select the panel number to save.
3
Saves the measurement setting state and returns to the Measurement
display.
To cancel the setting:
Returns to the Measurement display without saving settings.
(Main Display)
Panel No.
Or ten-keys
(Main Display)
(To save measurement settings
as Panel No. 3)
• If you select a Panel number that was previously saved and press
the ENTER key, the contents are overwritten.
• The Key-Lock state can be saved only by the :SYSTem:SAVE
remote command.
