6.2 Signal Descriptions
78
Connector Type
57RE-40500-730B (D29) (manufactured by DDK)
Mating Connector 57-30500 (manufactured by DDK) or equivalent
Pinout
6.2 Signal Descriptions

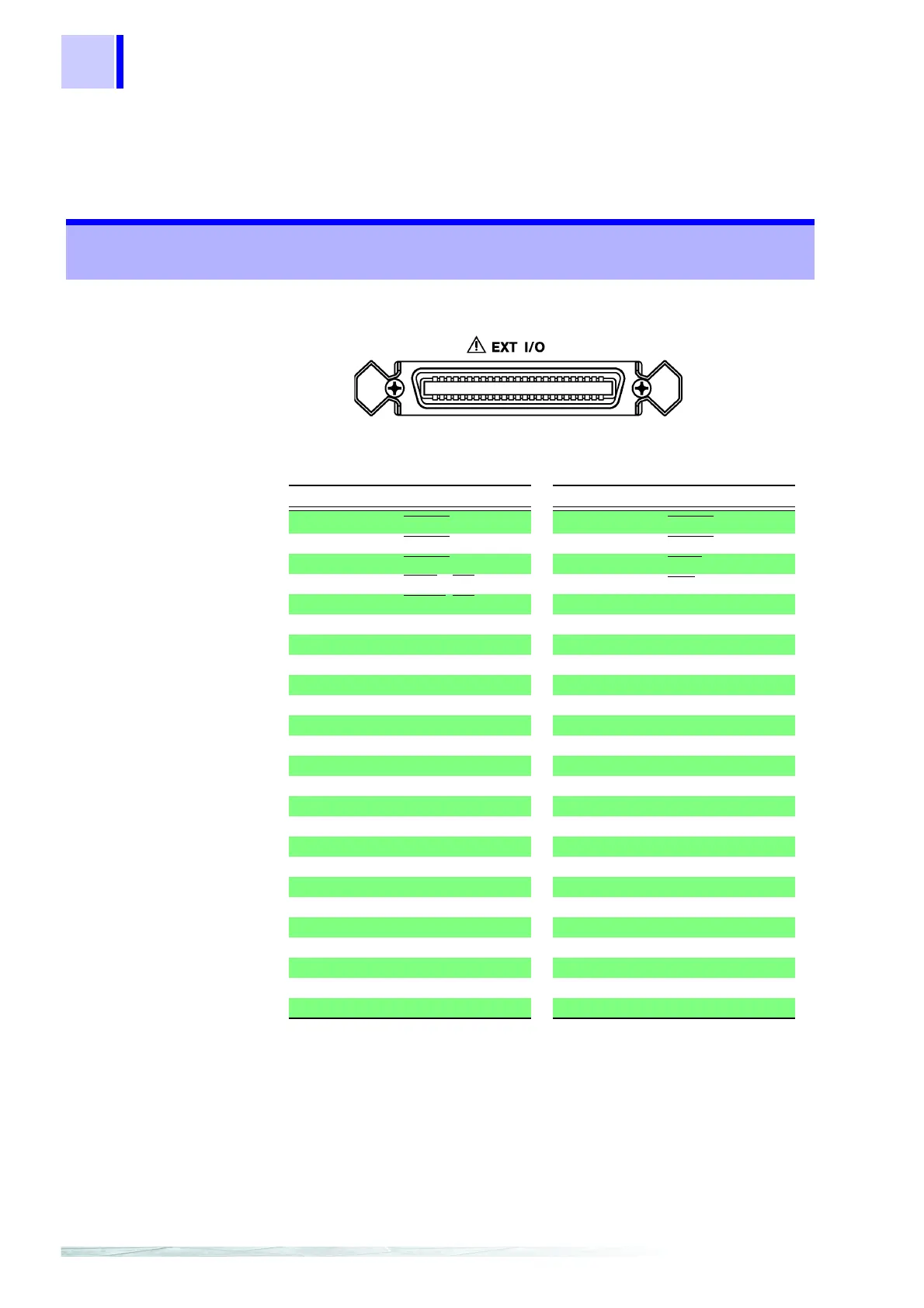

EXT I/O Connector
125
50 26
Pin I/O Signal name
1 IN LOAD0
2IN
LOAD2
3 IN
LOAD4
4IN TRIG(IN0)
5 IN PRINT (IN1)
6 INT.GND
7 INT.GND
8 INT.GND
9 INT.VCC
10 INT.VCC
11 OUT ERR
12 OUT EOC
13 OUT IN
14 OUT BIN0 (BCD1-0)
15 OUT BIN2 (BCD1-2)
16 OUT BIN4 (BCD2-0)
17 OUT BIN6 (BCD2-2)
18 OUT BIN8 (BCD3-0)
19 OUT OB (BCD3-2)
20 OUT (BCD4-0)
21 OUT (BCD4-2)
22 OUT OUT0 (BCD5-0)
23 OUT OUT2 (BCD5-2)
24 OUT OUT4 (BCD6-0)
25 OUT OUT6 (BCD6-2)
Pin
I/O Signal name
26 IN LOAD1
27 IN
LOAD3
28 IN
0ADJ
29 IN
CAL
30 − Unused
31 INT.GND
32 INT.GND
33 INT.GND
34 INT.VCC
35 INT.VCC
36 OUT INDEX
37 OUT Hi
38 OUT Lo
39 OUT BIN1 (BCD1-1)
40 OUT BIN3 (BCD1-3)
41 OUT BIN5 (BCD2-1)
42 OUT BIN7 (BCD2-3)
43 OUT BIN9 (BCD3-1)
44 OUT (BCD3-3)
45 OUT (BCD4-1)
46 OUT (BCD4-3)
47 OUT OUT1 (BCD5-1)
48 OUT OUT3 (BCD5-3)
49 OUT OUT5 (BCD6-1)
50 OUT OUT7 (BCD6-3)
