8.3 Connections and Protocol Selection
8.3.2 Communications Protocol Selection

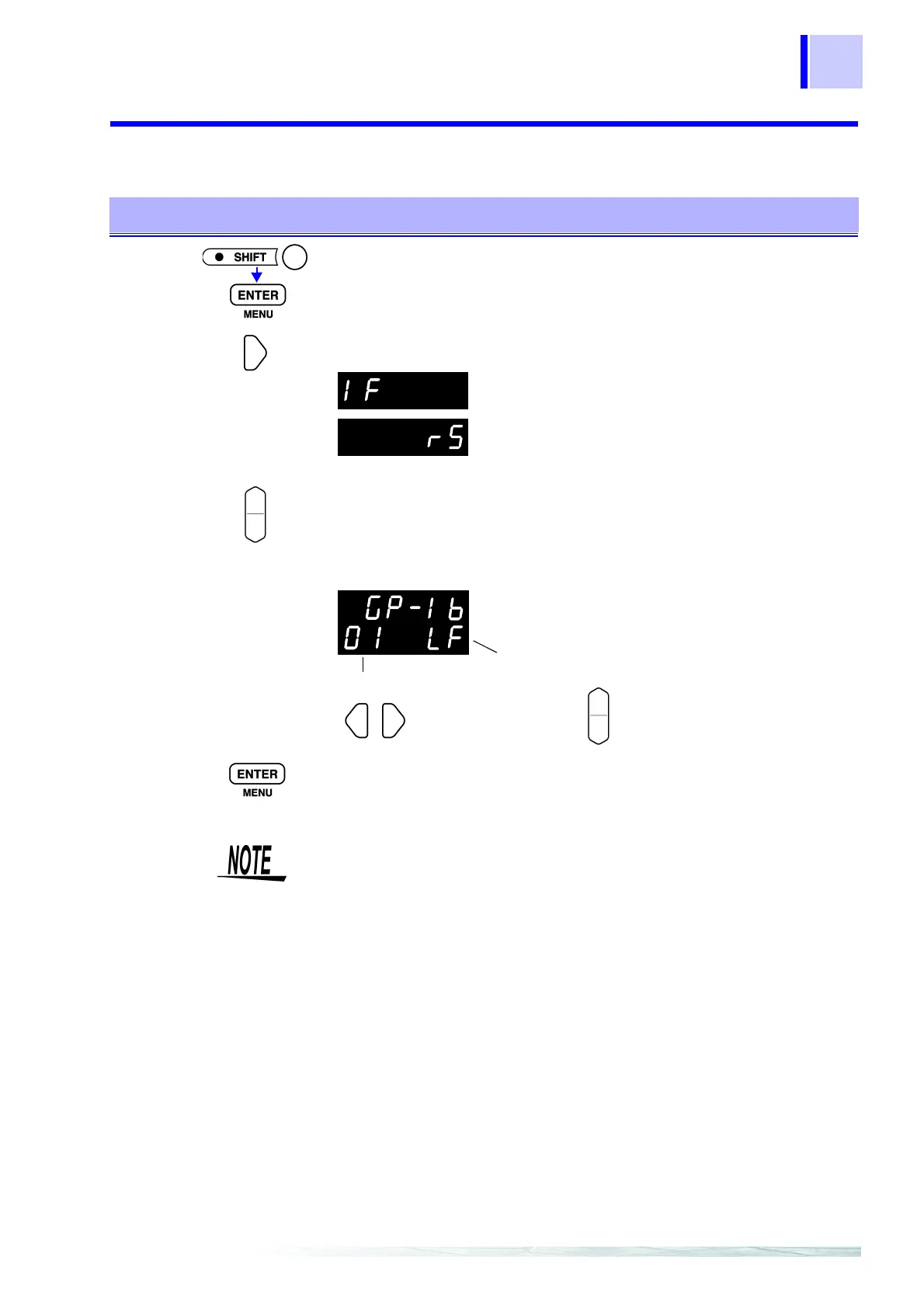

Selecting the Interface
1
(SHIFT Lamp lit)
The Menu display appears.
2
Select the Interface Selection display.
(Refer to the Menu displays (Page 15))
Select RS-232C or GP-IB on the Sub Display.
rS ......... RS-232C
GP-Ib ... GP-IB
Prn ....... Printer
When selecting GP-IB, also set the
Address and Message Terminator .
3
Applies settings and returns to the Measurement display.
While carrying out temperature measurement via the RS-232C
interface, the RS-232C/GP-IB communication functions are not
available.
❖ Temperature measurement via RS-232C interface (using the 3444/3445
TEMPERATURE HiTESTER+ 3909 INTERFACE PACK) (Page 34)
(Main Display)
(Sub Display)
(Sub Display)
Message Terminator setting (LF/CRLF)
Address setting (0 to 30)
Selects the item to set
Setting
