5.1 Comparator Measurement Function
Function
Description
The comparator function compares measured values to preset upper
and lower thresholds, judges the measurements according to their
relative levels within the preset range, and indicates the results of the
comparisons.
Comparator results can be indicated by the Hi, IN and Lo LEDs, beeper
sound and signal output at the EXT I/O connector.
❖ For details about comparator signal outputs at the EXT I/O connector,
refer to Chapter 6 External Control (Page 77).
Applied Function
Settings Chapter 5
5.1 Comparator Measurement Function
Setting upper and lower thresholds to judge measured values
(Comparator Measurement Function)
Example:Within the 2 kΩ range, set the upper threshold to 1 kΩ and the lower
threshold to 800 Ω, and judge whether measured values exceed the upper or lower
threshold.

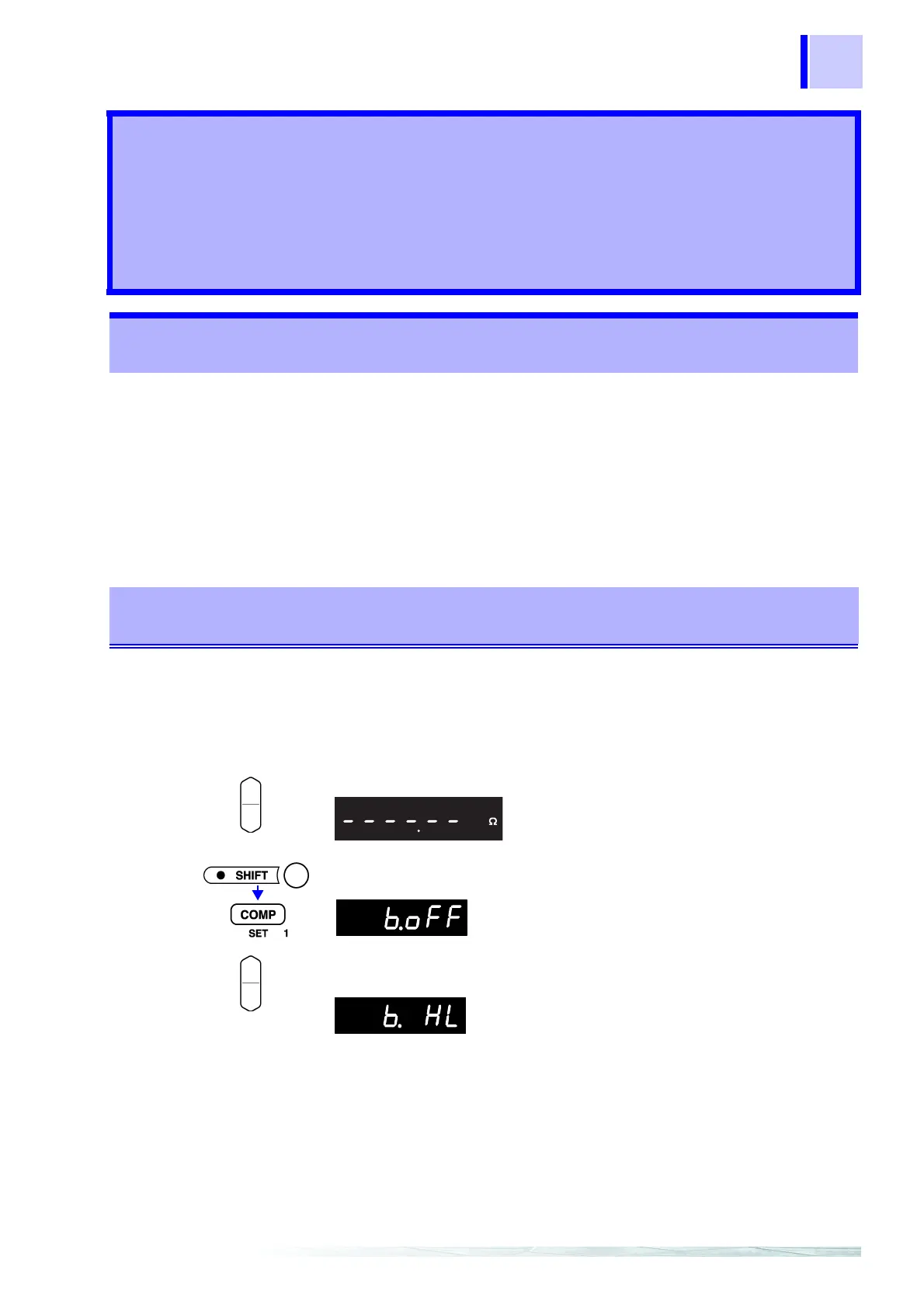

1
(COMP off)
Confirm that the Comparator Measurement function is OFF.
2
Select the appropriate range.
3
(SHIFT Lamp lit)
The Comparator Beeper setting display appears. (COMP lit)
4
Select whether and how the beeper should sound according to
decision results.
oFF
....... no beeps sound.
In .......... Beeps when the decision result is IN.
HL......... Beeps when the decision result is Hi or Lo.
(Main Display)
In this case, select the 2 kΩ range.
(2000.00 Ω)
(Main Display)
(Main Display)
In this case, select HL.
