Hioki 3541 - Connecting the Temperature Hitester Via RS-232 C

23
2.6 Connecting the Temperature HiTester via RS-232C
Using the RS-232C interface, you can connect the HIOKI 3444/ 3445
TEMPERATURE HiTESTERs to the unit for temperature measurement.
The connection requires the 9637 RS-232C CABLE (option).
• The Model 3444 TEMPERATURE HiTESTER (for long-focus,
narrow-visual-field measurements) + 3909 INTERFACE PACK
• The Model 3445 TEMPERATURE HiTESTER (for short-focus,
microscopic surface measurements) + 3909 INTERFACE PACK

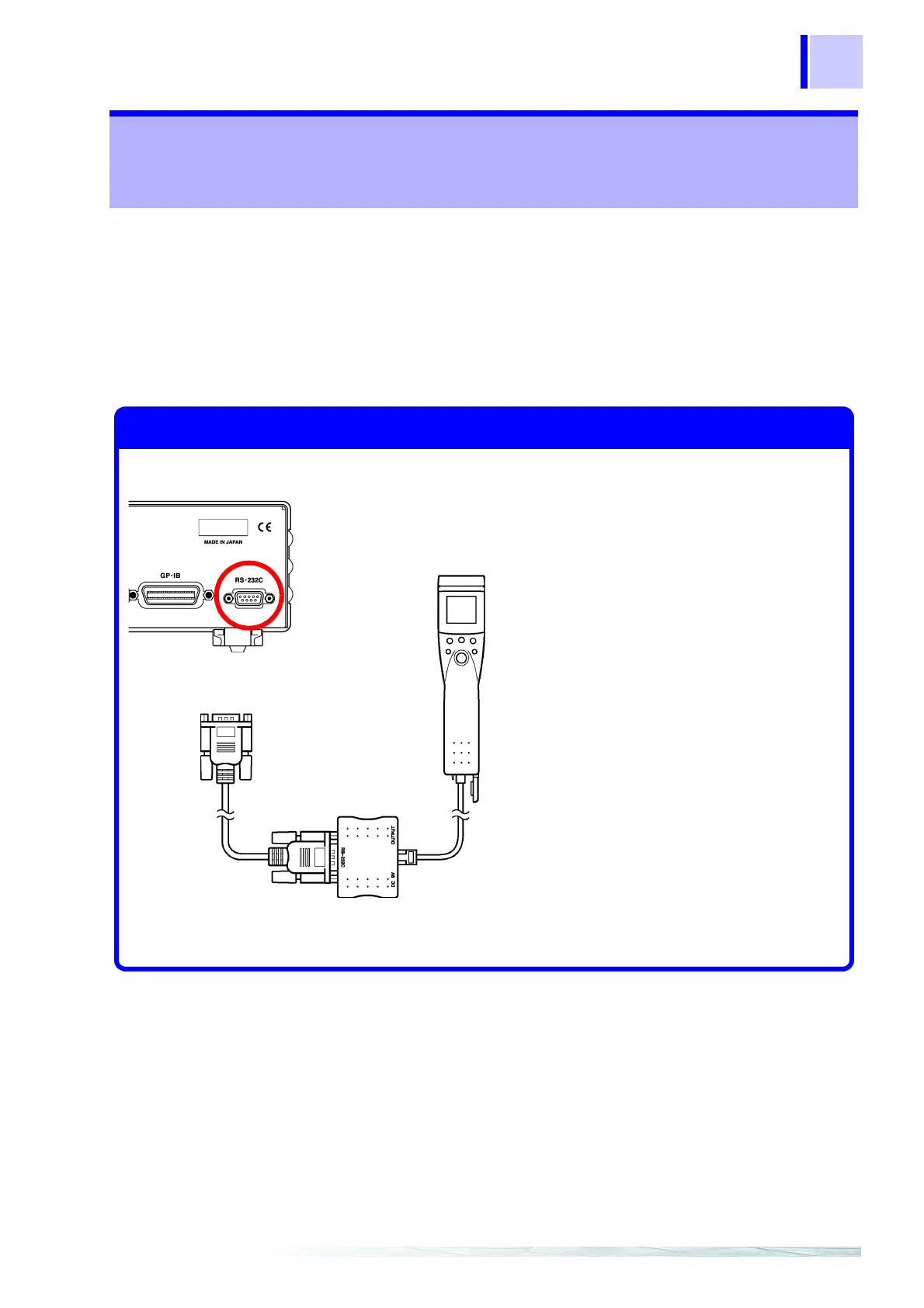

2.6 Connecting the Temperature HiTester
via RS-232C
Rear panel
Connection Method
1. Confirm that power to the 3541 is
turned OFF.
2. Connect the TEMPERATURE
HiTESTER (3444 or 3445) to the
3909 INTERFACE PACK, using the
cable supplied with the 3909.
3. Connect the 3909 INTERFACE
PACK to the RS-232C connector of
the 3541, using the 9637 RS-232C
CABLE.
3909 INTERFACE PACK
RS-232C connector
3444 TEMPERATURE
HiTESTER
9637 RS-232C CABLE
