1.3 Names and Functions of Parts
14

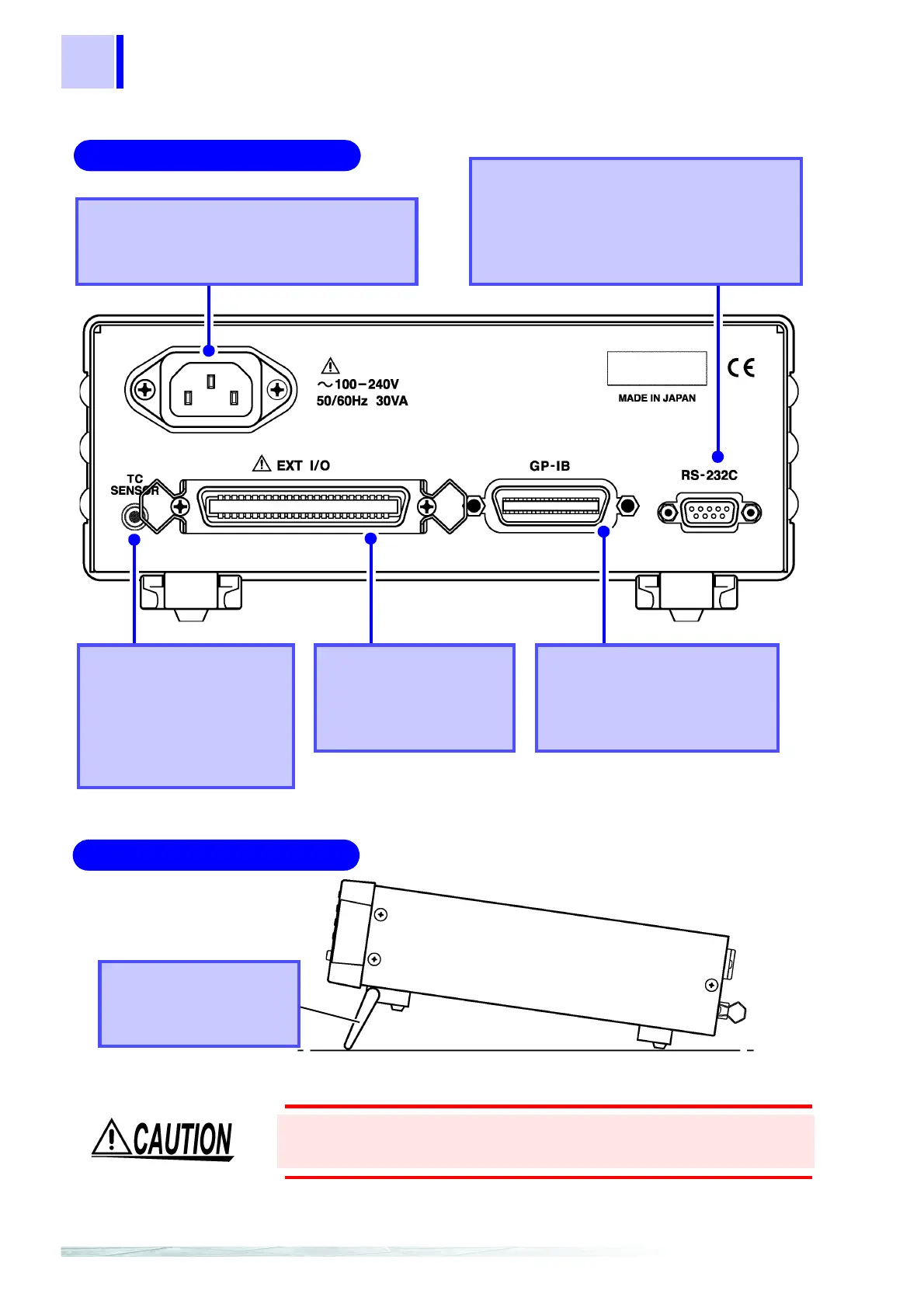

Rear Panel
TC SENSOR Jack
Connect the 9451
TEMPERATURE PROBE
or an analog-output
thermometer here.
❖ (Page 21, 22)
EXT I/O Connector
Connect here to control
operation externally.
❖ (Page 77)
GP-IB Connector
Connect here to use the GP-
IB interface.
❖ (Page 97)
Power Inlet
Connect the supplied power cord here.
❖ (Page 18)
RS-232C Connector
Connection for the printer or RS-232C
interface.
❖ Printer (Page 88), RS-232C (Page 97),
Temperature HiTester (Page 23)
Side View
Stand
Can be opened to tilt
the front panel upwards.
Do not apply heavy downward pressure with the stand extended. The
stand could be damaged.
