88

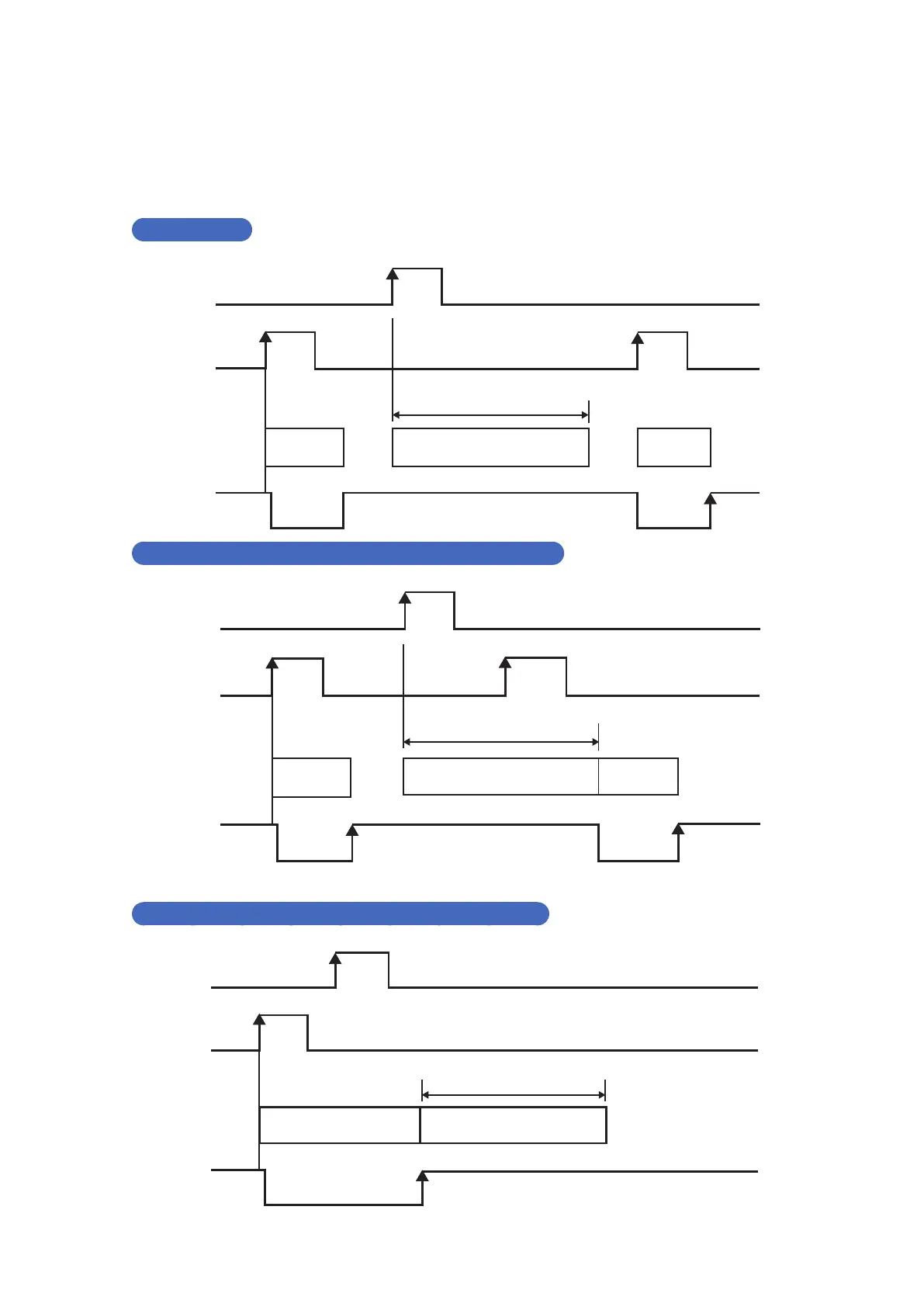

Timing Chart
Operation when the self-calibration setting is [MANUAL]
The CAL signal is input, and the self-calibration is started immediately.
Even if the TRIG signal is input during the self-calibration, the self-calibration is continued. In this case, the
trigger signal is held and then the measurement is started after the completion of the self-calibration. When the
CAL signal is input during the measurement, the CAL signal is held and then the self-calibration is started after
the completion of the measurement.
Normal usage
OFF
OFF
ON
ON ON
CAL
TRIG
Measurement
processing
EOM
ON
ON
Self-Calibration
During mea-
surement
During mea-
surement
210 ms
When the TRIG signal is input during the self-calibration
EOM
OFF
ON
ON
OFF
CAL
TRIG
Measurement
processing
ON ON
ON
Self-Calibration
During mea-
surement
During mea-
surement
210 ms
When the CAL signal is input during the measurement
EOM
ON
OFF
CAL
TRIG
Measurement
processing
ON
Self-Calibration
During measurement
210 ms
ON
