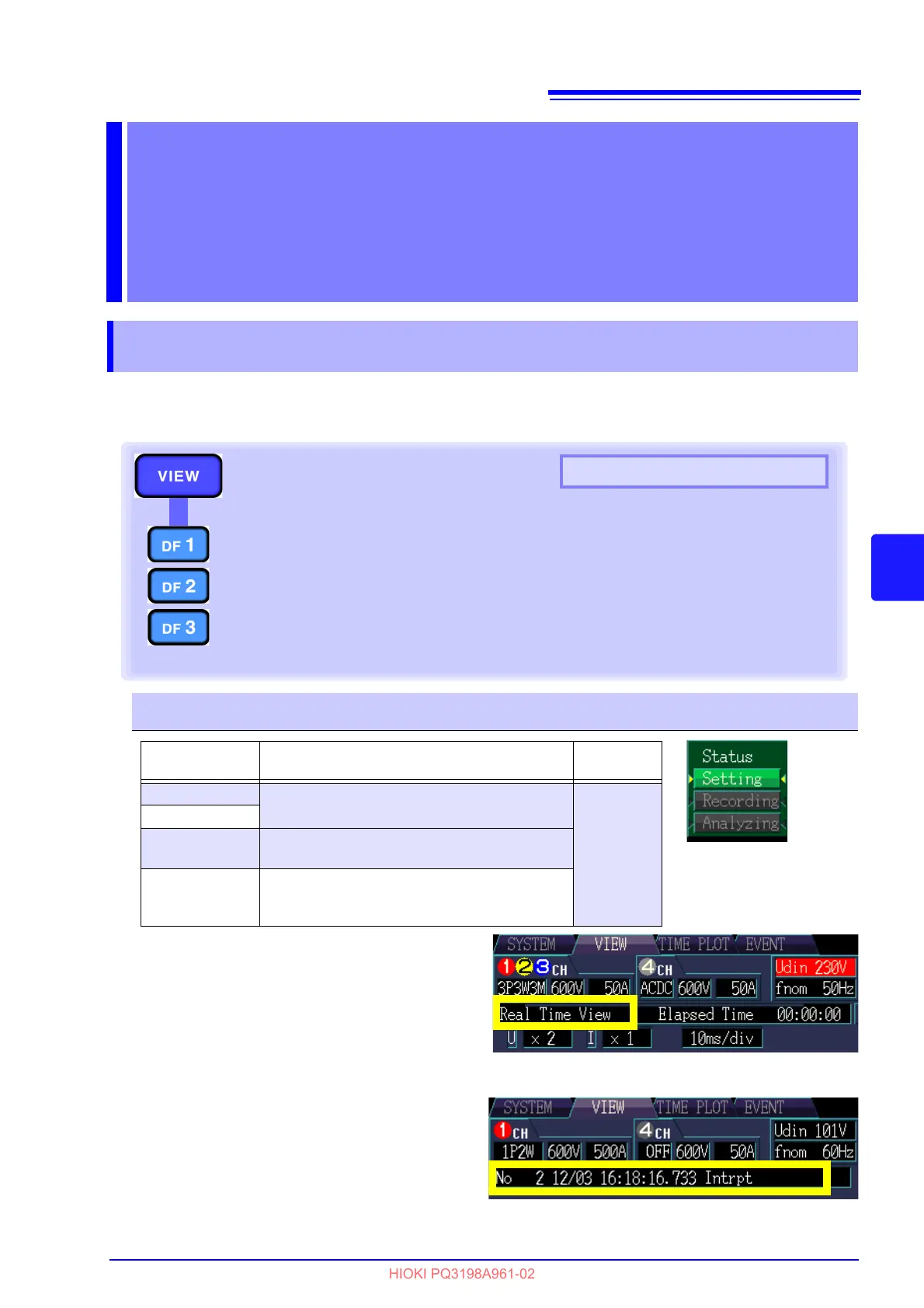

6.1 Using the VIEW screen
95
Chapter 6 Monitoring Instantaneous Values (VIEW Screen)
6
The VIEW screen is composed of a number of screens corresponding to the DF1 to DF4 (DF: dis-
play function) keys. When you press a DF key, the screen corresponding to that key appears.
Ea
ch time you press the same DF key, the display changes.
Normal screen display:
Displays the current measurement screen.
Note: [W
aiting]
From the time the ST
ART/STOP key is pressed
until measurement actually starts, settings are
shown as [Waiting]. Settings are also shown as
[Waiting] when measurement has been stopped
due to use of repeated recording.
Screen display after an event is selected:
This screen is shown when an event is selected on
the [EVENT] screen in [Analyzing] mode. As
shown in the screenshot to the right, the event num-
ber, time and date, and type are displayed.
See:"8.3 Analyzing the Measurement Line Status
When Events Occur" (p.145)
Monitoring Instantaneous Values
(VIEW Screen) Chapter 6
6.1 Using the VIEW screen
VIEW screen selector
Waveform
See: "6.2 Displaying Instantaneous Waveforms" (p.96)
Harmonics
See: "6.3 Displaying Phase Relationships ([VECTOR] Screen)" (p.100),
"6.4 Displaying Harmonics" (p.103)
DMM
See: "6.5 Displaying Measured Values Numerically (DMM Screen)" (p.109)
Switching screen display
About screen configuration (p.31)
The screen shown varies with the instrument's internal operating state.
Internal oper-
ating state
Display
Display
update
[Setting]
Contents of the display update during setting.
Approxi-
mately
1 second
[Waiting]
[Recording]
Contents of the latest display update during
measurement.
[Analyzing]
Contents of the display update during analysis,
or conten
ts at the moment an event selected in
[EVENT] screen occurs.
To Next Page
