8.4 Analyzing Transient Waveforms
147
Chapter 8 Checking Events (EVENT screen)
8
• The transient waveform consisting the fundamental component 50 Hz/60 Hz from a waveform sampled
at 2 MHz.
• The transient value measured from the waveform obtaine
d by eliminating the fundamental component
50 Hz/60 Hz from having a sampled waveform pass through a highpass filter (fc = 5 kHz).
• Since voltage waveform display data reduced to 20 kS/s, the effect from a transient waveform may not
be
reflected to the voltage waveforms.

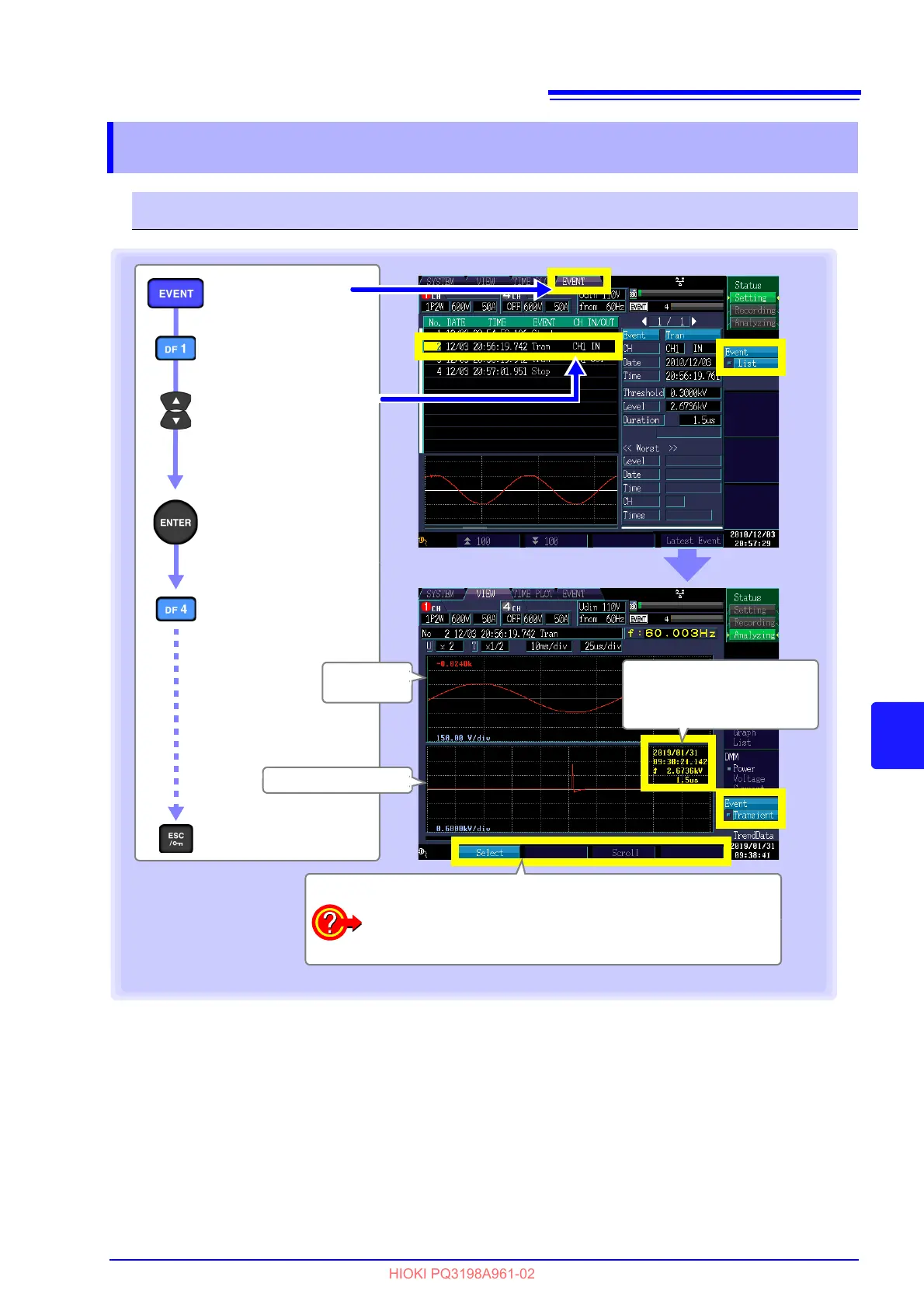

8.4 Analyzing Transient Waveforms
Displaying transients
Accept setting
The display will switch to the
[VIEW] screen, and the
waveform at the time of the
event will be displayed.
Select an event for
which “Tran” is
shown on the
event list or event
details list
Return to event list
[Event] screen
[Event]
[List]
Year, month, day; time;Rising
transient voltage value ; and
duration of transient
[Transient]
Voltage/Transient waveforms display
Voltage
Waveform
Transient waveform
To enlarge or reduce the transient waveform (p.148)
To scroll transient waveform data (p.149)
Select with the F key.
To Next Page
