4.3 Configuring the Connection Mode and Current Sensors
55
Chapter 4 Configuring the Instrument before Measurement (SYSTEM - SYSTEM screen) and
Wiring
4
(1) Single-circuit measurement
1P2W
1P3W

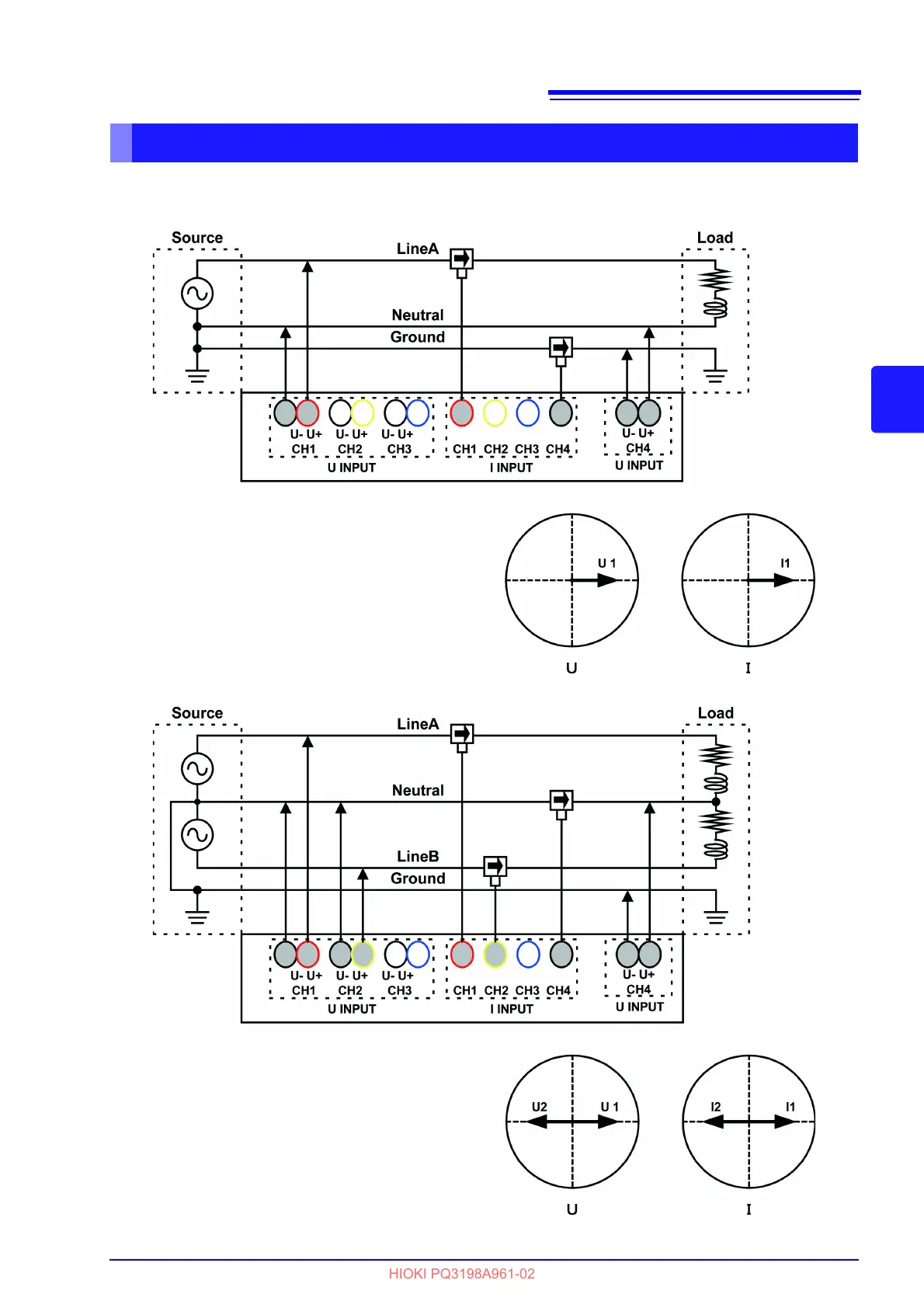

Connection diagram
The vector diagram shows the measure-
ment line in its ideal state.
The vector diagram shows the measure-
ment line in its ideal (balanced) state.
The L1021-01, L1021-02 Patch Cord can be
used to consolidate two cords being connected
to the same phase into a single cord.
To Next Page
