Hioki PQ3198 - Chapter 2 Names and Functions of Parts Basic Operations & Screens; Names and Functions of Parts

2
2.1 Names and Functions of Parts
23
Chapter 2 Names and Functions of Parts Basic Operations & Screens
Names and Functions of Parts
Basic Operations
& Screens Chapter 2

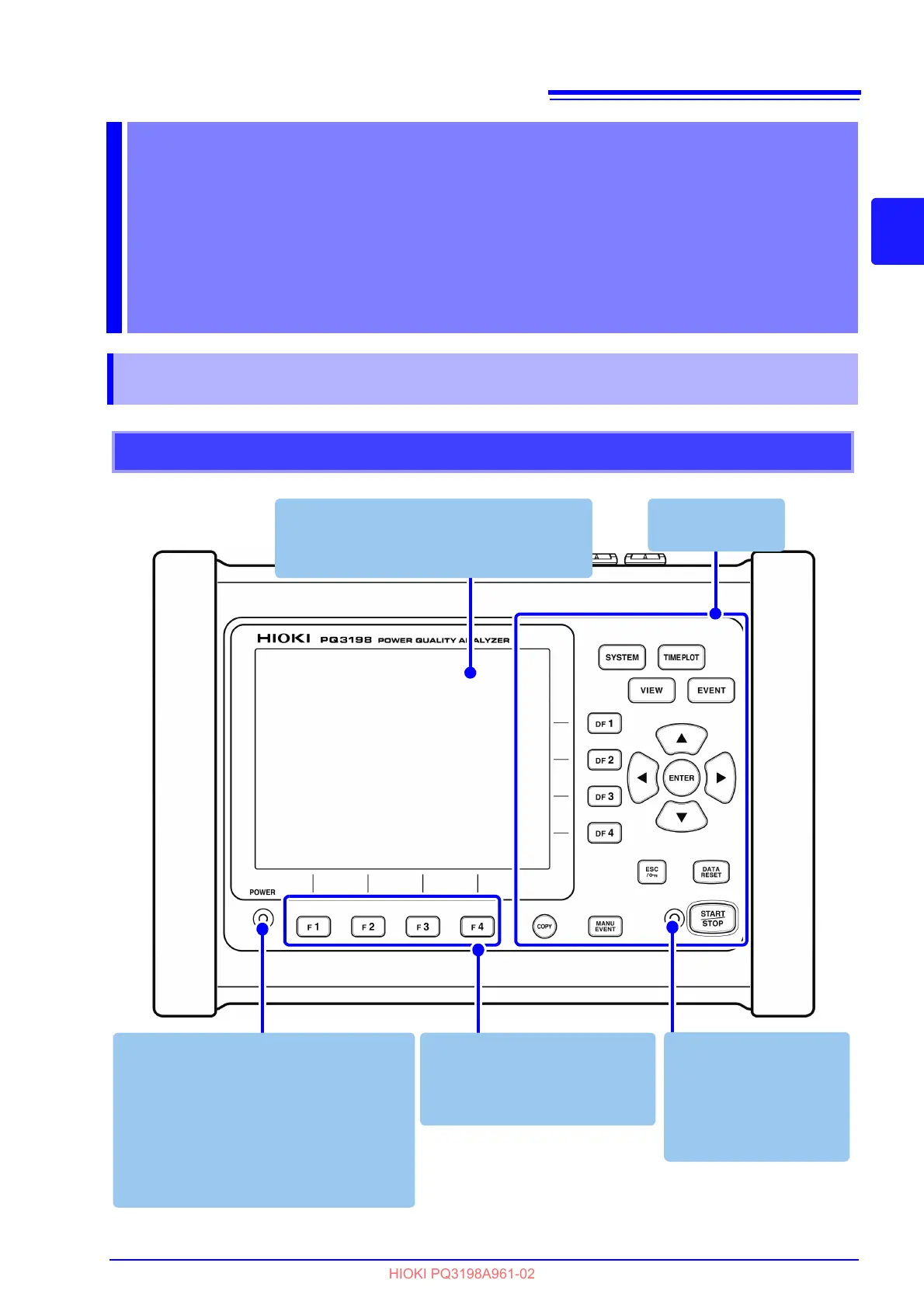

2.1 Names and Functions of Parts
Display
6.5" TFT color LCD display
See: "Display Items and Screen Types" (p.28)
Front
F key (Function key)
Select and change display con-
tents and settings.
See:"2.2 Basic Operations" (p.27)
Operation keys
See:(p.24)
POWER LED
Lights up when the
POWER switch is
turned on and power is supplied to the in-
strument.
Normal operation: Solid green
When using battery pack: Solid red
See: "3.8 Turning the Power On and Off (Set-
ting the Default Language)" (p.48)
START/STOP LED
When in the recording
standby state:
Flashing green
When recording:
Solid green
HIOKI PQ3198A961-02
