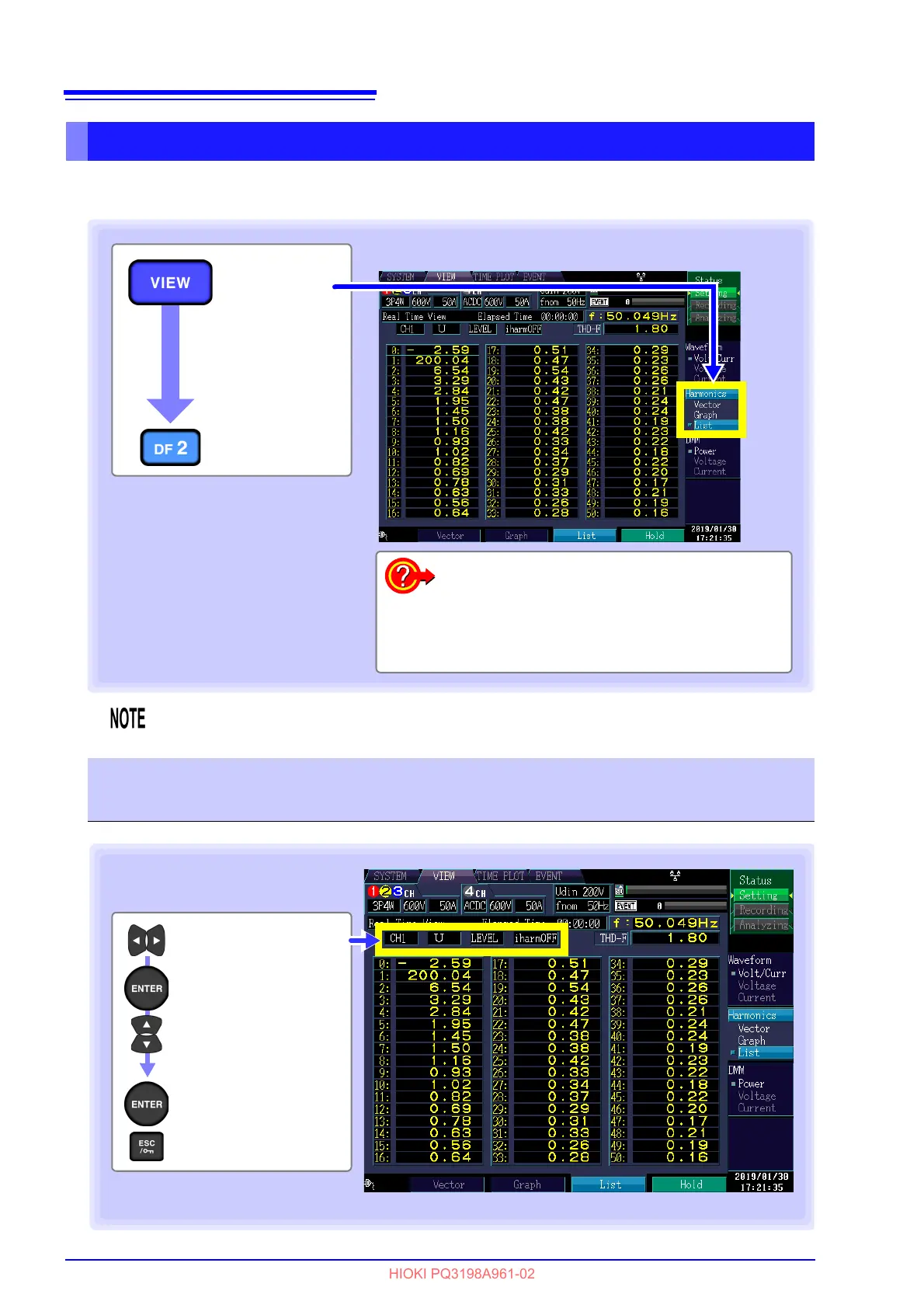

6.4 Displaying Harmonics
106
The 1st to 50th harmonic orders and 0.5 to 49.5 inter-harmonic orders are displayed in a list for the
selected item.
Displaying harmonics as a list
[VIEW]
screen
[Harmonics]
[List]
To change the displayed channels (p.104)
To change the displayed items (p.104)
To change the RMS value/phase angle display
(p.104)
To display inter-harmonics (p.105)
Example: 3P3W3M Wiring
When the 400 Hz measurement frequency is selected, harmonic analysis is performed up
to the 10th order, and inter-harmonic analysis is not available.
Changing the display channels, items, RMS value, phase angle, inter-
harmonics
Display the
pull-down menu
Select a setting
Accept setting
Cancel
Select a setting
To Next Page
