8.2 Displaying the Event List
141
Chapter 8 Checking Events (EVENT screen)
8
Displays events in a list.
• Information that is recorded as th
e event includes the start, stop, the PQ3198 message, and event
parameters set in the [SYSTEM] screen.
• Up to 9999 events can be displayed, numbered from 1 to 9999.
• When events with multiple differing parameters occur during the same approximately 200 ms period,
th
ey are displayed together as a single event. A list of the multiple parameters is shown to the right.
8.2 Displaying the Event List

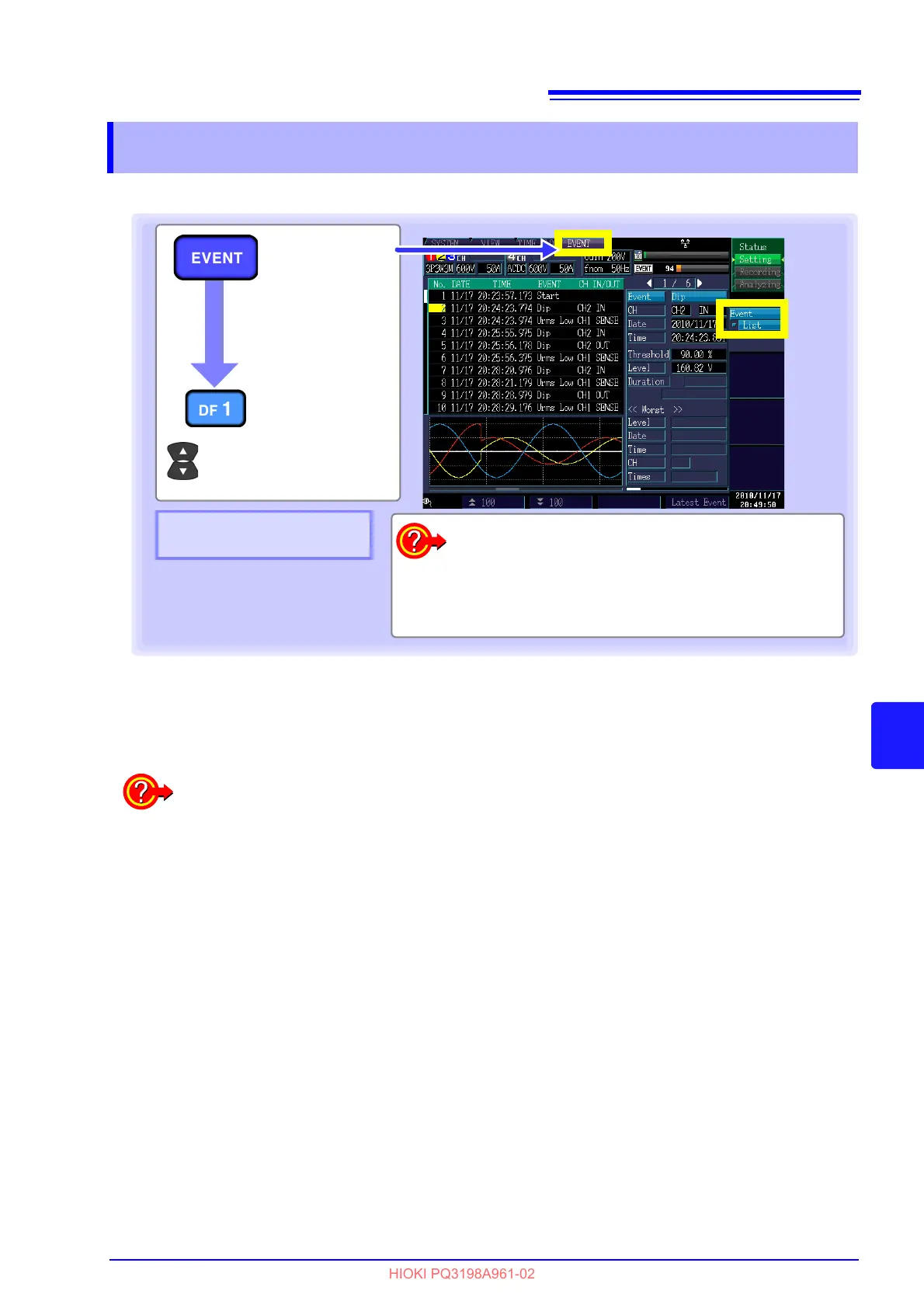

[Event] screen
[Event]
[List]
To analyze the state when the event occurred (p.145)
(Available only in [Analyzing] mode.)
To analyze the transient waveform (p.147)
To view high-order harmonic measured values (p.150)
To check fluctuation data (p.153)
Scroll the event list up
and down
See: "Event items, list notation,
and saved items" (p.143)
Operation when there are too many events
When the event count reaches 9999, the instrument will continue to save time plot data but
stops saving event data.
