9.3 Save Operation and File Structure
161
89
Chapter 9 Data Saving and File Operations
(SYSTEM-MEMORY screen)
9
9.3 Save Operation and File Structure

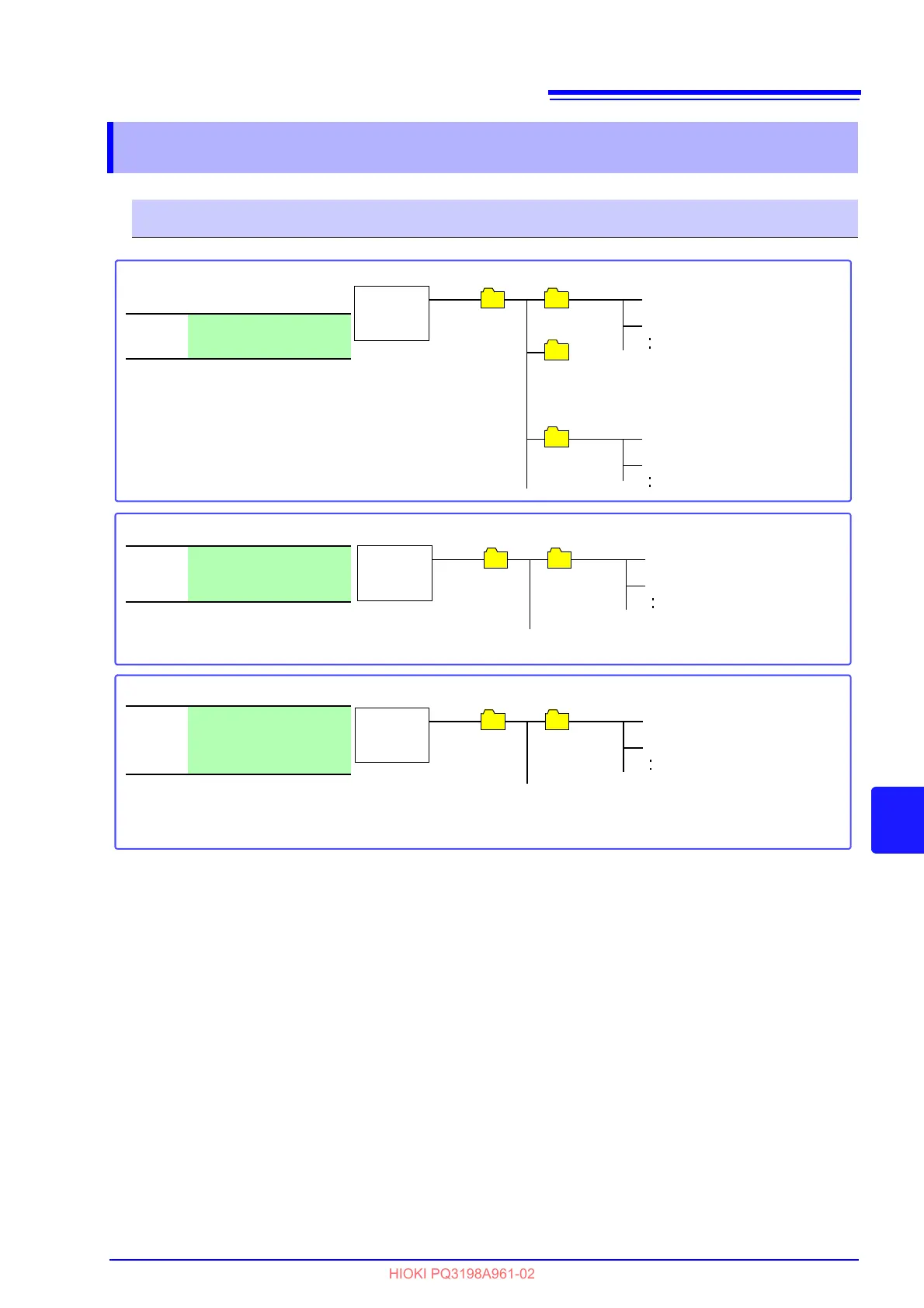

Save operation
Saving measurement data (p.163)
Saving
method
Data is automatically saved
according to the time control
settings.
PQ3198
TP0000.ITV
TP0001.ITV
• When the file size exceeds 100 MB, the instrument will
create a new file and continue saving data to it.
• The instrument will stop saving data once the SD
memory card is full.
• Up to 204 files can be displayed on the [List] screen.
• Up to 100 measurement data files can be created on a
single date.
SD
memory
card root
19010100
19010101
TP0000.ITV
19010200
TP0001.ITV
Figure: Time series measurement normal data files
TP0204.ITV
Saving
method
Press the COPY key while
the screen you wish to save
is being displayed.
Saving screen copies (p.166)
• Up to 102 files can be displayed on the [Hardcopy]
screen.
PQ3198
SD
memory
card root
HARDCOPY
Saving
method
Move to the folder in which
you wish to save the data on
the SD memory card screen
and press the F2 key.
Saving settings data (p.167)
• Up to 102 files can be displayed on the [Setting]
screen.
PQ3198
00000000.SET
00000001.SET
00000102.SET
SD
memory
card root
SETTING
