4.3 Configuring the Connection Mode and Current Sensors
53
Chapter 4 Configuring the Instrument before Measurement (SYSTEM - SYSTEM screen) and
Wiring
4
This section describes how to configure the connection mode and current sensors appropriately
for the measurement line being analyzed.
Eight wiring modes are available.
4.3 Configuring the Connection Mode and
Current Sensors

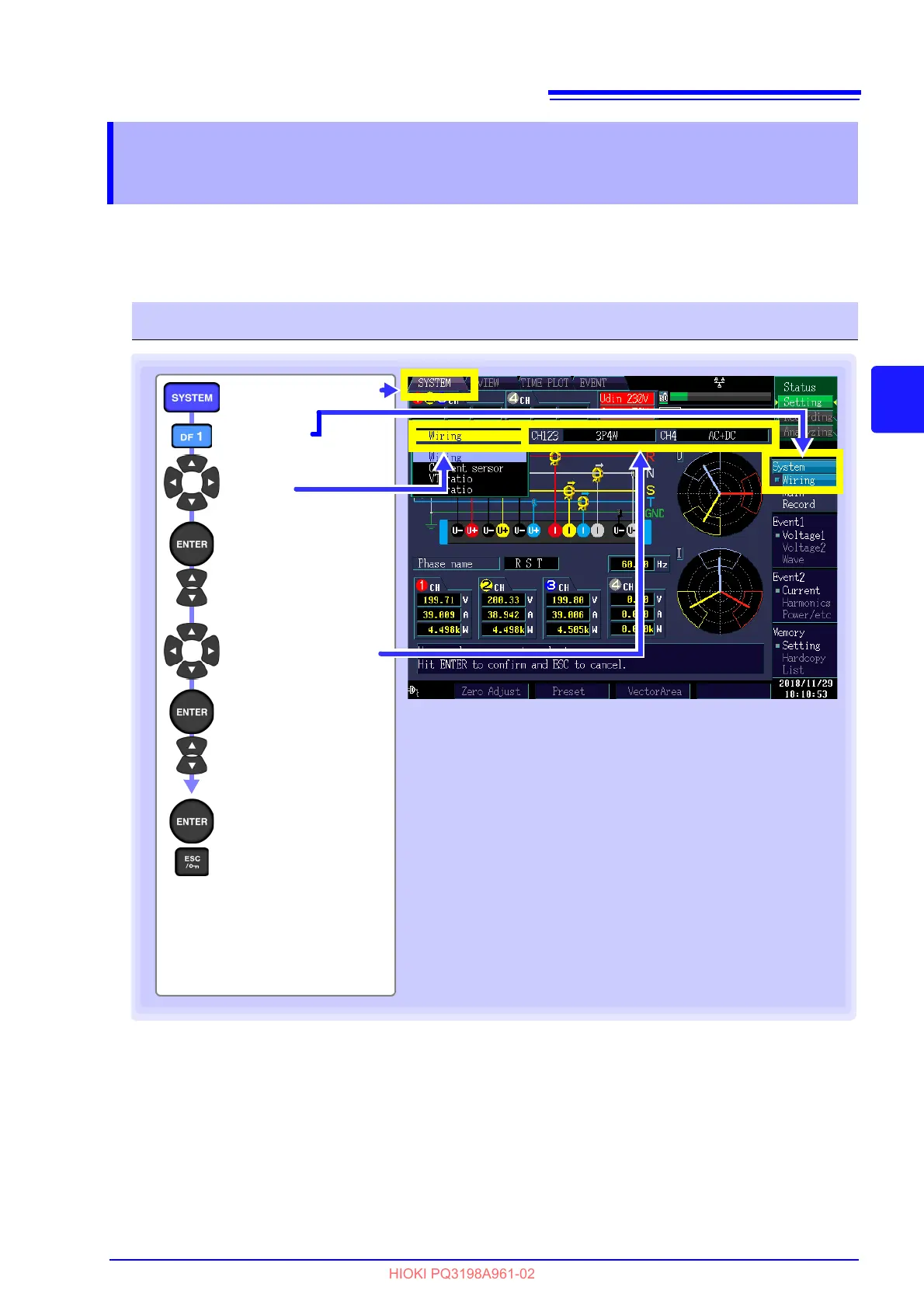

To select the wiring mode
Display the
pull-down menu
Select
[Wiring]
Accept setting
Cancel
[SYSTEM] screen
Move
[Wiring]
Accepting the settings will cause a
connection diagram for the selected
connection mode to be displayed.
Accepting the selection displays the
wiring diagram of the selected wiring
mode. (p.55)
Display the
pull-down menu
Select the
connection mode
[CH123], [CH4]
