4.3 Configuring the Connection Mode and Current Sensors
54
*: Pressing the F4 [Sensor] key will automatically configure the current sensor.
However, current sensors that have been c
onnected using the L9910 Conversion Cable will not be
automatically configured. These sensors will need to be manually configured.

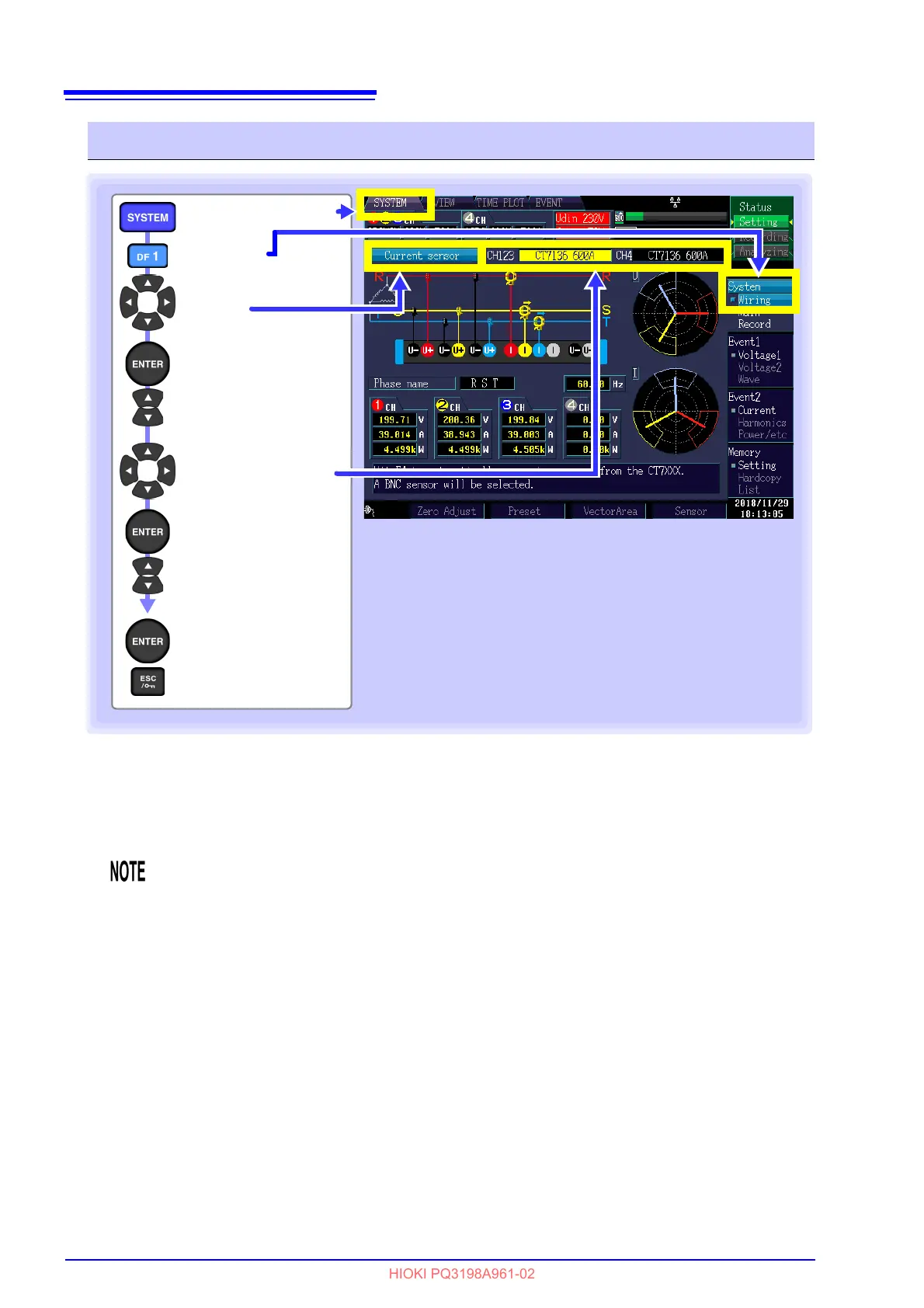

Configuring the current sensors
Display the
pull-down menu
Select [Current
sensor]
Accept setting
Cancel
[SYSTEM] screen
Move
[Wiring]
Display the
pull-down menu
Select the
current sensor
[CH123], [CH4] *
To measure multiphase power, use the same type of current sensor on each phase
line. For example, to measure 3-phase 4-wire power, use the same model current sen
-
sors on channels 1 to 3.
To Next Page
