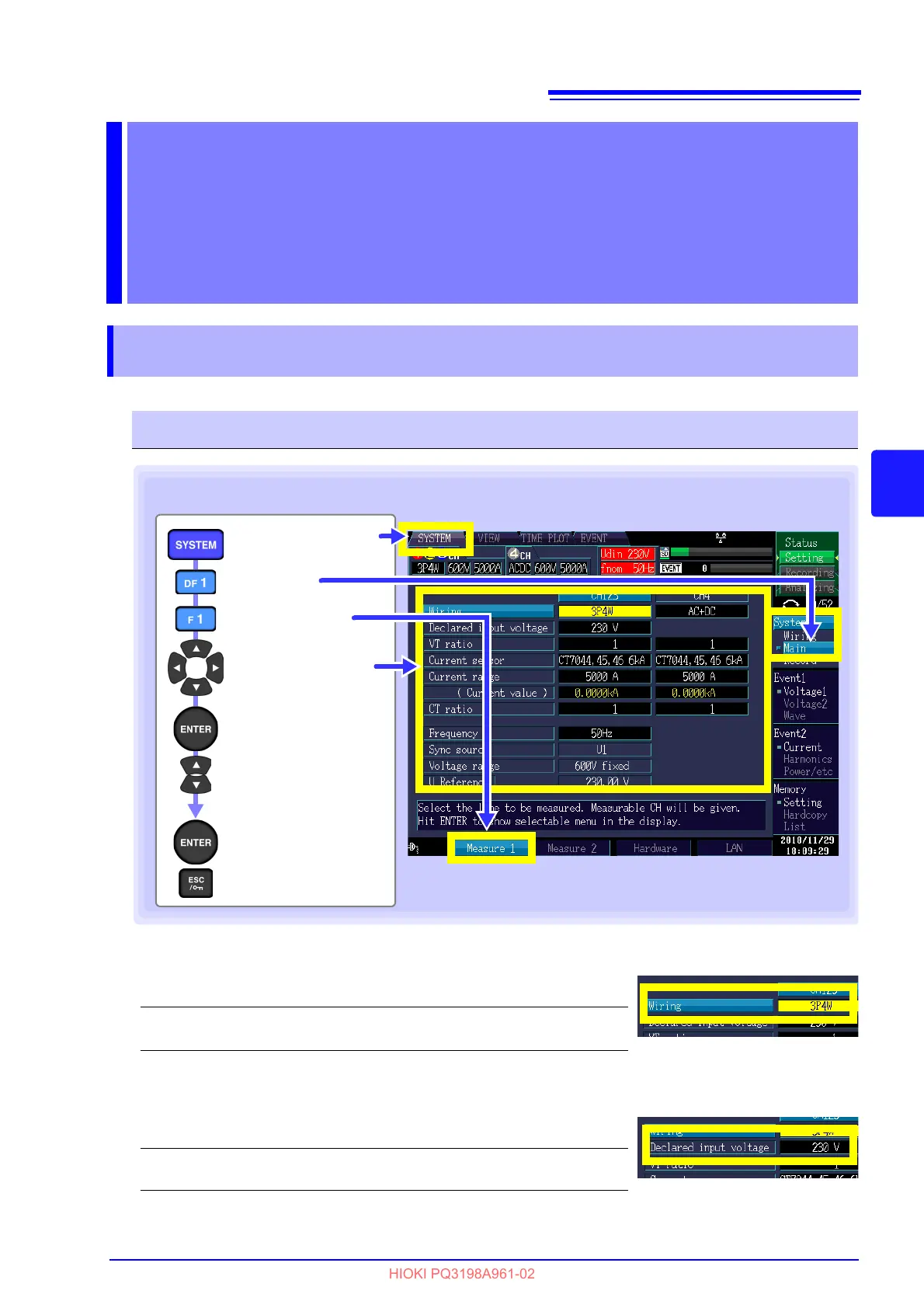

5.1 Changing Measurement Conditions
71
Chapter 5 Changing Settings (as necessary)
5
Wiring
Selects the measurement line.
Declared input voltage
Selects the nominal input voltage (Udin) for the measurement line.
Changing Settings
(as necessary) Chapter 5
5.1 Changing Measurement Conditions
Measure 1
Display the
pull-down menu
Select a setting
Accept setting
Cancel
[Main]
[SYSTEM] screen
Select a setting
Key operation during configuration
[Measure 1]
Setting Contents:( ∗ : Default setting)
CH1,2,3: 1P2W/1P3W/3P3W2M/3P3W3M/3P4W∗/3P4W2.5E
CH4: AC+DC
∗/DC/OFF
Setting Contents:( ∗ : Default setting)
100/101/110/120/127/200/202/208/220/230∗/240/277/347/380/400/415/480/
600/VARIABLE (set from 50 V to 780 V in 1 V increments)
