8.4 Analyzing Transient Waveforms
148
Y-axis range
To reduce the waveform, increase the voltage value per division.
To enlarge the waveform, reduce the voltage value per division.
X-axis range (Tdiv)
(left: voltage waveform range; right: transient waveform range)
Selects the X-axis scale.

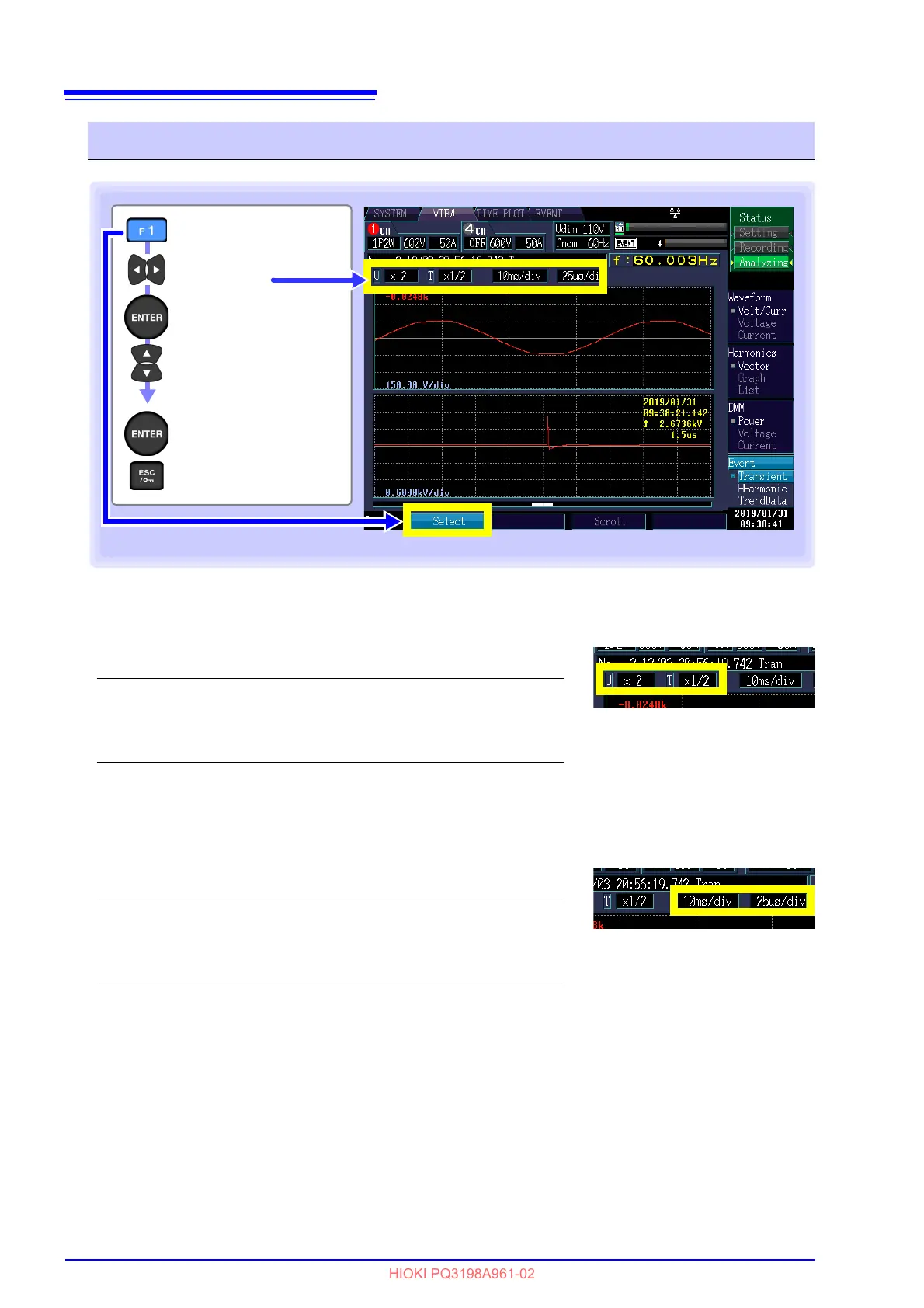

Enlarging and reducing the transient waveform
Display the
pull-down menu
Select a setting
Accept setting
Cancel
[Select]
Select a setting
Setting Contents:( ∗ : Default setting)
Voltage waveform range (U)
x1/3, x1/2, x1
∗, x2, x5, x10, x20, x50
Transient waveform range (T)
x1/2
∗, x1, x2, x5, x10, x20
Setting Contents:( ∗ : Default setting)
Voltage waveform range:
5ms/div∗, 10ms/div, 20ms/div, 40ms/div
Transient waveform range:
25μs/div∗, 50μs/div, 100μs/div, 200μs/div, 400μs/div
