8.4 Analyzing Transient Waveforms
149
Chapter 8 Checking Events (EVENT screen)
8
You can check all waveform data by scrolling the waveform horizontally.

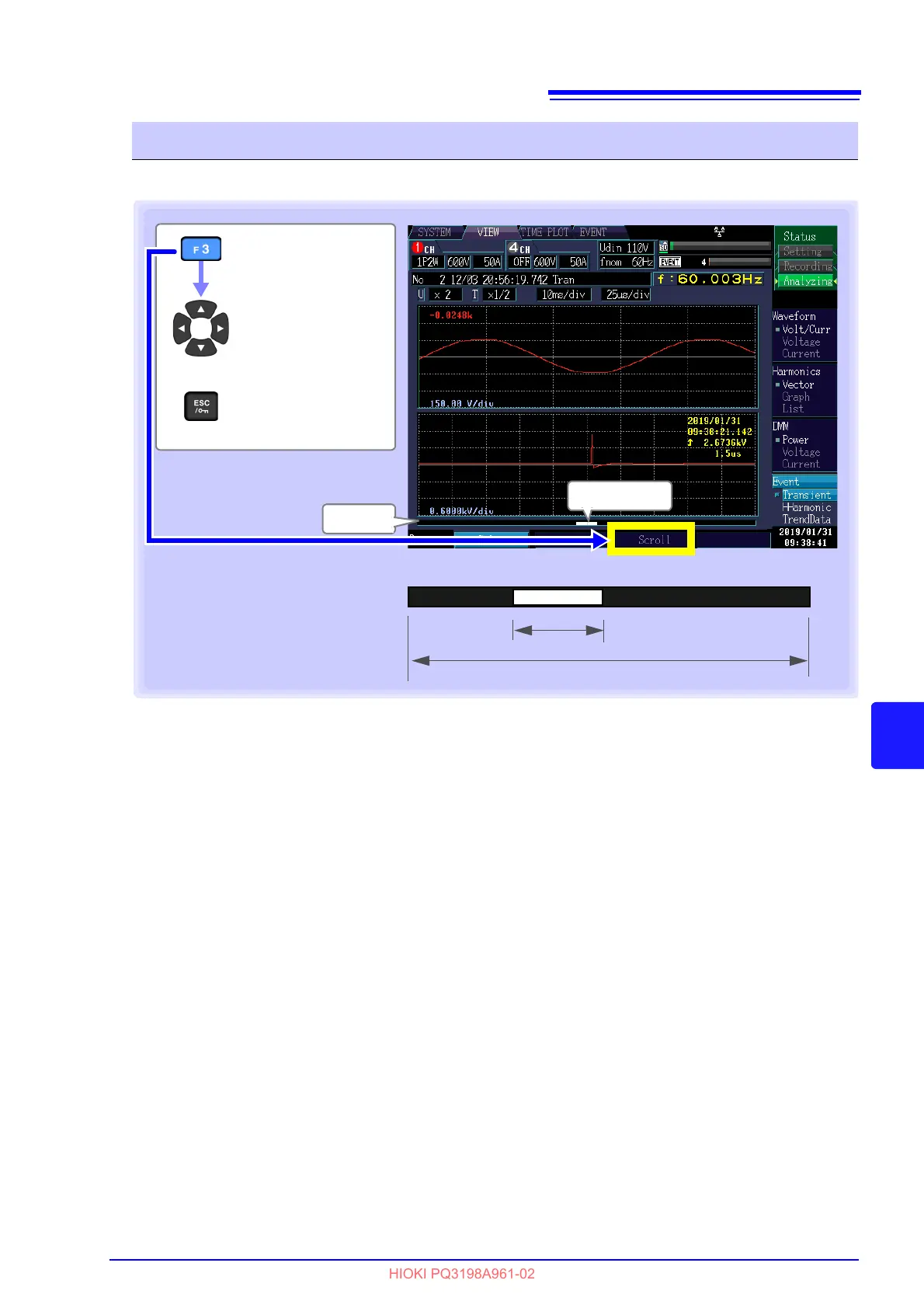

Scrolling the transient waveform
[Scroll]
Scroll the
waveform
Scroll bar
Scroll bar
Display scope
All measurement data
The display scope on the scroll bar
(shown in white) illustrates which
range of all measurement data is
being shown on the screen.
Display scope
Return to
event list
