6.2 Displaying Instantaneous Waveforms
97
Chapter 6 Monitoring Instantaneous Values (VIEW Screen)
6
Y-axis scale (U: Voltage, I: Current)
To reduce the graph, decrease the scale.
To enlarge the graph, increase the scale.
The scale can also be changed without using the pull-down menu by
p
ressing the up and down cursor keys.
X-axis scale
To reduce the graph, decrease the scale.
To enlarge the graph, increase the scale.
The scale can also be changed without using the pull-down menu by
p
ressing the up and down cursor keys.

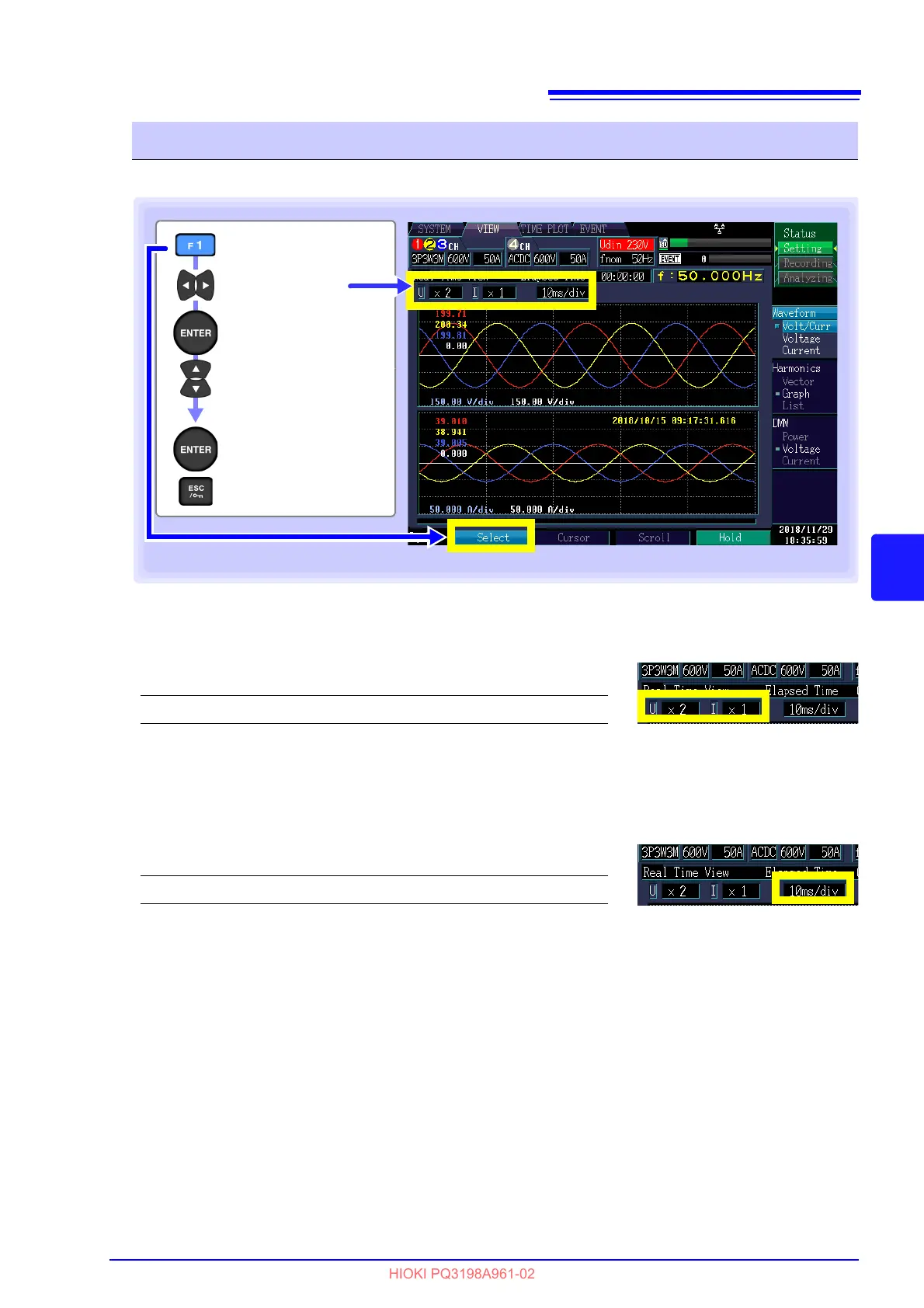

Reduce or enlarge the waveform (changing the X- and Y-axis scale)
Display the
pull-down menu
Select a setting
Accept setting
Cancel
[Select]
Select a set-
ting
Setting Contents:( ∗ : Default setting)
×1/3, ×1/2, ×1∗, ×2, ×5, ×10, ×20, ×50
Setting Contents:( ∗ : Default setting)
5ms/div∗, 10ms/div, 20ms/div, 40ms/div
To Next Page
