8.5 Viewing High-order Harmonic Waveforms
151
Chapter 8 Checking Events (EVENT screen)
8
Y-axis scale (U: Voltage, I: Current)
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
X-axis scale
Selects the X-axis scale.
The scale can also be changed without using the pull-down menu by
p
ressing the up and down cursor keys.

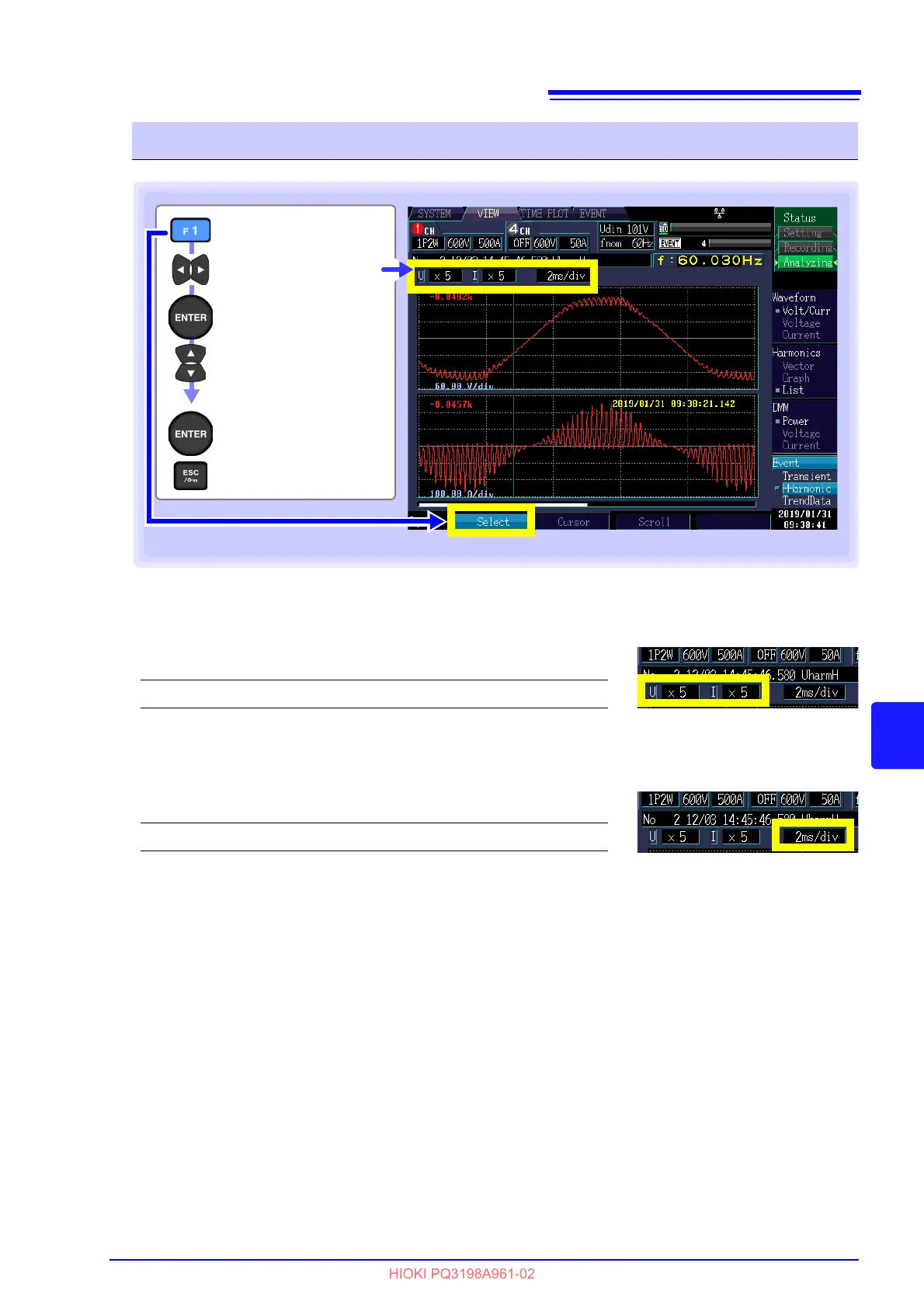

Enlarging or reducing the graph (changing the X- and Y-axis scale)
Display the
pull-down menu
Select a setting
Accept setting
Cancel
[Select]
Select a setting
Setting Contents:( ∗ : Default setting)
x1/3, x1/2, x1∗, x2, x5, x10, x20, x50
Setting Contents:( ∗ : Default setting)
0.5ms/div∗, 1ms/div, 2ms/div, 5ms/div,10ms/div
