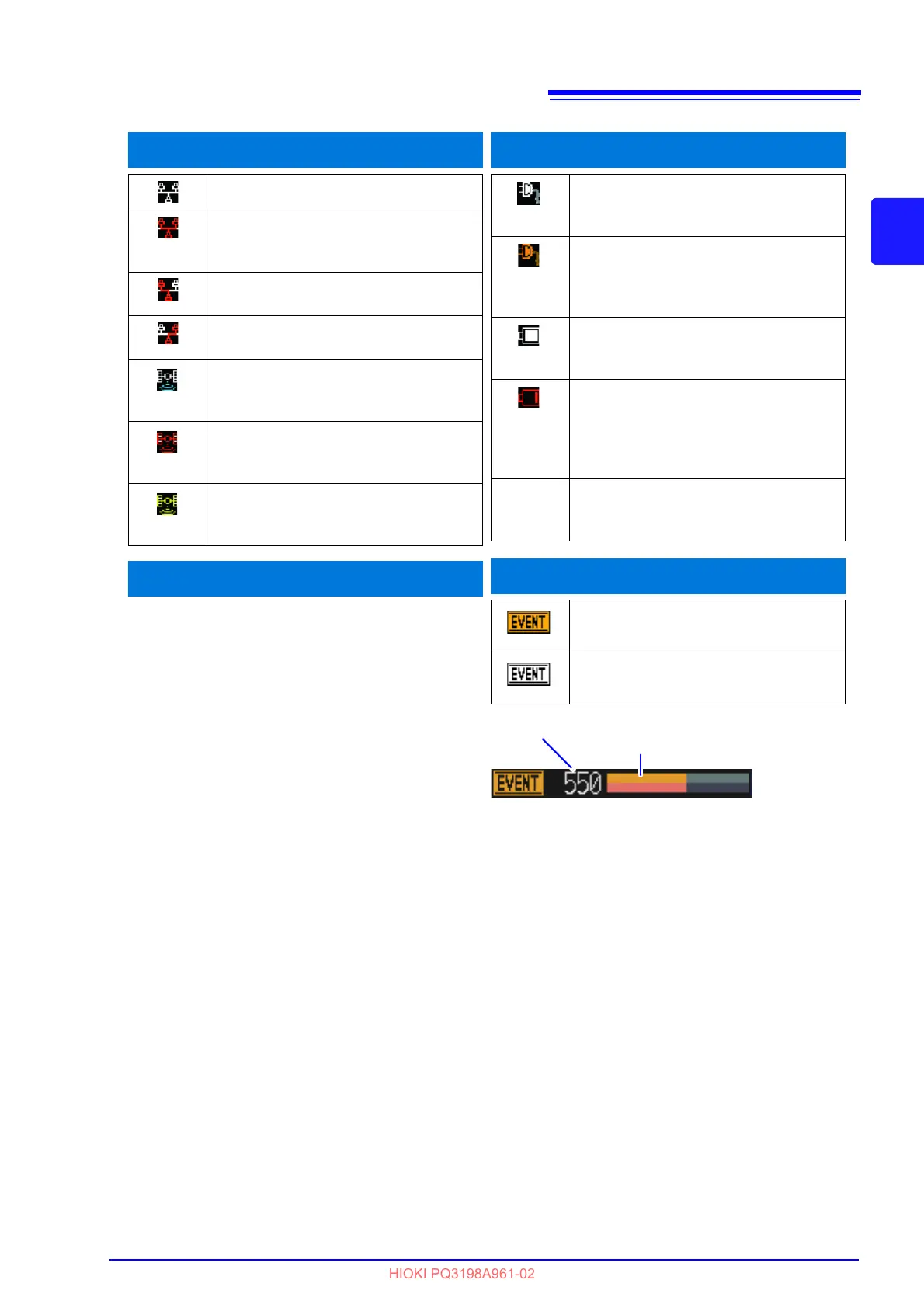

No. of events recorded
(Max. 9999 *)
Displays the present year, month, day, hour, min-
ute, and second.
See: Setting the Clock: (p.82)
3 Interface status display
Lights up during normal operation.
Lights up when the instrument is both
connected to an HTTP server and
downloading data.
Lights up when the instrument is
downloading data.
Lights up when the instrument is con-
nected to an HTTP server.
(Blue)
Lights up when GPS positioning is
active while connected to the PW9005
GPS Box.
(Red)
Lights up when the RS connected
device is set to GPS but the PW9005
GPS Box is not yet connected.
(Yellow)
Lights up when the PW9005 GPS Box
is connected but GPS positioning is
not yet active.
5 Real-time clock display
4 Power supply status display
(White)
Lights up when the instrument is being
powered by the AC adapter.
The POWER LED will turn green.
(Orange)
Lights up when the instrument is being
powered by the AC adapter and the
battery is charging. The POWER LED
will turn green.
(White)
Lights up when the instrument is being
powered by the battery. The POWER
LED will turn red.
(Red)
Lights up when the instrument is being
powered by the battery and the remain-
ing battery life is limited. Connect the
AC adapter and charge the instrument.
The POWER LED will turn red.
No display
No display indicates that the instru-
ment is off or charging.
The CHARGE LED will light up.
6 Event generation status display
(Orange)
An event has been detected.
(White)
No event has been detected.
Event indicator
Full bar indicates 9999 * events.
* : When the Max. Recordable events is set to 9999
To Next Page
