Redundancy
RM Web L3P
Release
4.1
03/08
8.3
Redundant coupling
145
One-Switch coupling
Select the Redundancy:Ring/Network Coupling dialog.
Select one-Switch coupling (see fig. 47).

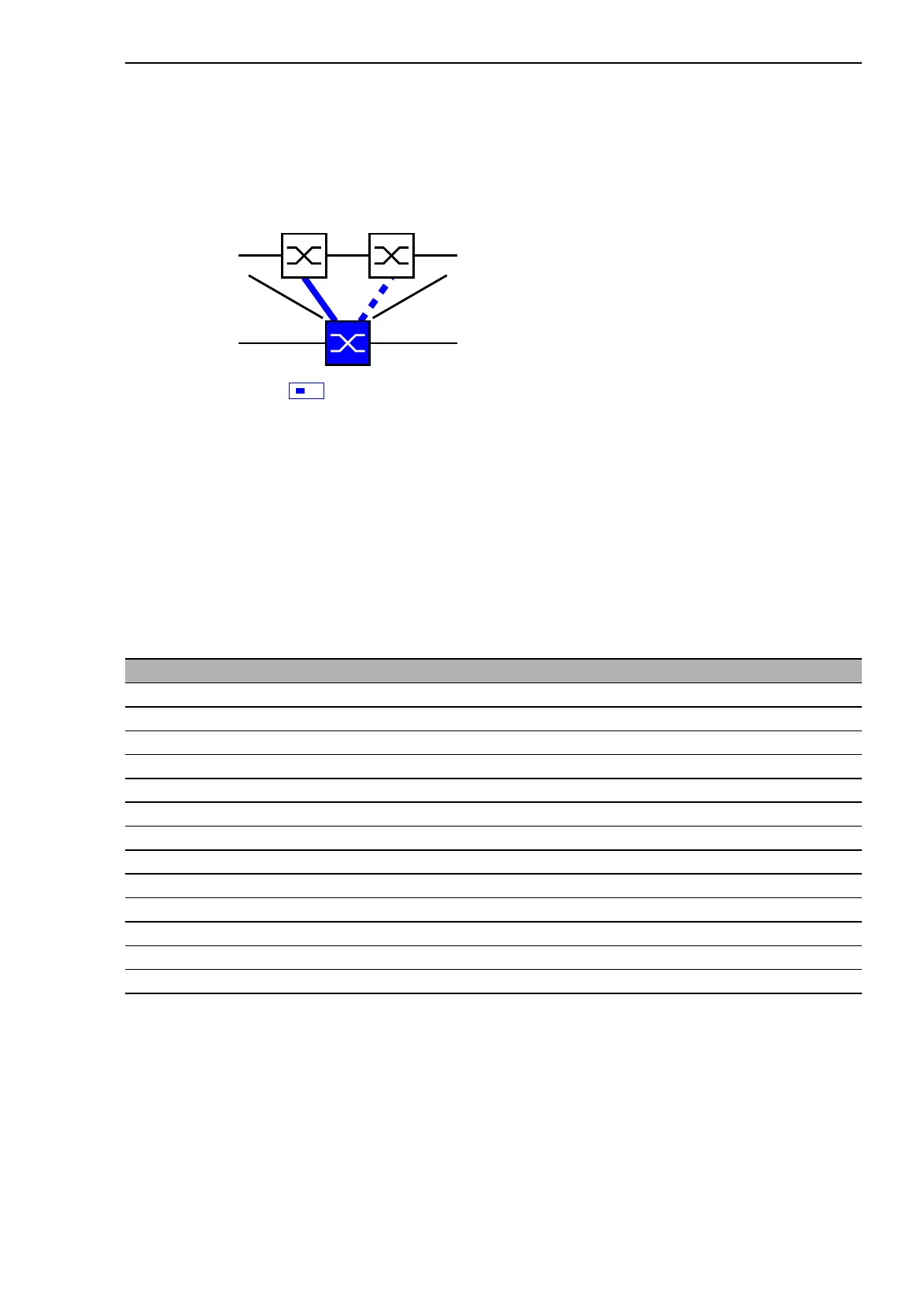

Figure 47: One-Switch coupling
The following settings apply to the Switch displayed in blue in the selected
graphic.
Select the partner coupling port (see fig. 48), (see table 29).
With “Partner coupling port” you specify at which port you are
connecting the control line.
Note: Configure the partner coupling port and the HIPER-Ring ports on
different ports.
Select the coupling port (see fig. 48), (see table 30).
With “Coupling port” you specify at which port you are connecting the
redundant line.
Switch Partner coupling port
RS2-../.. Not possible
RS2-16M Adjustable for all ports (default setting: port 2)
RS20 Adjustable for all ports (default setting: port 1.3)
RS30 Adjustable for all ports (default setting: port 1.3)
RS40 Adjustable for all ports (default setting: port 1.3)
MICE Adjustable for all ports (default setting: port 1.3)
PowerMICE Adjustable for all ports (default setting: port 1.3)
MS 20 Adjustable for all ports (default setting: port 1.3)
MS 30 Adjustable for all ports (default setting: port 2.3)
RSR20/30 Adjustable for all ports (default setting: port 1.3)
MACH 1000 Adjustable for all ports (default setting: port 1.3)
MACH 3000 Adjustable for all ports
MACH 4000 Adjustable for all ports (default setting: port 1.3)
Table 29: Port assignment for one-Switch coupling
IO
STAND-BY
Partner
coupling
port
Coupling
port
