Network Load Control
138
8.3
Rate Limiter
Basic Configuration
Release
6.0
07/2010
8.3.2 Rate Limiter Settings (PowerMICE and
MACH 4000)
Select the Switching:Rate Limiter dialog.
X "Ingress Limiter (kbit/s)" allows you to enable or disable
the ingress limiter function for all ports and
to select the ingress limitation on all ports (either broadcast packets
only or broadcast packets and Multicast packets).
X "Egress Limiter (Pkt/s)" allows you to enable or disable the egress
limiter function for broadcasts on all ports.
Setting options per port:
X Ingress Limiter Rate for the packet types selected in the Ingress
Limiter frame:
X = 0, no ingress limit at this port.
X > 0, maximum incoming traffic rate in kbit/s that is allowed to be
sent at this port.
X Egress Limiter for broadcast packets:
X = 0, no rate limit for outbound broadcast packets at this port.
X > 0, maximum number of outgoing broadcasts per second sent at
this port.

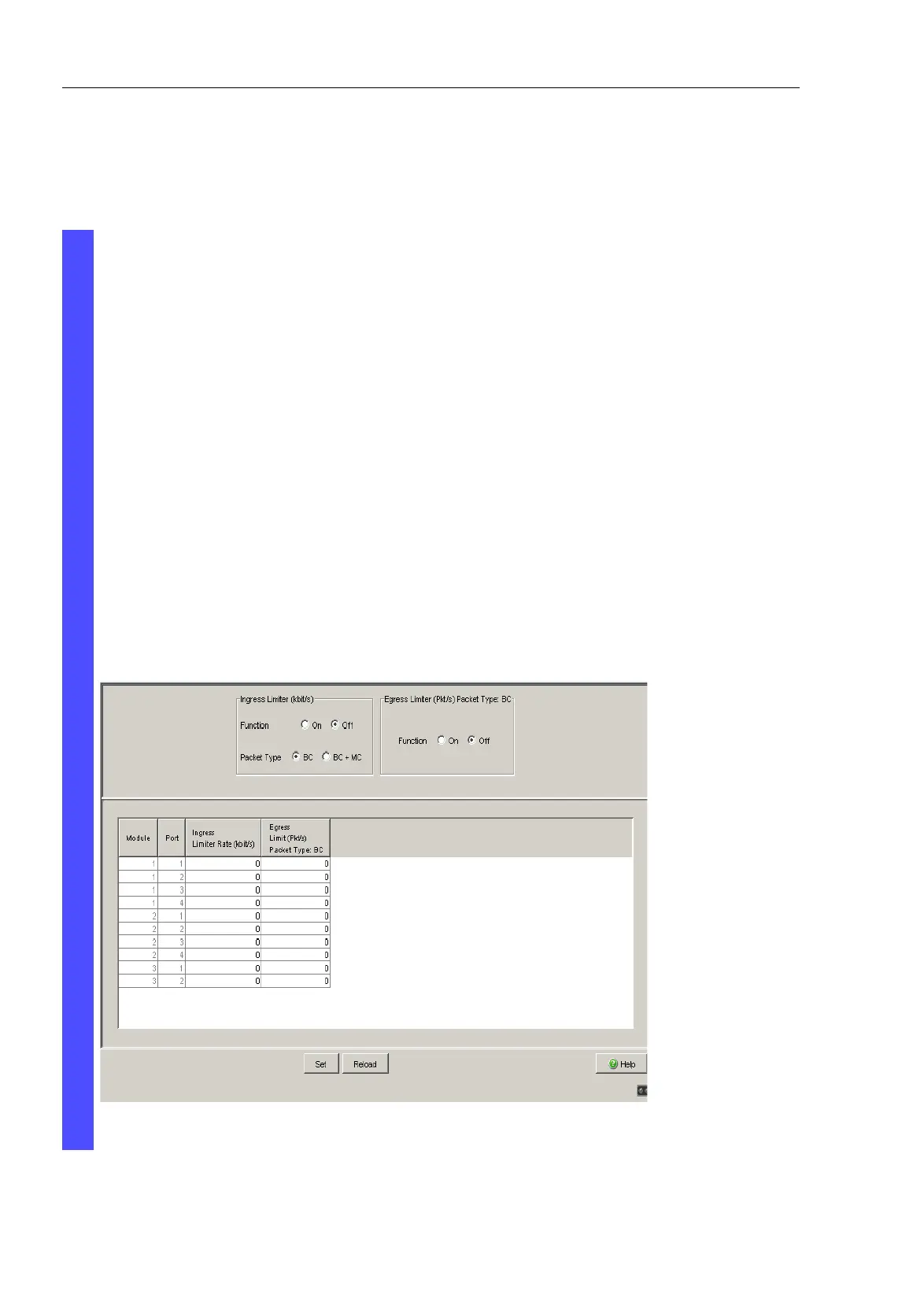

Figure 35: Rate Limiter dialog
