Hirschmann RS20 User Manual

MACH 100
Release 07/09
21

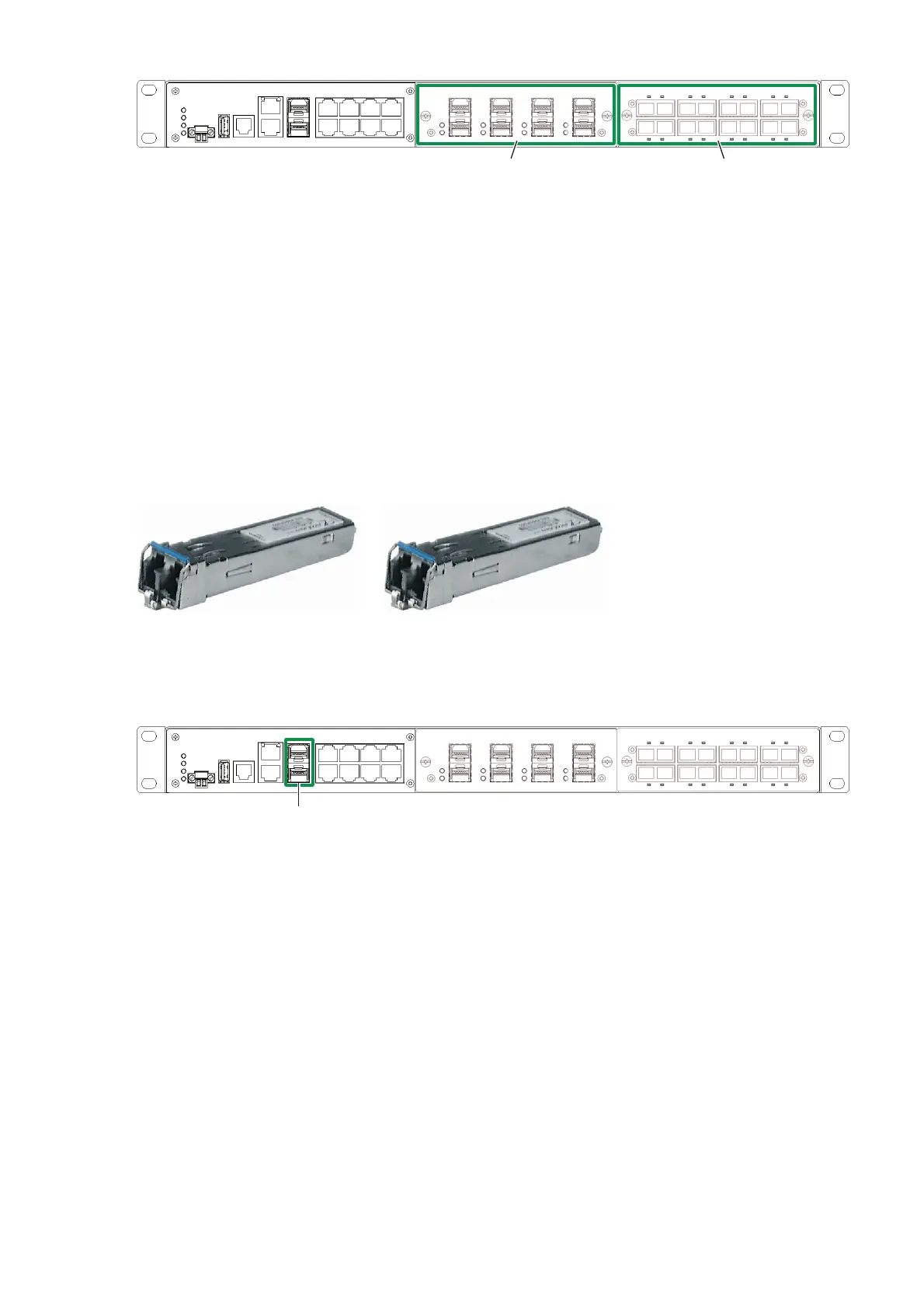

Figure 9: MACH 100 device equipped with media modules
1 - Media module 1
2- Media module 2
 To attach a media module, first remove the 2 screws on the protective
cover of the media module slot and remove the protective cover.
 Plug the media module into the desired slot.
 Fasten the 2 screws at the corners of the media module.
 Fit the media modules in sequence from left to right.
2.1.3 Installing the SFP modules
Figure 10: MACH 100 device, front view
1 - Two SFP slots
 To attach an SFP module, first remove the protective cap over the socket.
 Push the SFP module with the lock closed into the socket until it latches
audibly in place.
Note: Only use Hirschmann SFP modules (see page 38 „Accessories“).
2
1
Fast ETHERNET
fiberoptic SFP module
Gigabit ETHERNET
fiberoptic SFP module
1

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
