Hirschmann RS20 User Manual

Entering the IP Parameters
50
2.8 Web-based IP Configuration
Basic Configuration
Release 6.0 07/2010
2.8 Web-based IP Configuration
With the Basic Settings:Network dialog you define the source from
which the device gets its IP parameters after starting, and you assign the IP
parameters and VLAN ID and configure the HiDiscovery access.

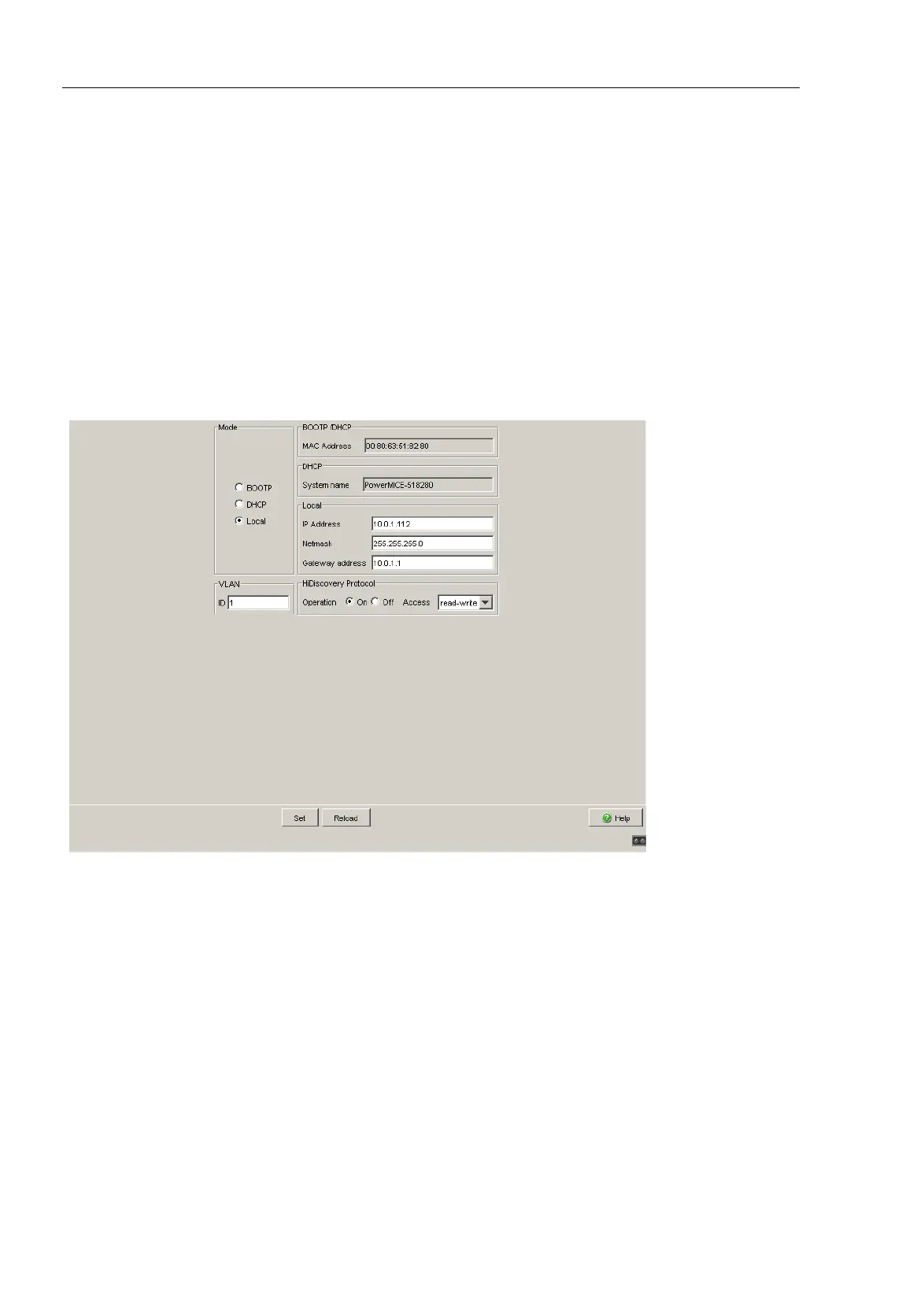

Figure 16: Network Parameters Dialog
 Under “Mode”, you enter where the device gets its IP parameters:
X In the BOOTP mode, the configuration is via a BOOTP or DHCP
server on the basis of the MAC address of the device (see page 218
“Setting up a DHCP/BOOTP Server“).
X In the DHCP mode, the configuration is via a DHCP server on the
basis of the MAC address or the name of the device (see page 224
“Setting up a DHCP Server with Option 82“).
X In the “local” mode the net parameters in the device memory are used.

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
