16
MACH 100
Release
07/09
1.1.2 MACH 100 media modules

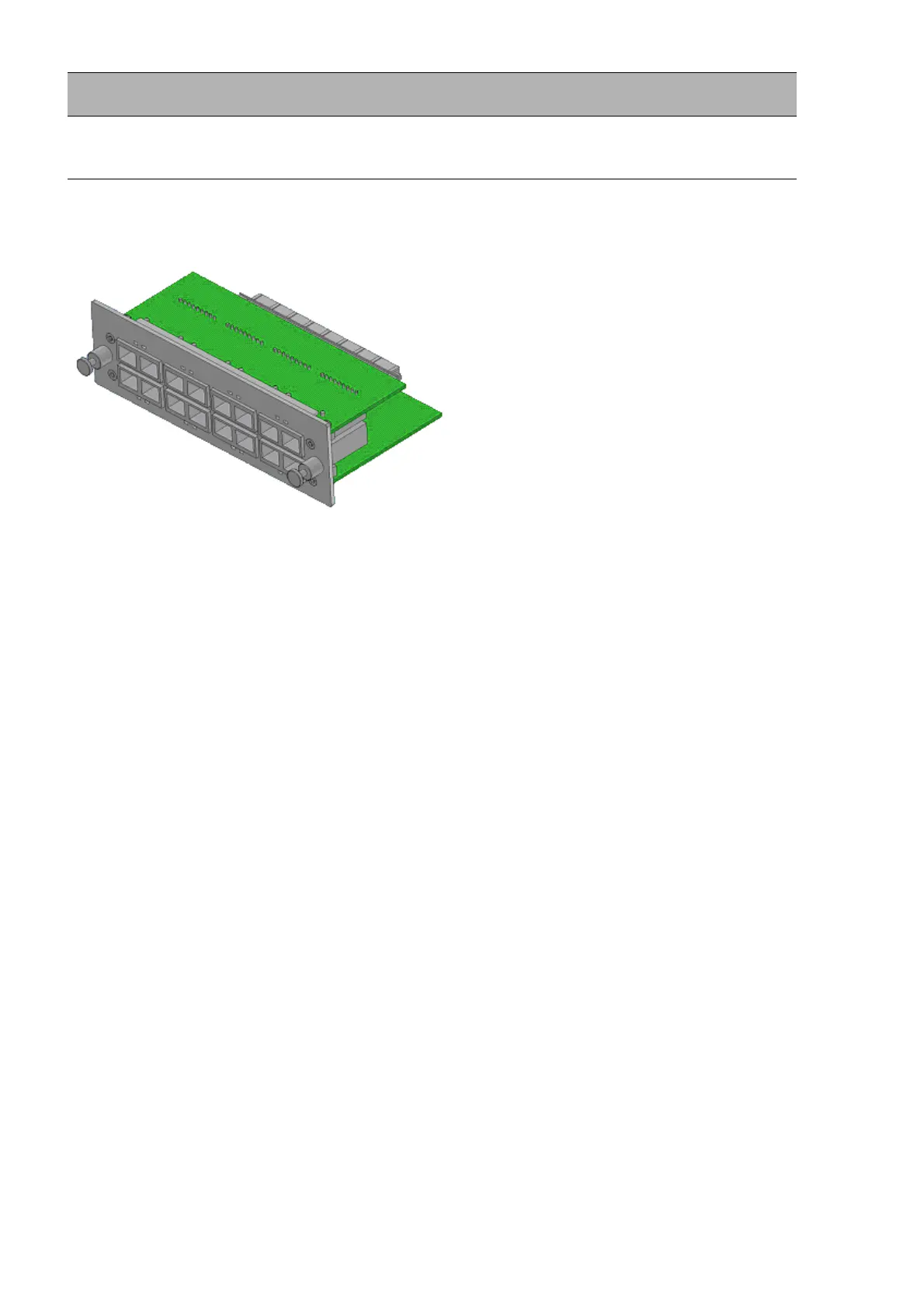

Figure 4: Media module for MACH 100, example: M1-8MM-SC
The MACH 100 media modules form the interface from the device to the
LAN.
The modules can be used in
X MACH 102-8TP basic device
X MACH 102-8TP-R basic device
The media modules are hot-plug-compatible, which means that you can re-
place the modules with a module of the same kind during operation.
Note: If you are replacing media, e.g. removing a TX media module and plug-
ging in an FX media module in its place, the MACH 100 performs a warm
start.
The media modules each have 8 Fast ETHERNET interfaces and differ as to
their media type.
The different interfaces of the MACH 100 media modules provide you with
the following interface-specific functions:
X Specific functions of TP/TX interface
X Link Control
X Auto Polarity Exchange
X Autonegotiation
X Autocrossing (device may be connected with a crossed-over or an un-
crossed cable)
Gigabit ETHERNET
GE ports 1.1 and 1.2 (combo ports)
Fast ETHERNET
FE ports 2.1 to 2.8, 3.1 to 3.8, 4.1 to 4.8
100/1000 Mbit/s fiber optic, SFP slots
Alternatively connectable: 10/100/1000 Mbit/s
twisted pair, RJ45 connectors
24 * twisted pair TX, RJ45, 10/100 Mbit/s
