17
X Specific functions of fiber optic interface
X Link Down monitoring
 Media module M1-8TP-RJ45
The M1-8TP-RJ45 media module has 8 x 10/100 Mbit ports for connect-
ing terminal devices or network segments according to the standards
IEEE 802.3 100BASE-TX / IEEE 802.3 10 BASE-T.
These ports support autonegotiation and autopolarity. The ports are RJ45
sockets. The housings of the RJ45 sockets are electrically connected to
the front plate of the device. The pin assignment is identical to MDI-X.
When the autonegotiation function is enabled, these ports also support
autocrossing.

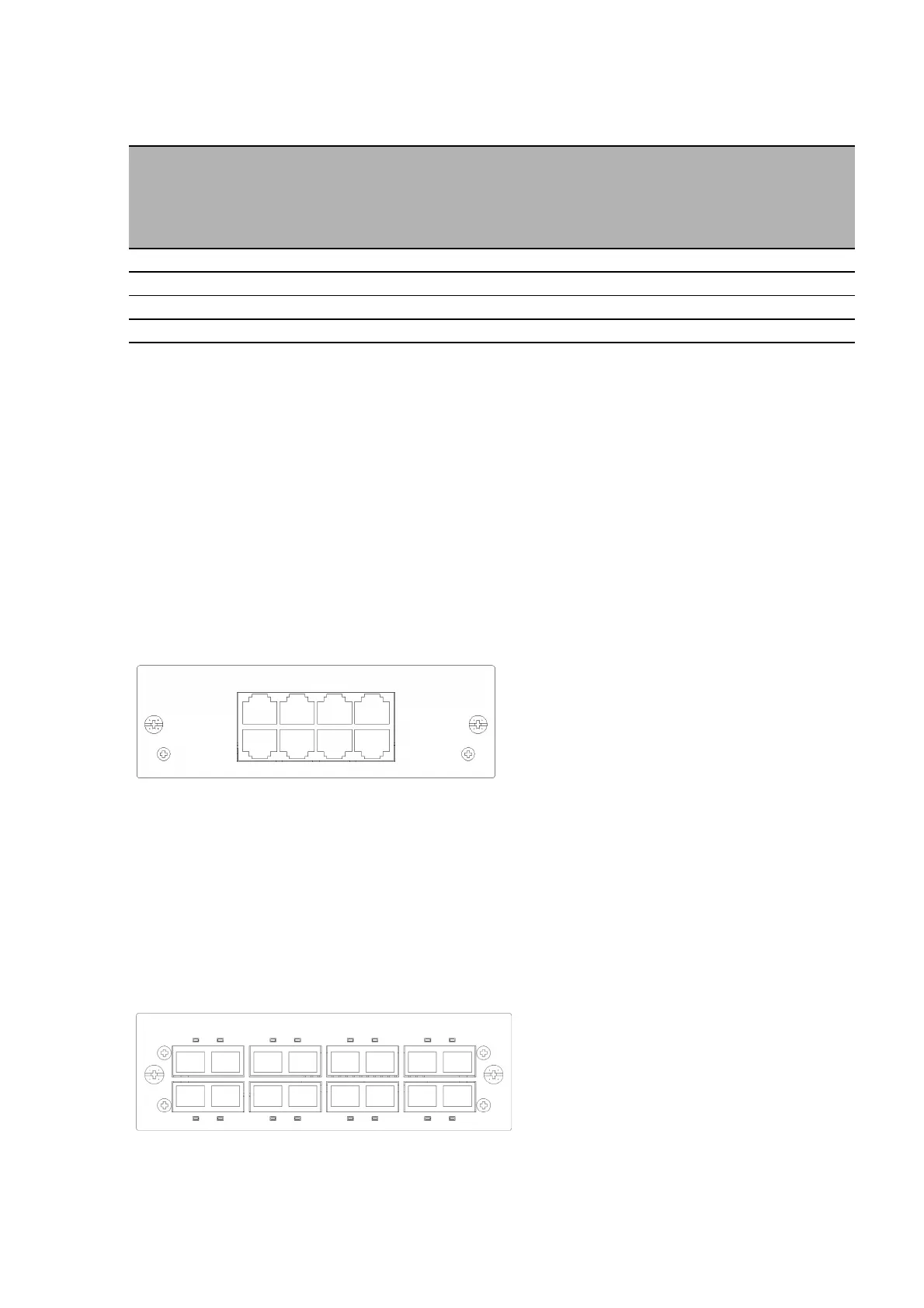

Figure 5: Media module M1-8TP-RJ45
 Media module M1-8MM-SC
The M1-8MM-SC media module has 8 FX ports for connecting terminal
devices or network segments in compliance with the IEEE 802.3u
100BASE-FX Multimode standard. The optical ports are configured in 100
Mbit/s Fullduplex (FDX) and support FEFI. They have a SC design.
Figure 6: Media module M1-8MM-SC
MACH 100 media modules
Module type
TP ports
10/100 Mbit/s
Fiber optic
ports
Multimode
100 Mbit/s
Fiber optic
ports
Singlemode
100 Mbit/s
SFP ports
Multimode
Singlemode
Longhaul
100 Mbit/s
M1-8TP-RJ45 8, RJ45 – – –
M1-8MM-SC – 8, SC – –
M1-8SM-SC – – 8, SC –
M1-8SFP – – – 8, SFP
Table 1: Media connections per MACH 100 media module (number and type)

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
