Hirschmann RS20 User Manual

34
MACH 100
Release 07/09
Note: You will find the order number for the terminal cable, which is or-
dered separately, in the Technical Data chapter (see on page 35 „Tech-
nical data“).
2.4 Disassembly
 Disassembling the device
 To detach the device from the switch cabinet or the wall, remove the
screws from the brackets on the device.

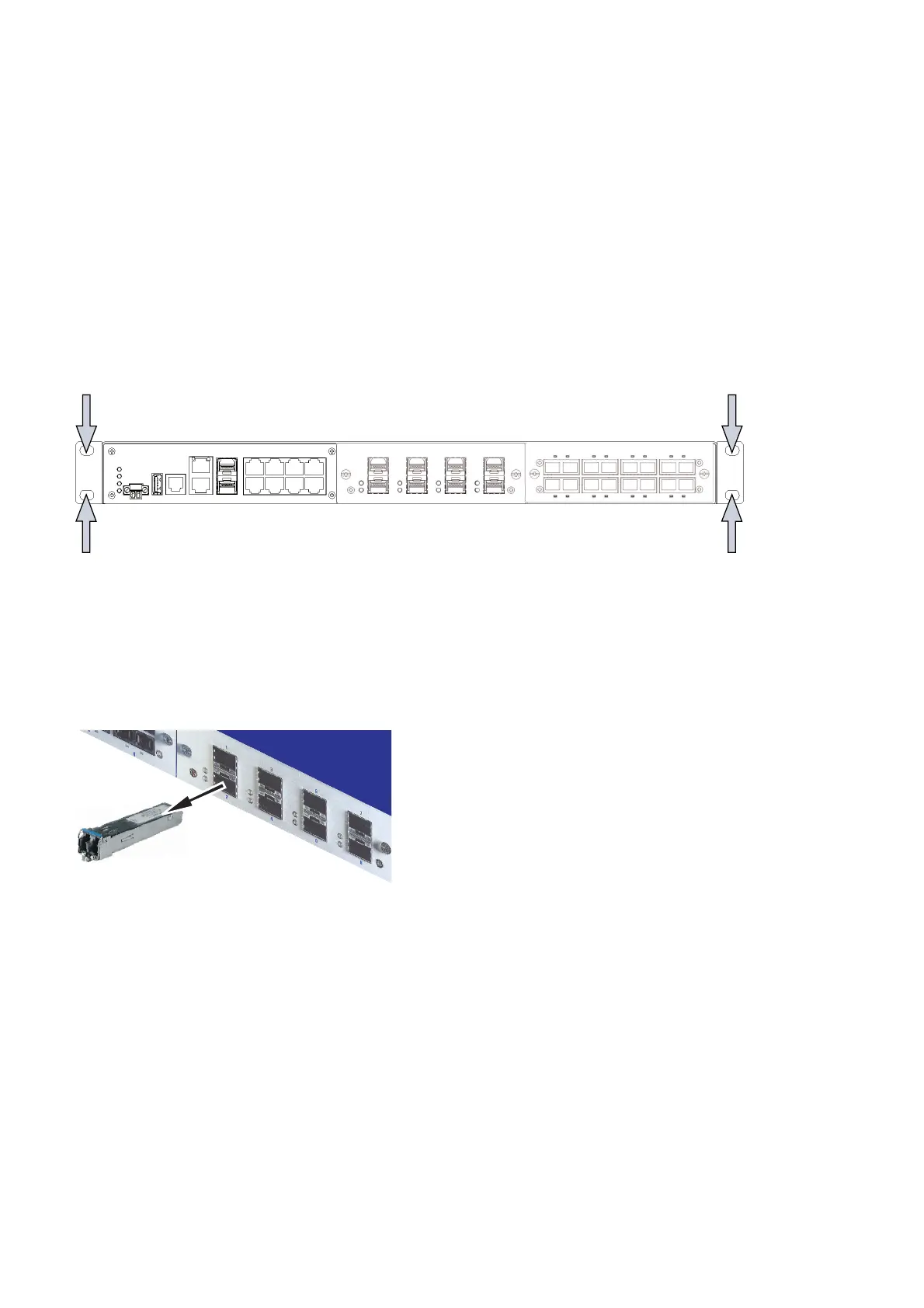

Figure 23: Disassembly
 Disassembling the SFP modules
 Pull the SFP module by the opened lock out of the socket.
 Close the socket with the protective cap.
Figure 24: Disassembling an SFP module
MACH 100
LS DA
USB
V.24
MACH 1000
2
1
LS DA
3
4
9
10
P
StandByRM
FAULT
R1
R2
5
6
7
8
13
14
11
12
17
18
15
16
21
22
19
20
25
26
23
24
LS DA
LS DA
LS DA
LS DA

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
