Network Load Control

160

8.6

VLANs

Basic Configuration

Release

6.0

07/2010

Proceed as follows to perform the example configuration:

 Configure VLAN

 Select the Switching:VLAN:Static

dialog.

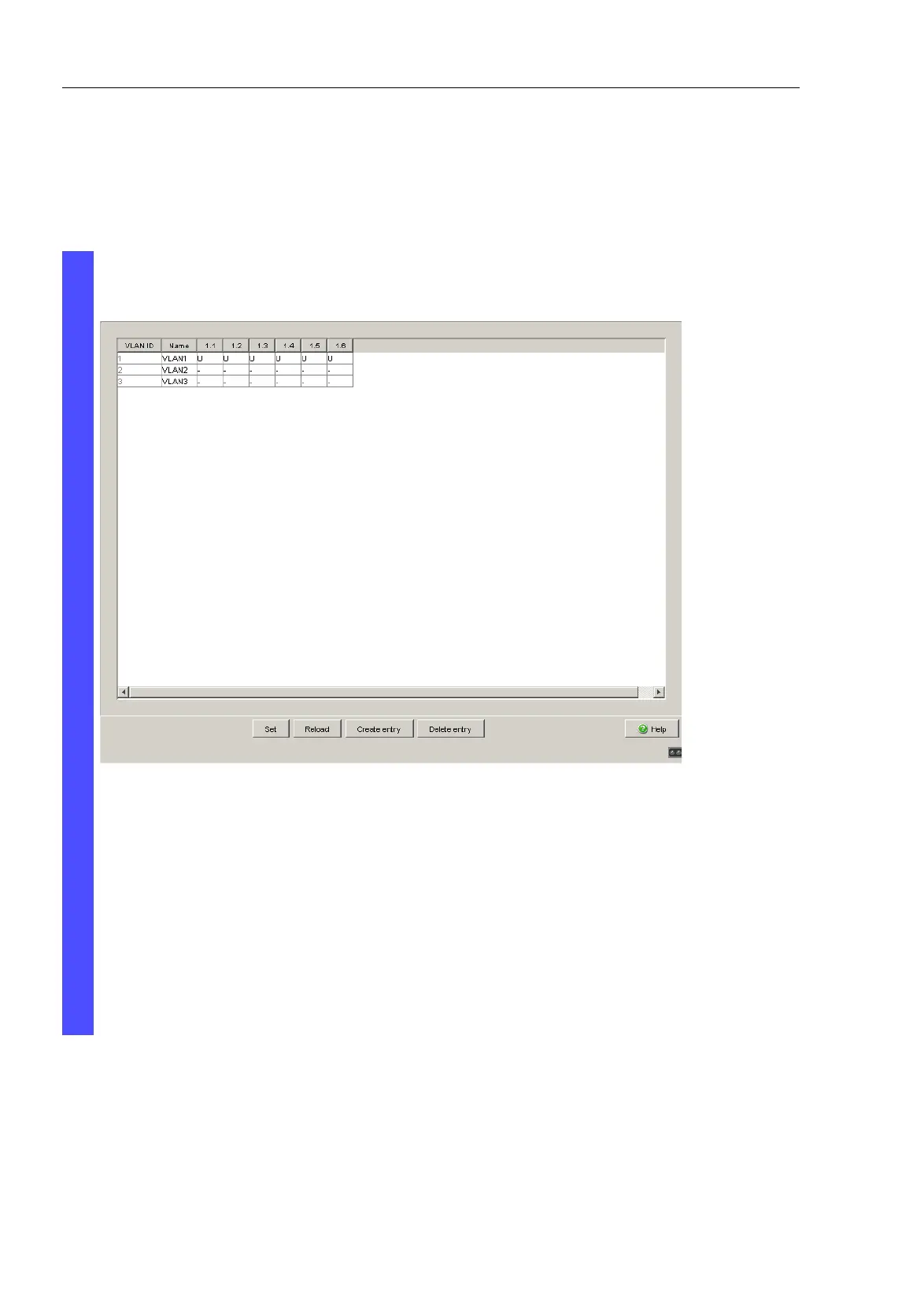

Figure 42: Creating and naming new VLANs

 Click on “Create Entry” to open a window for entering the VLAN ID.

 Assign VLAN ID 2 to the VLAN.

 Click on “OK”.

 You give this VLAN the name VLAN2 by clicking on the name field

and entering the name. Also change the name for VLAN 1 from

“Default” to “VLAN1”.

 Repeat the previous steps and create another VLAN with the VLAN

ID 3 and the name VLAN3.
