Proceed as follows to perform the example configuration:
 Configure VLAN
 Select the Switching:VLAN:Static
dialog.

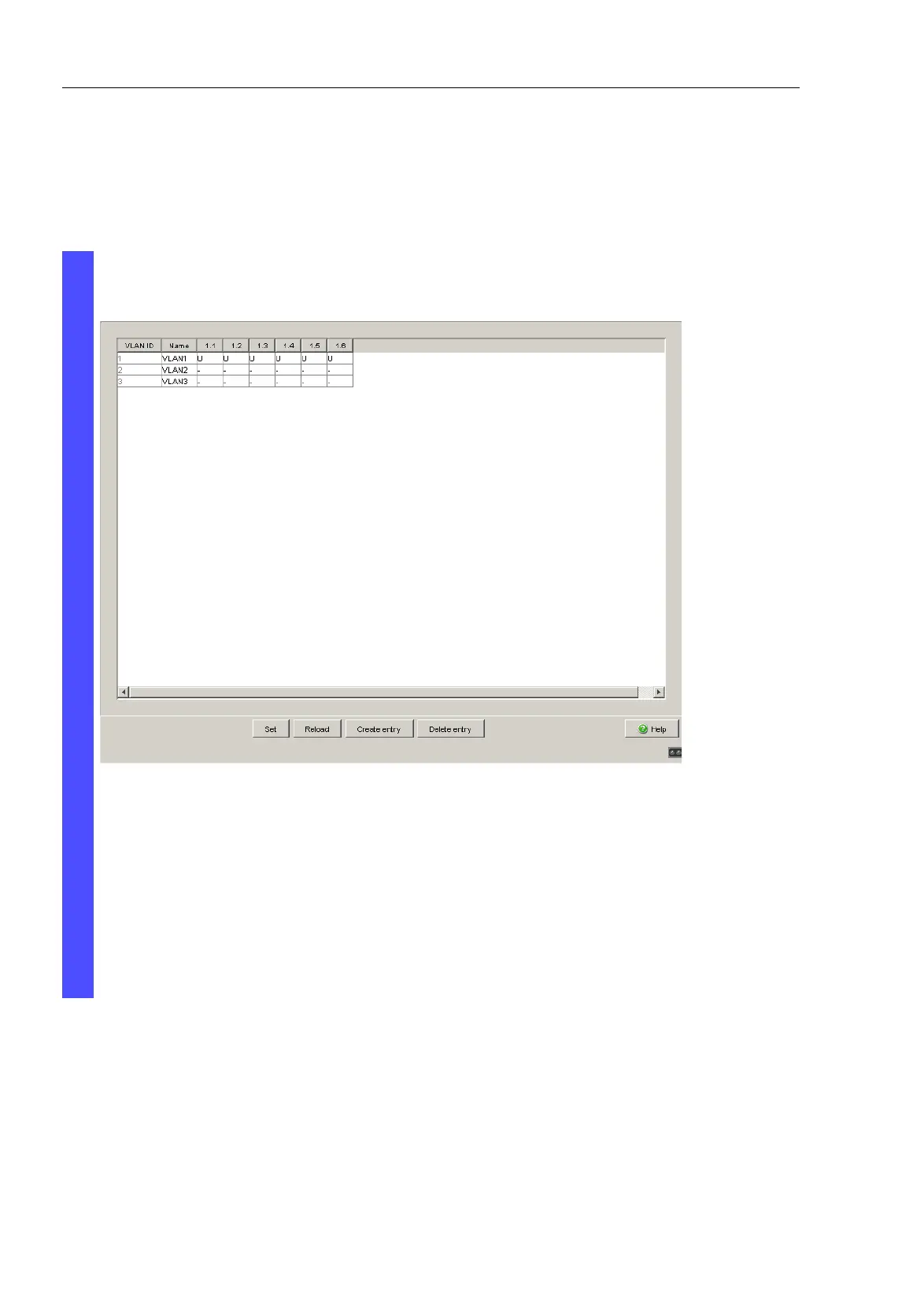

Figure 46: Creating and naming new VLANs
 Click on “Create Entry” to open a window for entering the VLAN ID.
 Assign VLAN ID 2 to the VLAN.
 You give this VLAN the name VLAN2 by clicking on the name field
and entering the name. Also change the name for VLAN 1 from
“Default” to “VLAN1”.
 Repeat the previous steps and create another VLAN with the VLAN
ID 3 and the name “VLAN3”.
