Hirschmann RS20 User Manual

Access to the user interfaces
22
1.3 Web-based Interface
Basic Configuration
Release 6.0 07/2010
 Start your Web browser.
 Check that you have activated JavaScript and Java in your browser
settings.
 Establish the connection by entering the IP address of the device
which you want to administer via the Web-based management in the
address field of the Web browser. Enter the address in the following
form:
http://xxx.xxx.xxx.xxx
The login window appears on the screen.

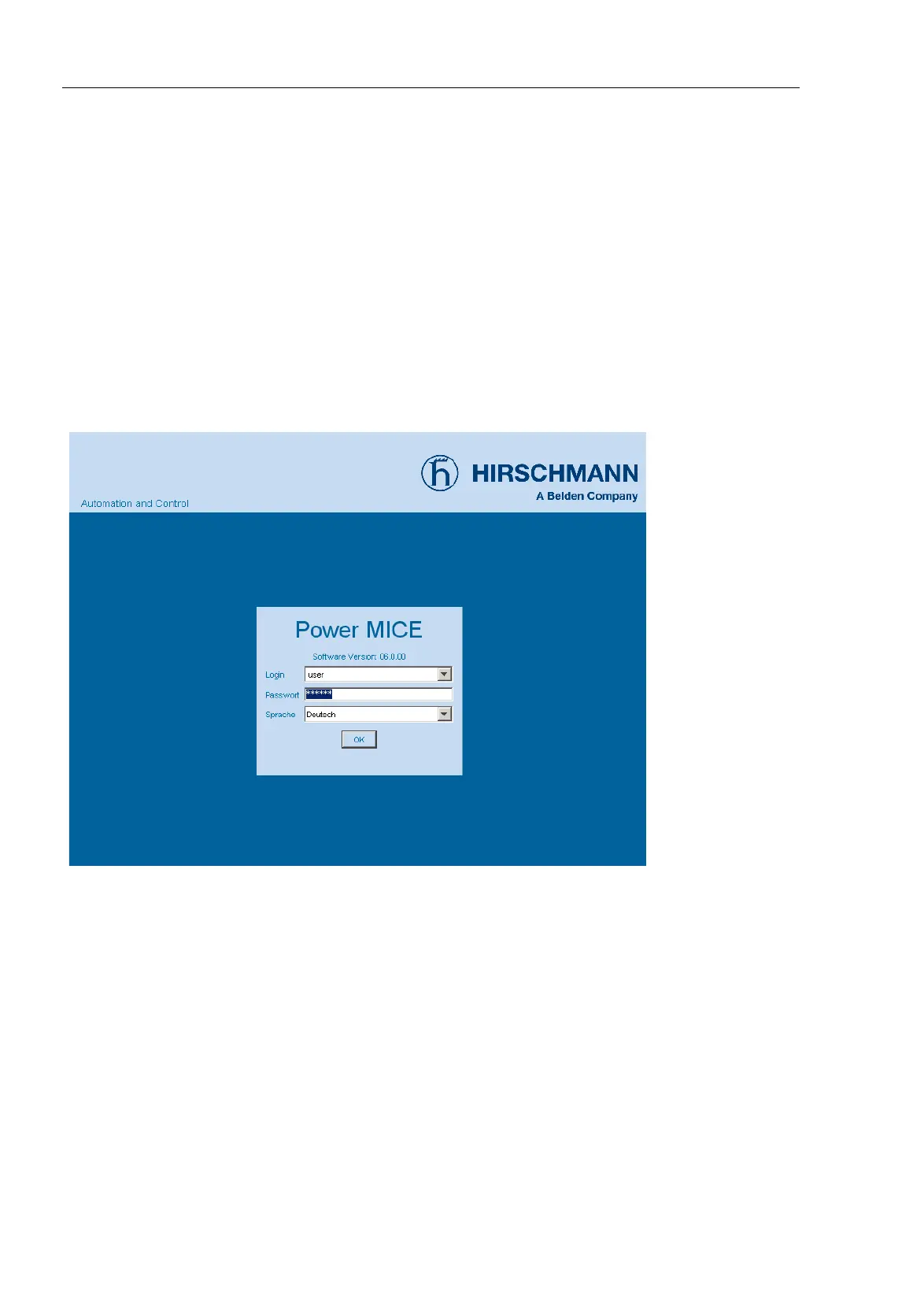

Figure 6: Login window
 Select the desired language.
 In the drop-down menu, you select
– user, to have read access, or
– admin, to have read and write access
to the device.
 The password "public", with which you have read access, appears in
the password field. If you wish to have write access to the device, then
highlight the contents of the password field and overwrite it with the
password "private" (default setting).
 Click on OK.

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
