Hirschmann RS20 User Manual

Setting up the Configuration
Environment
Basic Configuration
Release 6.0 07/2010
A.2 Setting up a DHCP Server with
Option 82
227

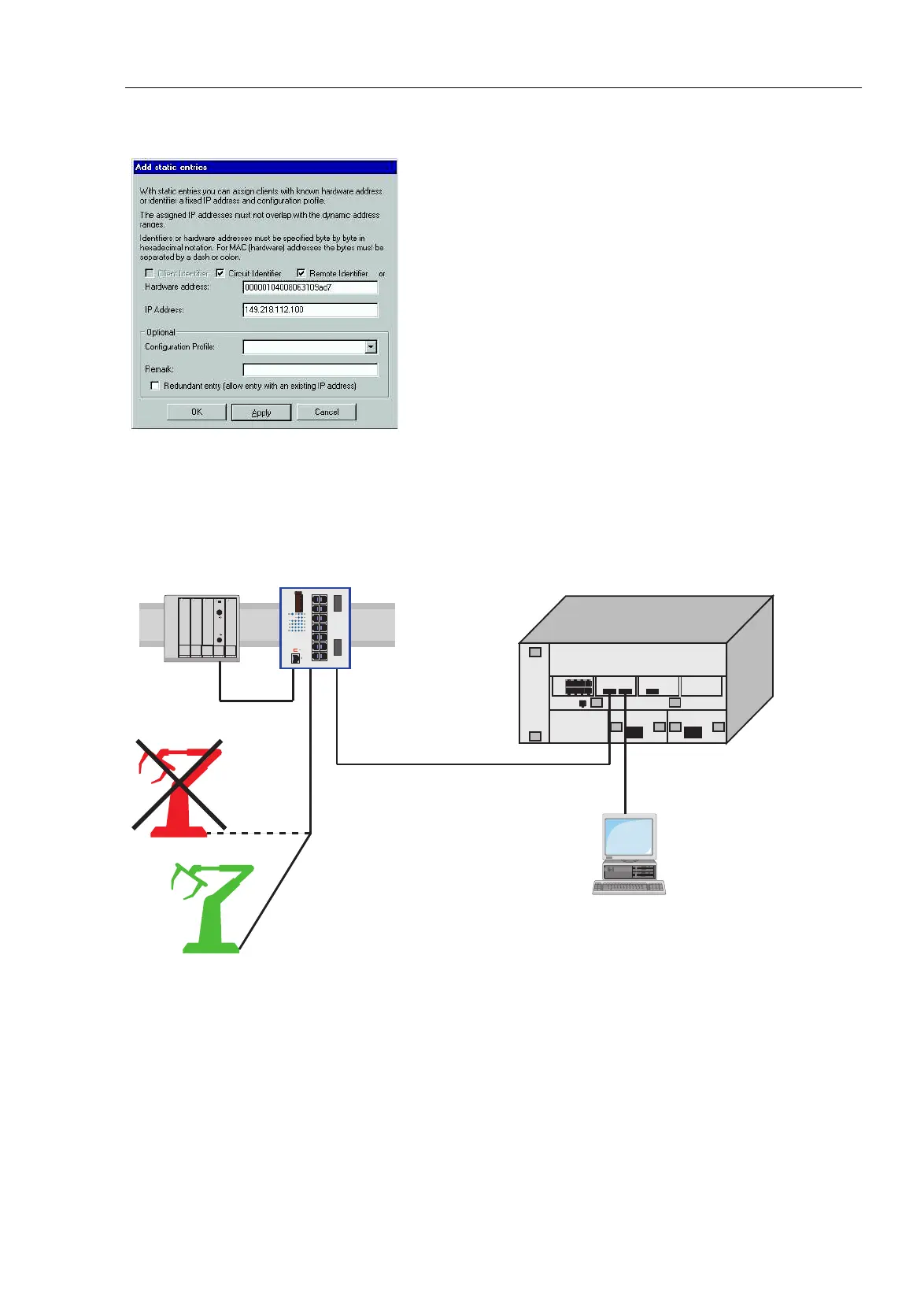

Figure 74: Entering the addresses
Figure 75: Application example of using Option 82
PLC
Switch (Option 82)
IP =
149.218.112.100
IP =
149.218.112.100
MAC =
00:80:63:10:9a:d7
DHCP Server
IP =
149.218.112.1

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
