Hirschmann RS20 User Manual

14
MACH 100
Release 07/09

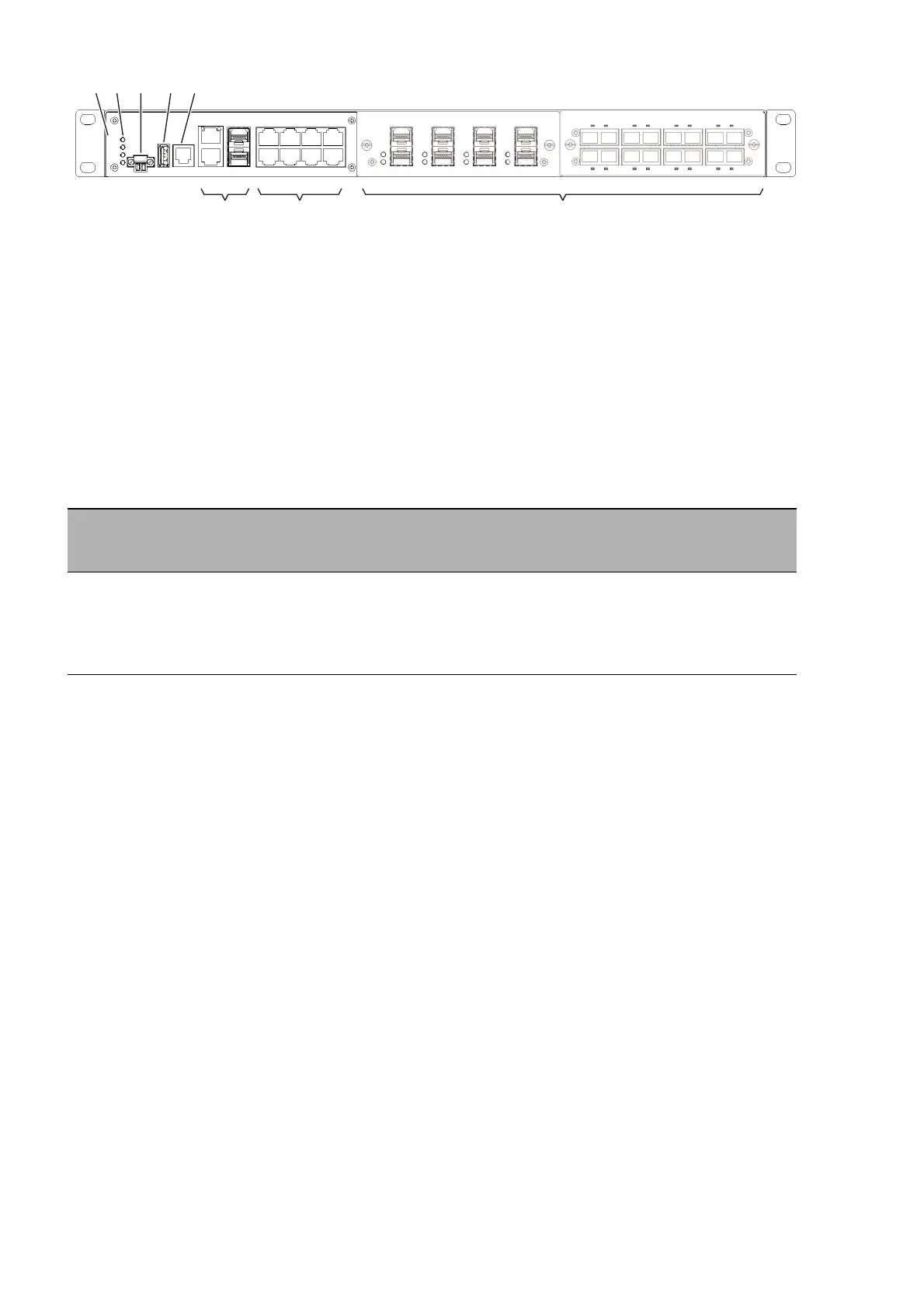

Figure 1: Overview of interfaces and display and control elements
in the MACH 102-8TP and MACH 102-8TP-R
1 - MACH 100 device
2- LED display elements
3 - Signal contact
4 - USB interface
5 - V.24 access for external management
6 - See following table, column 1
7 - See following table, column 2
8 - See following table, column 3
 Fixed configuration of MACH 100 basic devices
The MACH 102-8TP-F, MACH 102-8TP-FR, MACH 102-24TP-F and
MACH 102-24TP-FR devices of the Industrial ETHERNET MACH100
family are switches with a fixed configuration.
The basic devices have the following properties:
X MACH 102-8TP-F, MACH 102-8TP-FR
X 2 Gigabit ETHERNET combo ports
X 8 Fast ETHERNET ports
X MACH 102-8TP-FR: The power supply is connected
redundantly.
Gigabit ETHERNET
GE ports 1 and 2 (combo
ports)
Fast ETHERNET
FE ports 1 to 8
Fast ETHERNET
FE ports 9 to 24
2 slots for media modules at your option
100/1000 Mbit/s fiber optic,
SFP slots
Alternatively connectable:
10/100/1000 Mbit/s twisted
pair, RJ45 connectors
8 * twisted pair TX,
RJ45, 10/100 Mbit/s
8 * twisted pair TX, RJ45, 10/100 Mbit/s or
8 * multimode FX DSC 100 Mbit/s or
8 * singlemode FX DSC 100 Mbit/s or
8 * SFP slot 100 Mbit/s
LS DA
USB
V.24
MACH 1000
2
1
LS DA
3
4
9
10
P
StandByRM
FAULT
R1
R2
5
6
7
8
13
14
11
12
17
18
15
16
21
22
19
20
25
26
23
24
LS DA
LS DA
LS DA
LS DA
2.5
2.7
2.6
2.8
3.8
3.7
3.5
4.6
4.8
4.5
4.7
2.1
2.2
2.4
3.6
3.1
3.3
3.2
3.4
4.1
4.3
4.2
4.4
2.3
1.1
1.1
1.2
1.2
2
3 4 51
6
7
8

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
