Configuring the Ports
76
Basic Configuration
Release 6.0 07/2010
The difference between the "nominal" and "reserved" power indicates
how much power is still available to the free PoE ports.
 In the “POE on” column, you can enable/disable PoE at this port.
 The “Status” column indicates the PoE status of the port.
 In the “Priority” column (MACH 4000), set the PoE priority of the port
to “low”, “high” or “critical”.
 The “Class” column shows the class of the connected device:
ClassMaximum power delivered
0: 15.4 W = state on delivery
1: 4.0 W
2: 7.0 W
3: 15,4 W
4: reserved, treat as class 0
 The “Name” column indicates the name of the port, see
Basic settings:Port configuration.

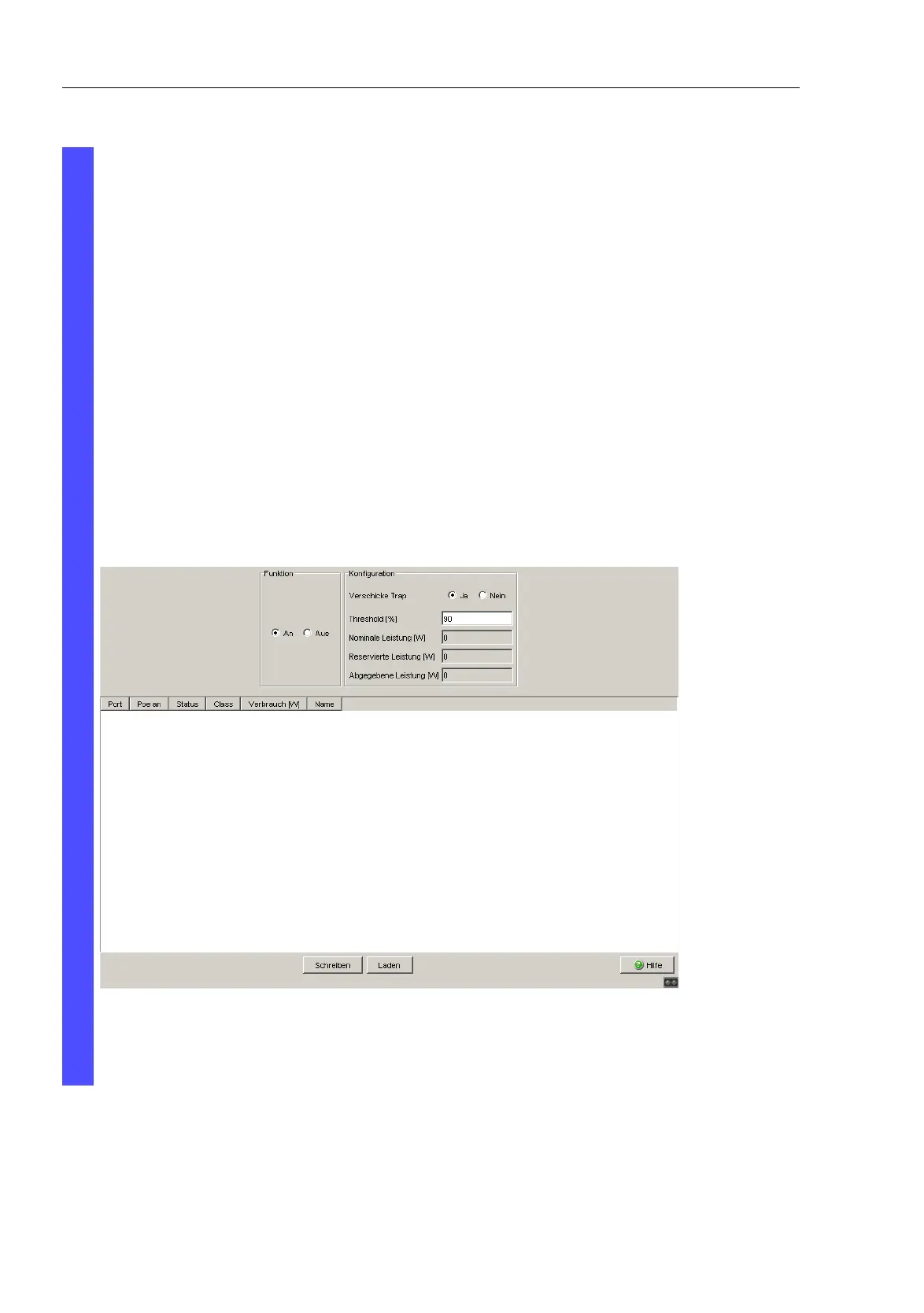

Figure 20: Power over Ethernet dialog

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
