5. SPECIFICATION
5-19

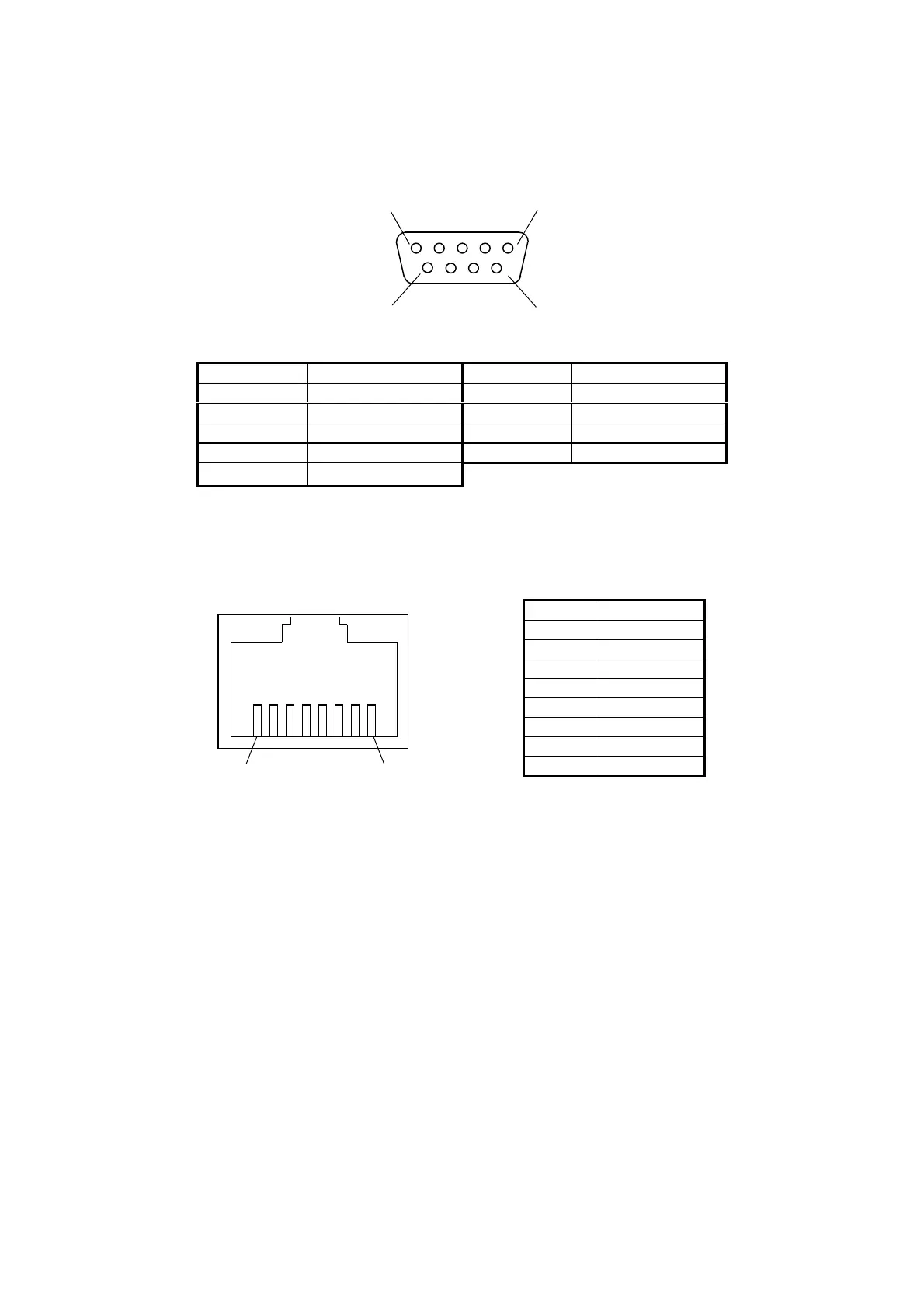

● Serial port (male connector, inch screws) (COM1, COM2 (optional) )
Pin No.
Signal name
Pin No.
Signal name
1
CD
6
DSR
2
RD
7
RTS
3
TD
8
CTS
4
DTR
9
RI
5
GND
● LAN port (RJ-45 modular port 8 pins)
Pin No.
Signal name
1
TRD0+
2
TRD0-
3
TRD1+
4
TRD2+
5
TRD2-
6
TRD1-
7
TRD3+
8
TRD3-
For network connection, use a cable specified as follows.
Cable specification: UTP cable (twisted-pair cable without shield) category 5e or 6
1
8
5
9
1
6
