5. SPECIFICATION
5-20

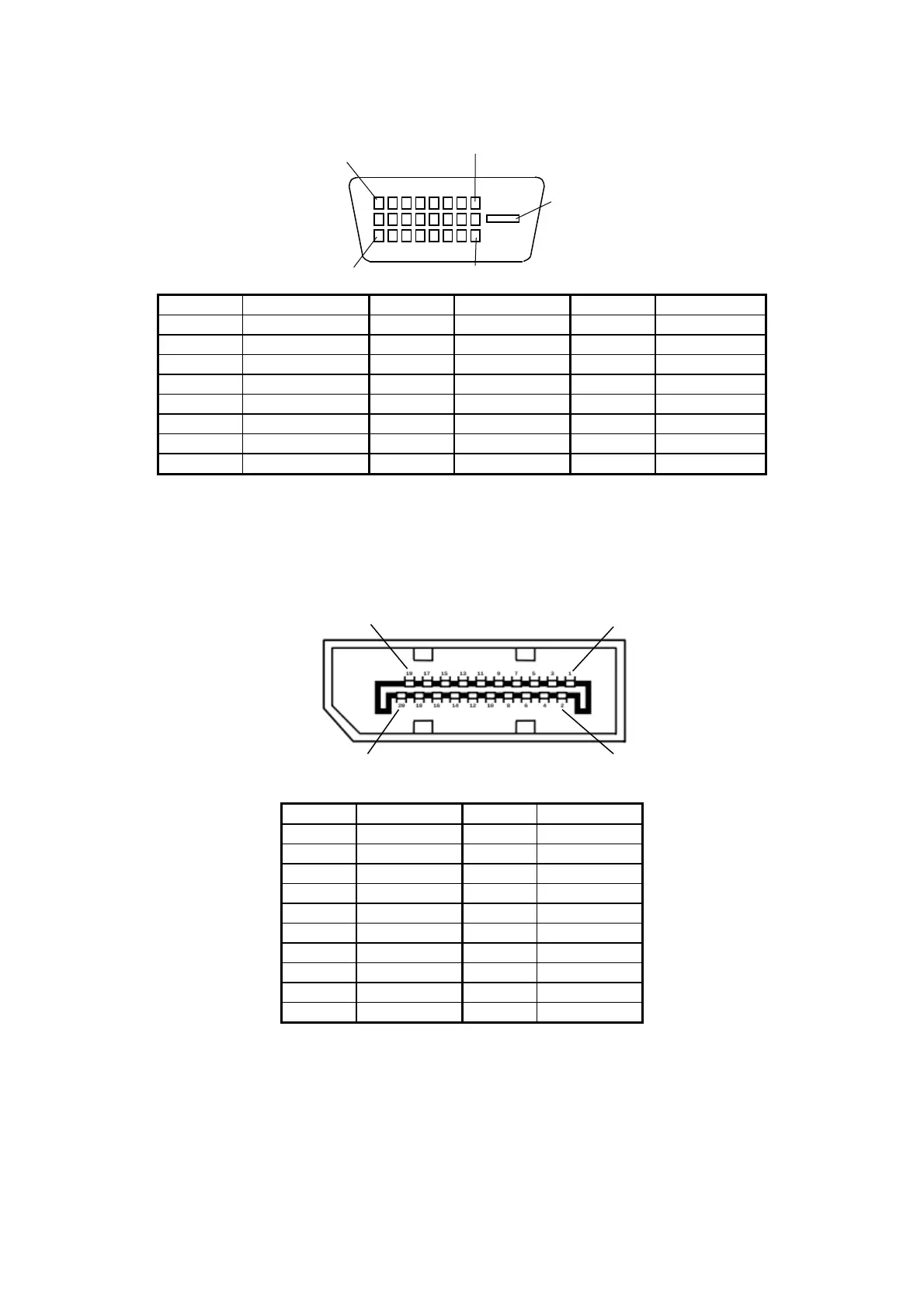

● Video port (DVI-D 24 pins, inch screws)
Pin No.
Signal name
Pin No.
Signal name
Pin No.
Signal name
1
TX2M
9
TX1M
17
TX0M
2
TX2P
10
TX1P
18
TX0P
3
SGND
11
SGND
19
SGND
4
NC(TX4M)
12
NC(TX3M)
20
NC(TX5M)
5
NC(TX4P)
13
NC(TX3P)
21
NC(TX5P)
6
DDCCLK2
14
P5DFP
22
SGND
7
DDCDAT2
15
PGND
23
TXCP
8
NC(V-Sync)
16
HP(SENSE)
24
TXCM
NOTE: This video port supports Single-Link only.
● Video port (DisplayPort 20 pins)
Pin No.
Signal name
Pin No.
Signal name
1
MainLane0+
11
GND
2
GND
12
MainLane3-
3
MainLane0-
13
CONFIG1
4
MainLane1+
14
CONFIG2
5
GND
15
Aux+
6
MainLane1-
16
GND
7
MainLane2+
17
Aux-
8
GND
18
HotPlug
9
MainLane2-
19
GND
10
MainLane3+
20
+3.3V
NOTE 1: If you use DisplayPort-DVI conversion connector for triple display, you must select
the active conversion connector and perform the prior evaluation.
NOTE 2: When you use DisplayPort-DVI conversion connector, you must confirm the output resolution
specification of DisplayPort-DVI conversion connector.
1
8
24
17
KEY
1
2
19
20
