4 - 10
4.
Affix the observation specimen on the conducting double-sided tape.

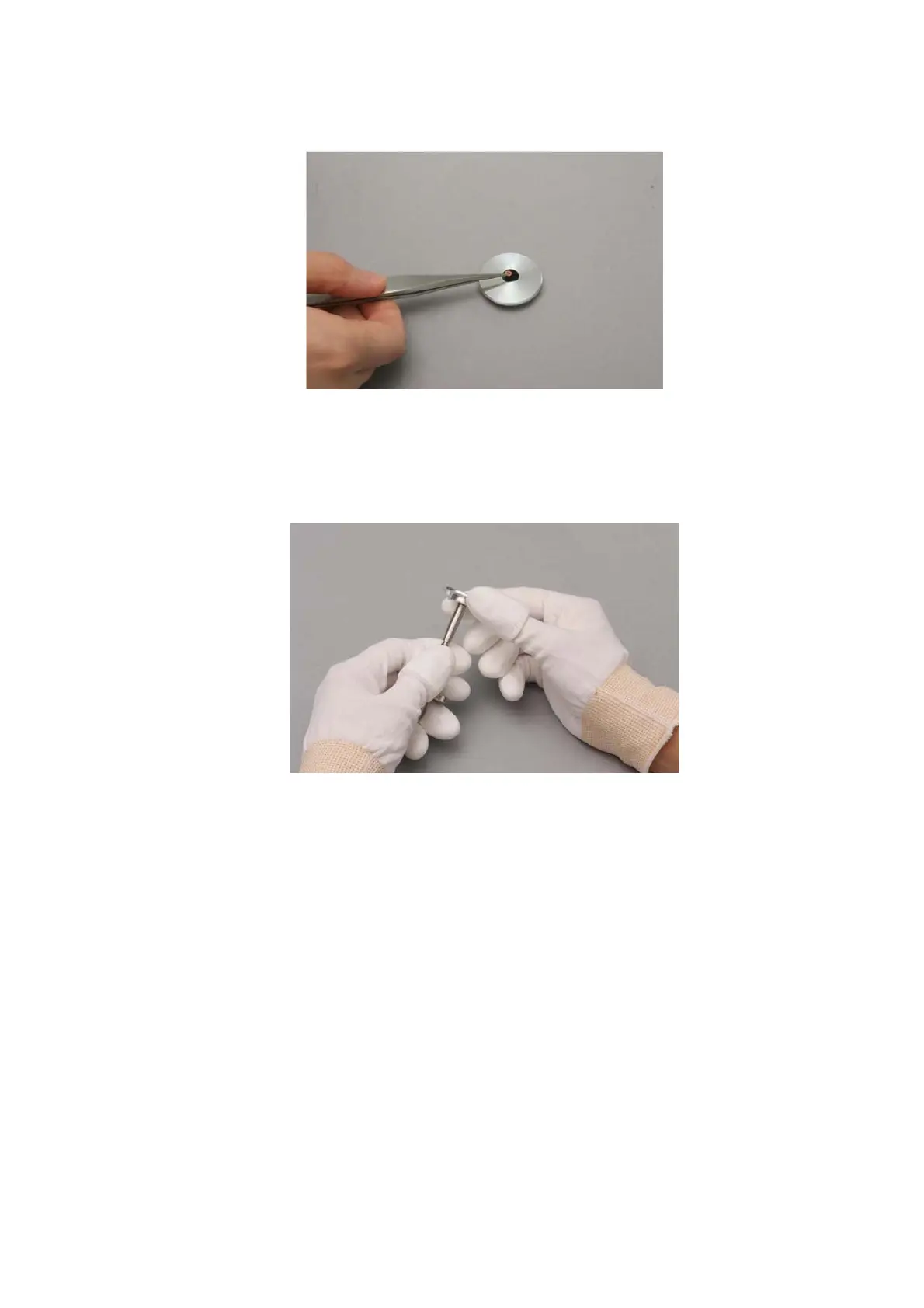

Figure 4.2.2-3
Affixing the Observation Specimen on the Specimen Stub
5.
Attach the specimen stub to a height-adjust
ment screw.
Figure 4.2.2-4
Attaching the Specimen Stub to a Height Adjustment Screw
6.
Place the specimen stub on the specimen height gauge
to adjust its height.
