4 - 89
2.
Upon termination of the image capture process, the dialog disappears, and the Digital
Zoom screen is displayed.

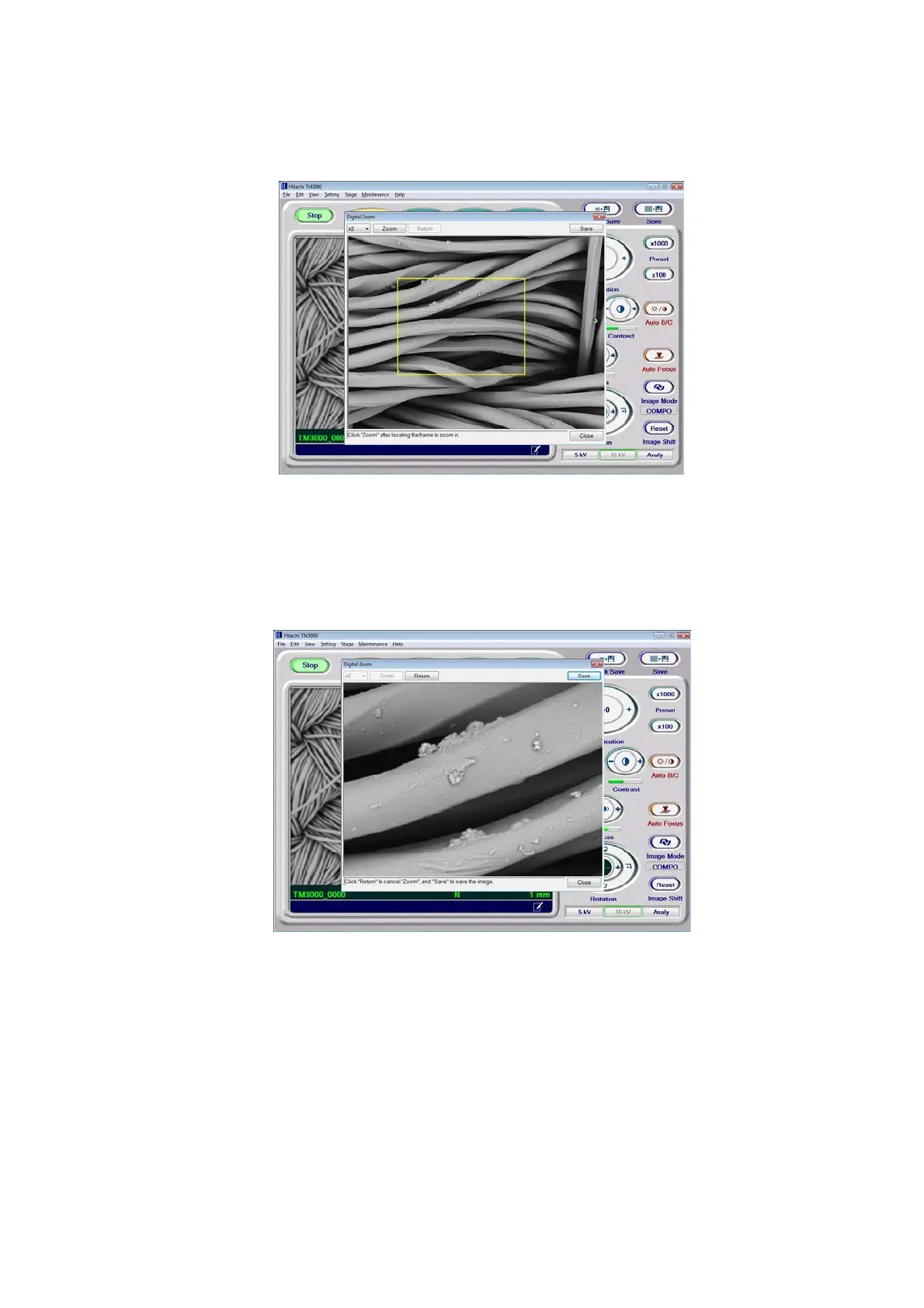

Figure
4.3.30-3 D
i
gital
Zoom
Window
3.
Clicking [Zoom] by specifying a zoom magnification and a z
oom
location displays a
digital zoom image.
Figure 4.3.30-4
Digital Zoom Execution Windo
w
201
203
