Faxitron CT Specimen Radiography System User Guide
Chapter 6: Faxitron CT Software Operation
5081-9544 Revision 004 Page 67

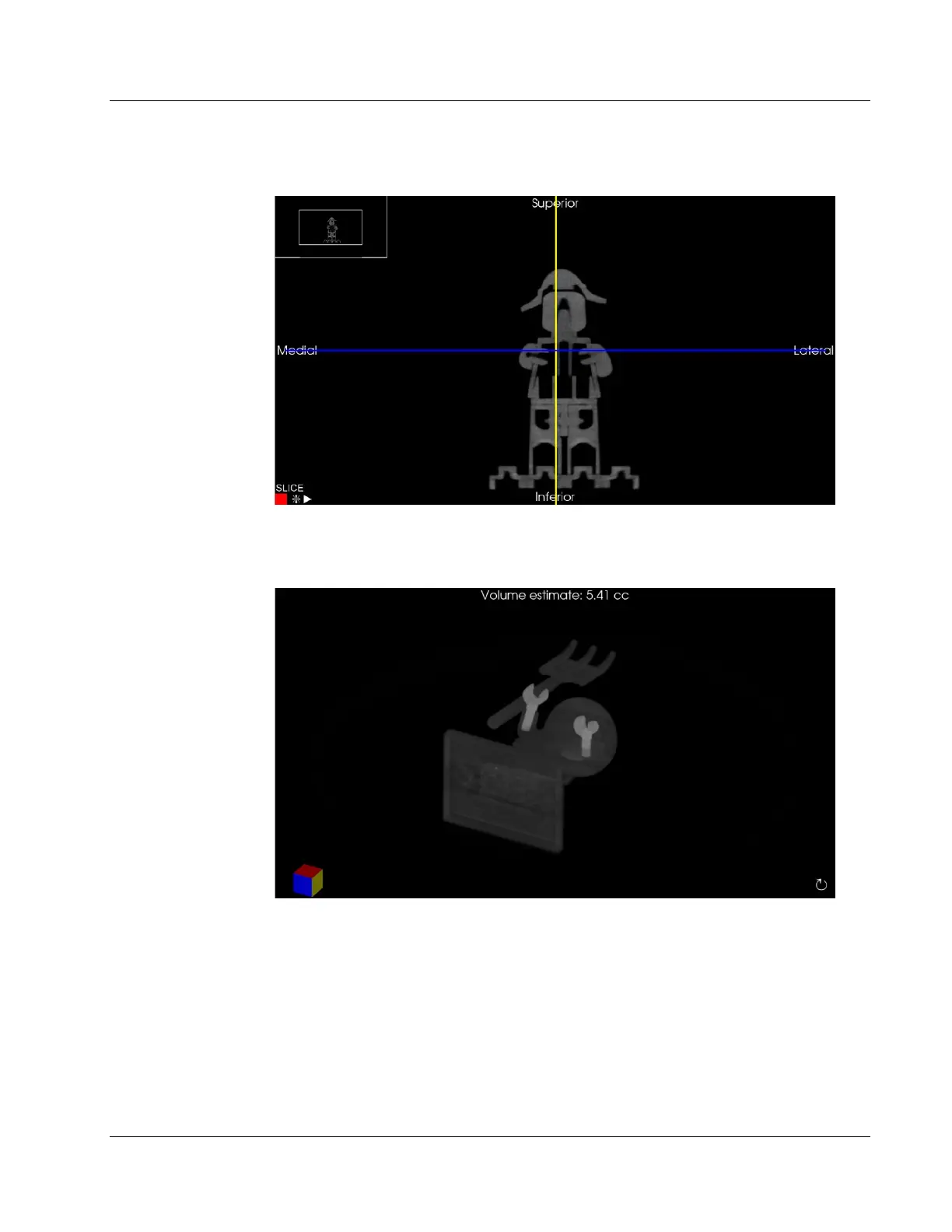

View 3, lower left quadrant, is Posterior Anterior (PA).
Figure 81: AP View
View 4, lower right, is the 3D Rendered View.
Figure 82: 3D Rendered View
The colored faces of the Cube in the 3D view correspond to the squares in the corner of
the other 3 views. In this example the red face is the top of the cube (Anterior) and the
Slice view with the red square in the corner, see figure 73, is the top-down view (Anterior
Posterior).
