ENGINEERING MANUAL OF AUTOMATIC CONTROL
AIR HANDLING SYSTEM CONTROL APPLICATIONS
224

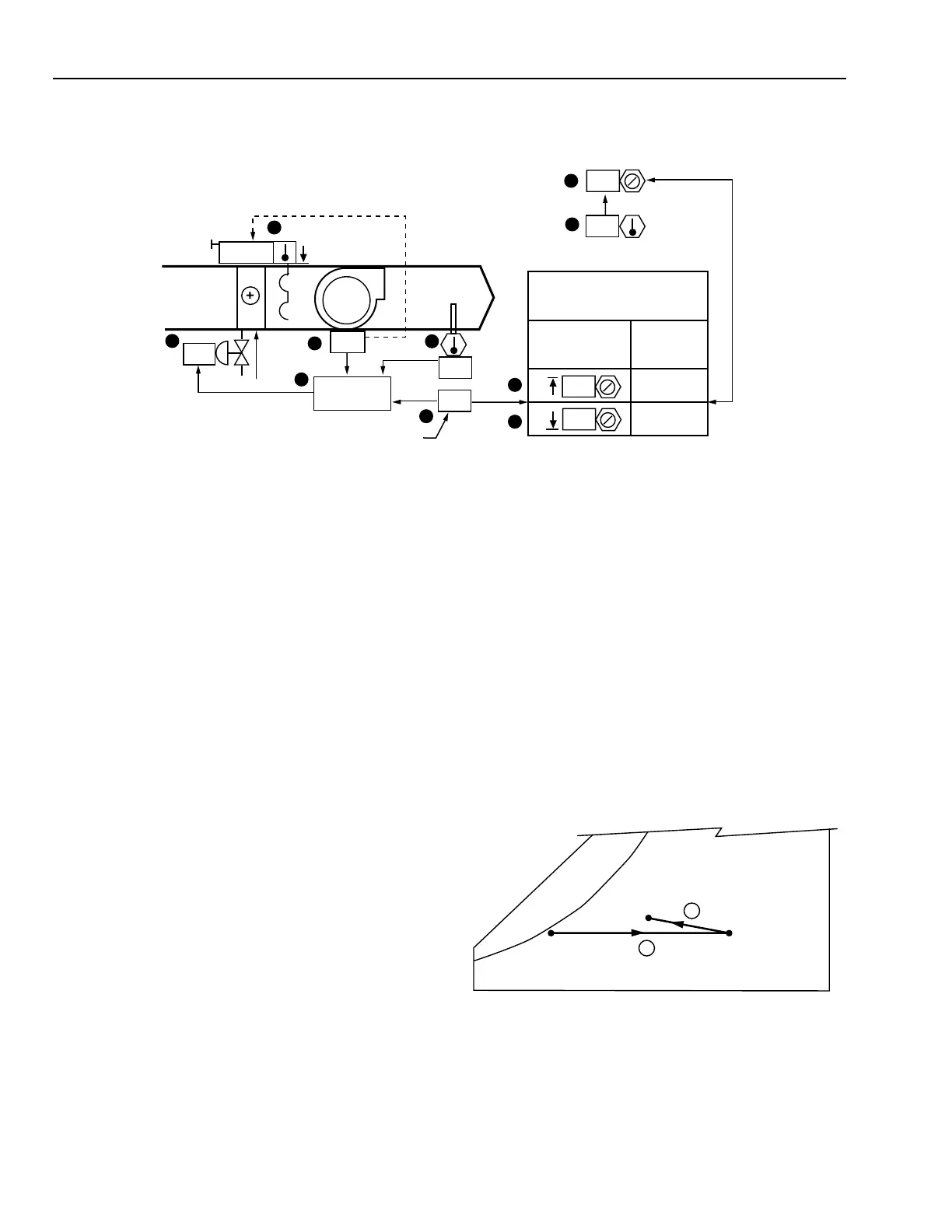

CONTROL FROM SPACE WITH SUPPLY TEMPERATURE RESET
Functional Description
Item
No. Function
1-2 Control system energizes when fan is turned
on (See FAN SYSTEM START-STOP
CONTROL).
3 Hot water valve modulates heating medium.
4,5 SA temperature controlled to maintain setpoint.
6,7 SA temperature setpoint determined by space
heating load.
8,9 Space temperature is compared to space
temperature setpoint to determine SA
temperature setpoint.
10 Control program coordinates temperature
control and fan interlock.
FEATURES
1. Air is supplied at a temperature necessary to make up the
sensible heat loss in the space.
2. The SA temperature will not fall below a desired
minimum or rise above a desired maximum (unless
heating coil entering air rises).
CONDITIONS FOR SUCCESSFUL OPERATION
A multiple inline coil arrangement if a high temperature rise
is required.
SPECIFICATIONS
See FAN SYSTEM START-STOP CONTROL.
1. Anytime the supply fan runs, the hot water valve shall be
modulated by an SA PID control loop to maintain the
SA temperature setpoint. The SA temperature setpoint
shall be reset from no lower than 13°C to no greater than
38°C as the space temperature PID demand for heating
varies from 0% to 100%.
2. The N.O. hot water valve shall close upon fan shutdown.
PSYCHROMETRIC ASPECTS
The supply condition of the air depends on the condition of
the entering air and the temperature rise needed to satisfy the
space heating requirements.
In the following chart it is assumed that:
1. The space temperature control loop is set at 24°C.
2. MA condition is 10°C DB and 9°C WB.
3. A space heating load exists which is large enough to require
35°C DB SA to meet the design condition heat loss.
The following results are obtained:
Item
No. Explanation
1 The heating of the MA to the supply temperature
occurs along a line of constant moisture content.
2 Space air picks up moisture from the
occupants and contents of the space.
SPACE
24°C
SA 35°C DB
MA
10°C DB, 9°C WB
C3239
1
2
M15160
10
CONTROL
PROGRAM
SA
MA
ON
35
1
4
2
8
9
5
7
6
35
NORMAL
38
13
SUPPLY AIR
TEMPERATURE
RESET SCHEDULE
SPACE
TEMPERATURE
CURRENT SUPPLY AIR
TEMPERATURE SETPOINT
N.O.
SUPPLY AIR
TEMPERATURE
SETPOINT
SPACE
HEATING
DEMAND
0
100
22
22
3
00
