ENGINEERING MANUAL OF AUTOMATIC CONTROL
DAMPER SELECTION AND SIZING
464
RA
EA
OA
SERIES RESISTANCE
IN VARIABLE
FLOW PATH
LOUVERS
OPPOSED BLADE
DAMPER
PARALLEL
BLADE
DAMPER
POINTS OF CONSTANT PRESSURE
HIGH PRESSURE
LOW PRESSURE
C2394
MIXED
AIR
RETURN
AIR
OUTDOOR
AIR
C2392
AIR FLOW
BYPASS
FACE
C2395

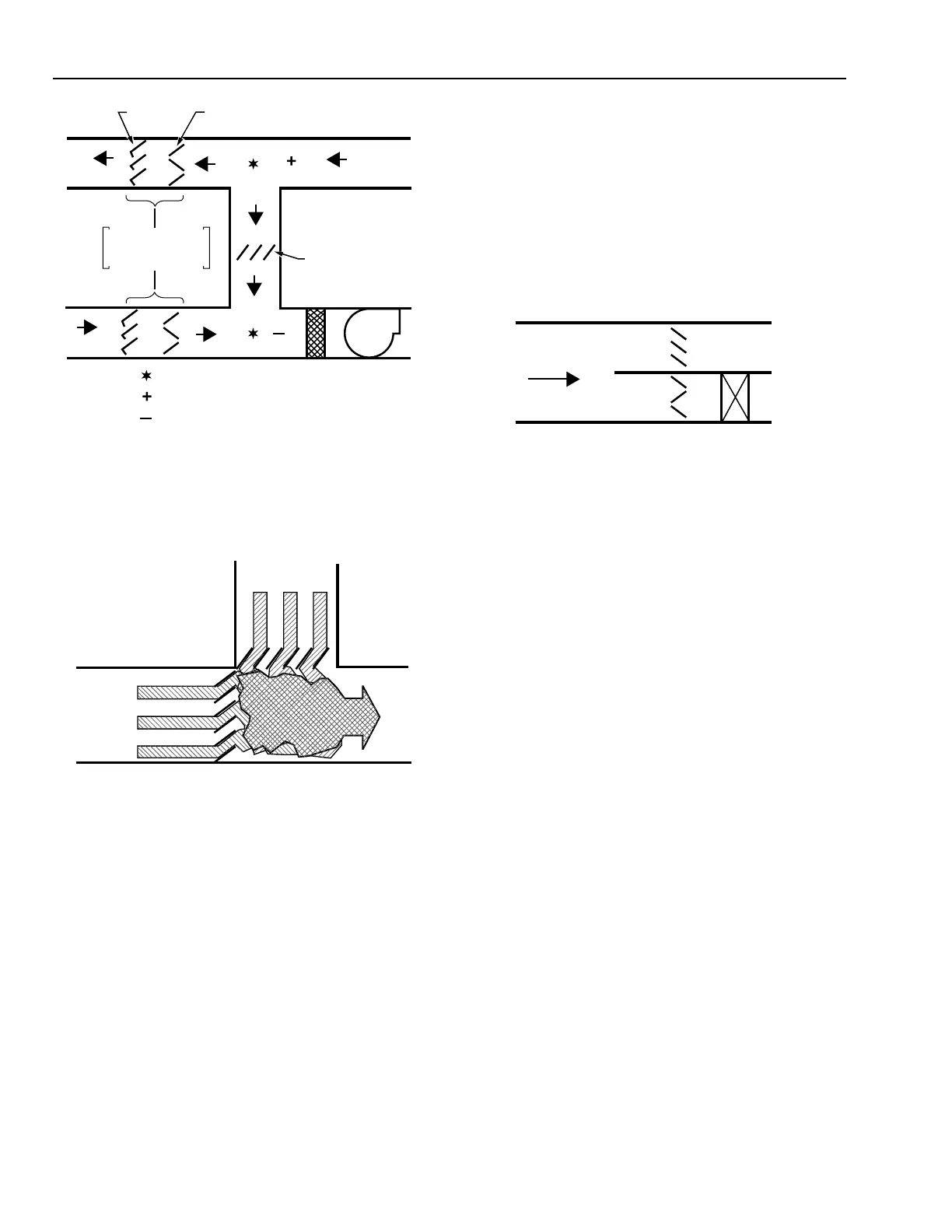

Fig. 35. Mixed Air System with Louvers.
Figure 36 shows correct orientation of parallel blade dampers
for effective mixing. Proper orientation helps avoid cold areas
in the mixed air stream which could freeze coils.
Fig. 36. Parallel Blade Dampers
Oriented for Effective Mixing.
FACE AND BYPASS CONTROL
Figure 37 shows a face and bypass damper application. The
system pressure drop is relatively constant across the bypass
damper so a parallel blade damper is used for minimum pressure
drop at full flow. The system pressure drop across the face
damper shifts from the coil to the damper as the damper closes
so an opposed blade damper is used for more linear control.
The face damper should be equal to the coil size to prevent
stratification (hot and cold spots) across the coil.
Fig. 37. Face and Bypass Damper Application.
THROTTLING CONTROL
Either parallel or opposed blade dampers can be used for
throttling applications. If the primary resistance of the system
is the damper, parallel blade dampers are preferred. However,
if significant series resistance exists, like a reheat coil, opposed
blade dampers should be used.
