Honeywell C300 User Manual

3. C300 Controller Installation and Upgrades
3.2. C300 Controller installation
R500
April 2017
Series 8 C300 Controller User's Guide
Honeywell
35
Considerations
 When installing a redundant controller pair consisting of a primary and a partner
secondary controller:
 The secondary controller should be installed in the same cabinet as the primary
controller.
 The secondary controller may be installed on a separate channel from the primary
controller.
To install a C300 Controller, perform the following steps.
Step
Action
1
Refer to appropriate site location drawings for the specified controller
installation location, controller Device Index (FTE address) and wiring
diagrams.
2
Identify the mounting location on channel and align mounting holes in IOTA
with screw hole locations on the channel.
3

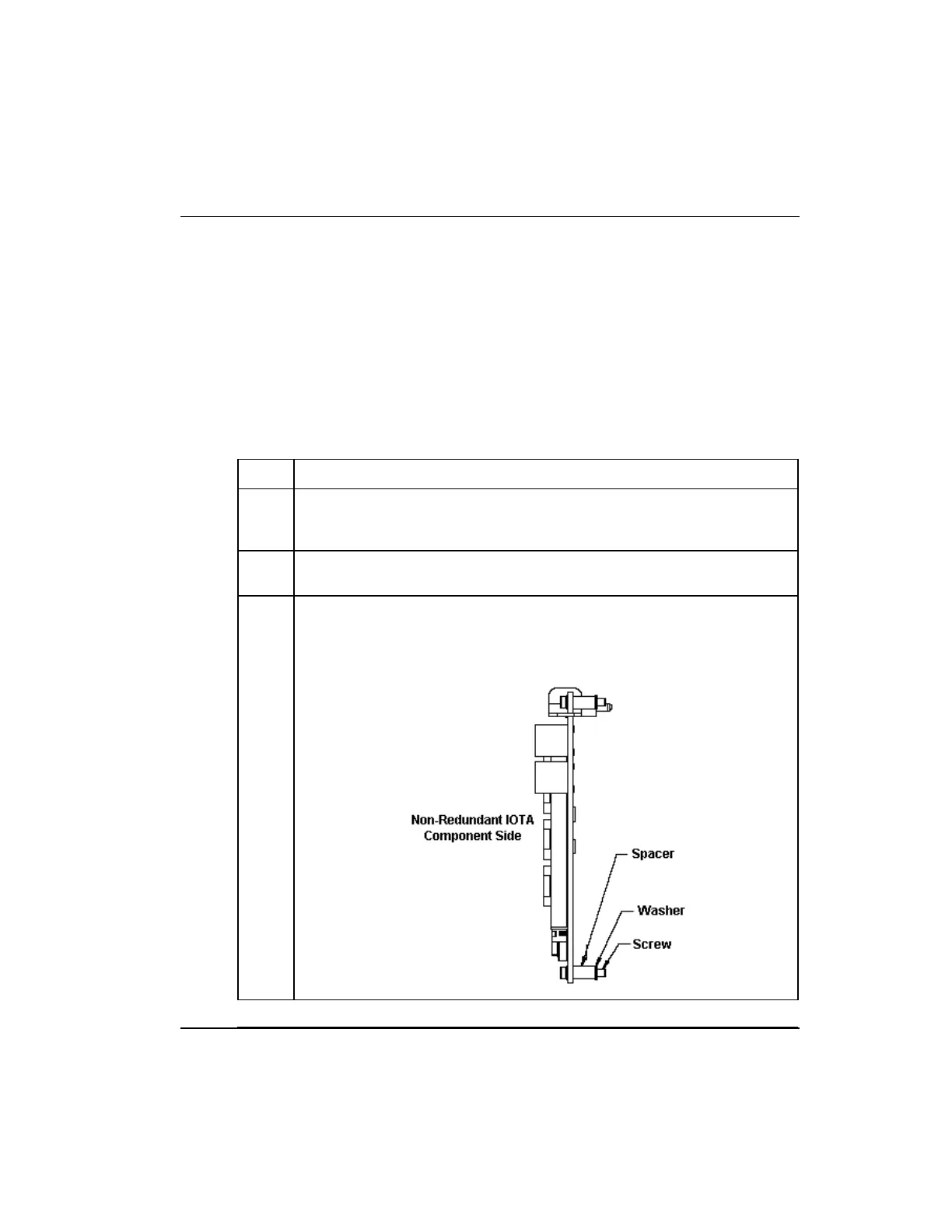

Be sure component side of IOTA is facing up. Refer to the figure below.
Assemble mounting screws, washers and spacers provided. Insert spacers
and washers between backside of IOTA and front of channel.

Honeywell C300 Specifications

General

Memory	512 MB RAM, 512 MB Flash
Type	Process Controller
Communication Ports	Ethernet, Serial
Power Supply	24V DC
Inputs	Analog and Digital
Outputs	Analog and Digital
Communication	Ethernet, Serial, HART
Redundancy	Supported (Hot Standby)
