25
Galaxy 2 Series Installation Manual
Mk7 LCD Keypad/Keyprox
The Mk7 keypad is a 16 character alpha-numeric keypad used to program and set the Galaxy 2 Series. The
window display is spread over two lines.
The Mk7 keyprox is a standard keypad with a proximity card reader combined into one housing. This allows
dual function setting/unsetting ability from one station without the need for a separate card reader.
Keypad/Keyprox Installation
1. Remove the keypad from its packaging.
2. To attach the keypad to the wall, the back plate must first be removed from the front plate. To do this,
insert a suitable tool into both openings at the bottom of the keypad and turn the tool gently.
CAUTION: When the keypad is separated make sure that the anti-static precautions are taken
with the keypad pcb to avoid damage from esd (electro static discharge).
3. Use the backplate as a template, then mark the locations for the three attachment screws in the
required position. Use the keyhole slot at the top of the backplate and the two elongated
holes at the bottom.

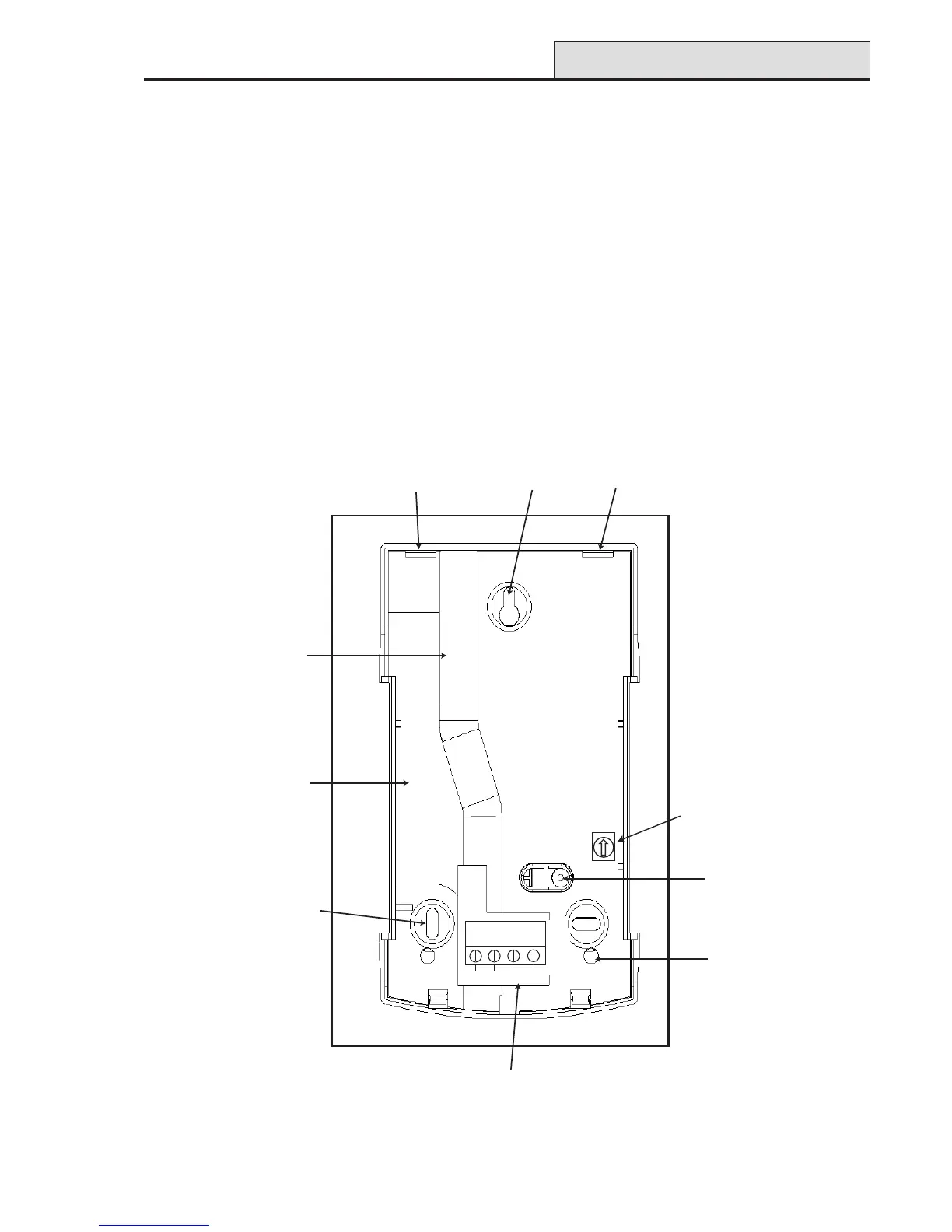

Figure 18. Galaxy Mk7 Keypad Backplate Installation
Peripherals (cont’d)
aperture
keyhole slot
aperture
cable
channel
cable
stowage
area
elongated
hole
4-way
connector
knockout
hole
sacrificial
wall
tamper
B
A
+
-
16-way rotary
address switch
SW1
