Honeywell Galaxy 2 Series Installation Manual

32
Galaxy 2 Series Installation Manual
ECP Zone Expander (2–44+ Only)
This is an expander for use on panels that use the ECP communication Bus. Up to three zone expanders can
be fitted to the Galaxy 2–44+ panel. Each expander gives 8 extra hardwired zones and four programmable
outputs. An alternative expander gives four extra hardwired zones and no outputs.

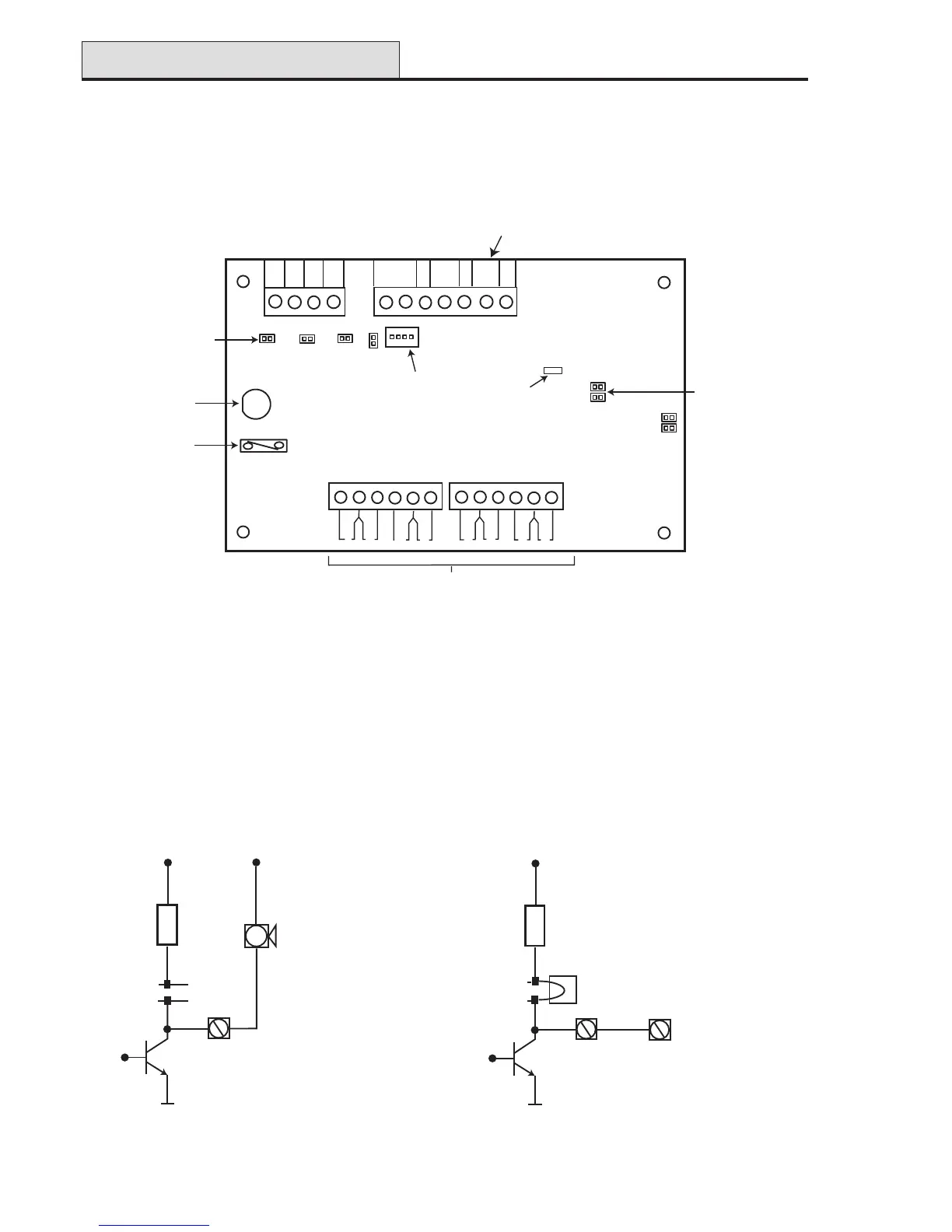

Figure 22. Zone Expander Outputs
Zone Expander Outputs
The four outputs are switched 0V (0V active). Without the jumper they will float in the ‘OFF’ state (see
Figure 23). They can apply a +12V signal, if required, by fitting the appropriate pull-up jumper supplied (see
Figure 24). (This is typically required for activating comms devices). All devices wired to the outputs must
have their negative terminals wired to the switched output, and their positive terminals wired to the + 12V
output.
Figure 23. Output without jumper Figure 24. Output with jumper
ECP Zone Expander
SW 1
1
2
3
4
5
6
7
8
Zone Terminals
(zones 5-8 not fitted in 4-zone version)
1
2
34
12V Pull-up
Jumpers
Tamper
Switch
Tamper
By-pass
Switch
Engineer
Socket
Outputs
(not fitted in 4-zone version)
B
A
-
+12V
-
+12V
S
DI
I/P
O/P
DO
Data Input/
Data Output
12V
Input
Address
Select
12V
Output
ZD1-0130
Data LED
LK8
LK9
+12 V
+12 V
3k3Ω
Jumper
not
required
0 V
Output
terminal
Siren
+
-
+12 V
3k3Ω
Jumper
fitted
0 V
Output
terminal
Input to
dialler/Redcare
