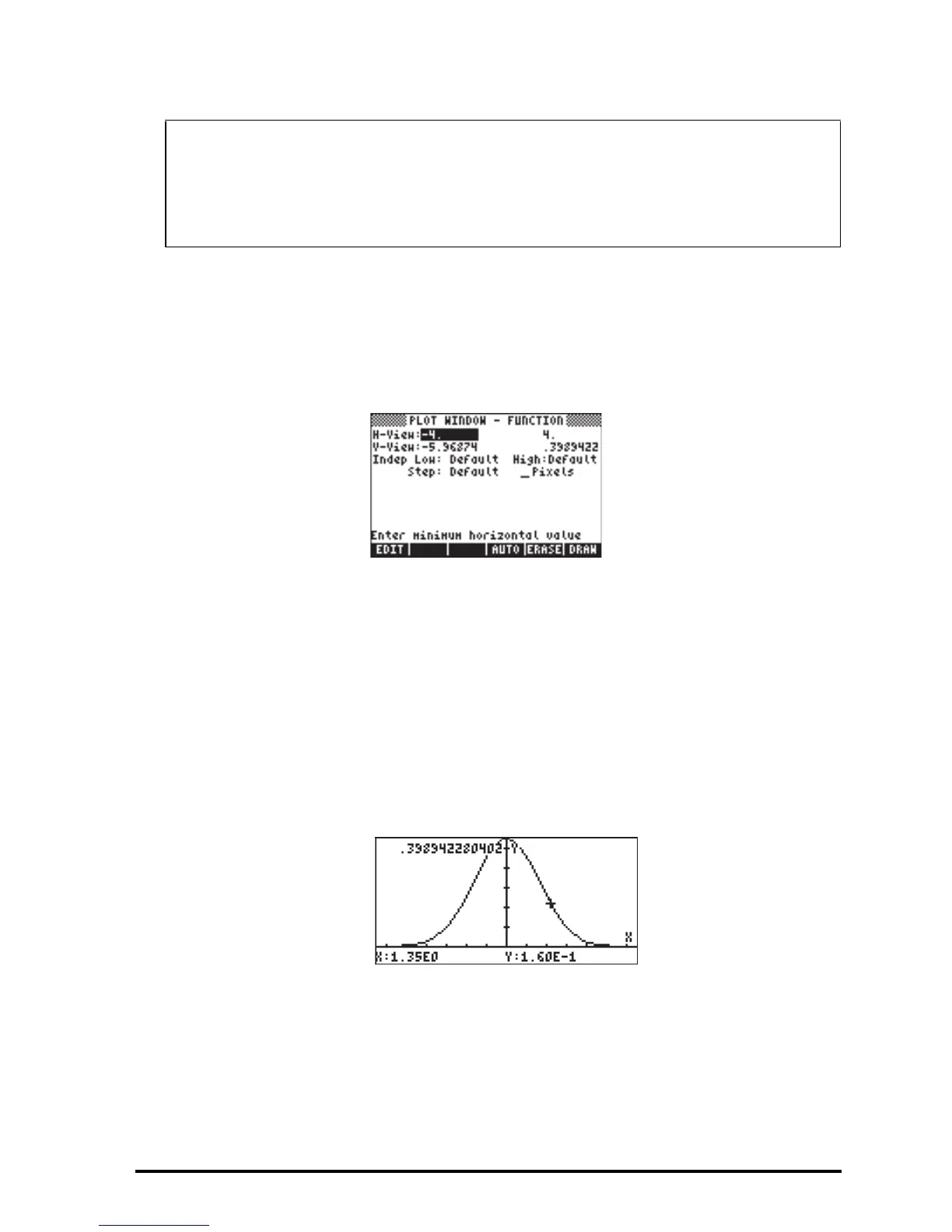

Page 12-4
Θ Enter the PLOT WINDOW environment by entering „ò (press
them simultaneously if in RPN mode). Use a range of –4 to 4 for H-
VIEW, then press @AUTO to generate the V-VIEW automatically. The
PLOT WINDOW screen looks as follows:
Θ Plot the graph: @ERASE @DRAW (wait till the calculator finishes the graphs)
Θ To see labels:@EDIT L @LABEL @MENU
Θ To recover the first graphics menu: LL@)PICT
Θ To trace the curve: @TRACE @@X,Y@@ . Then use the right- and left-arrow keys
(š™) to move about the curve. The coordinates of the points you
trace will be shown at the bottom of the screen. Check that for x =
1.05 , y = 0.231. Also, check that for x = -1.48 , y = 0.134. Here is
picture of the graph in tracing mode:
Θ To recover the menu, and return to the PLOT WINDOW environment,
press L@CANCL@.
<<
X EXP(-X^2/2)/(2*π) >>.
Press ƒ, twice, to drop the contents of the stack.
