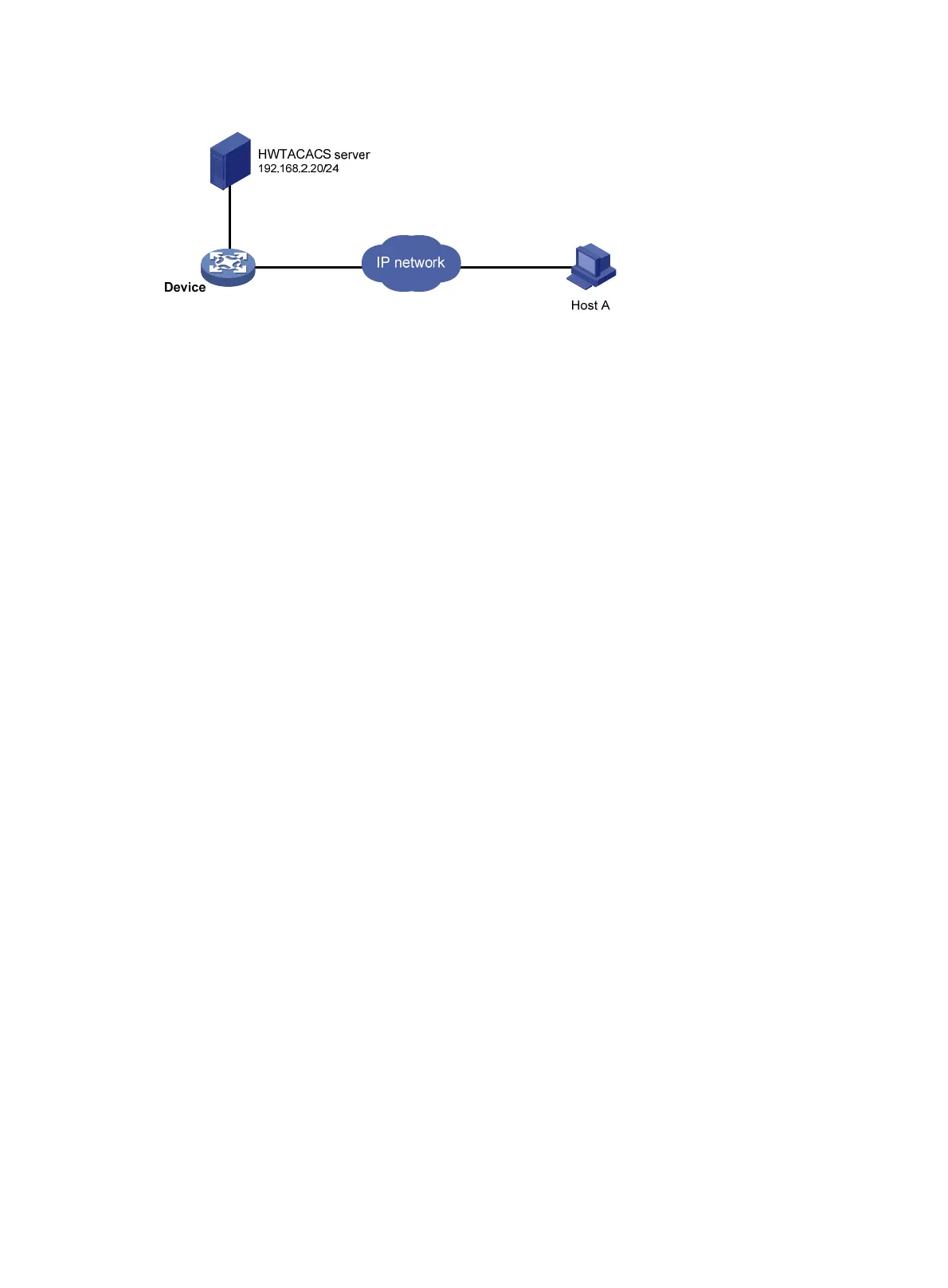

Figure 22 Network diagram

Configuration procedure

# Assign IP addresses to relevant interfaces. Make sure the device and the HWTACACS server can reach

each other. Make sure the device and Host A can reach each other. (Details not shown.)

# Enable the Telnet server.

<Device> system-view

[Device] telnet server enable

# Enable scheme authentication for user lines VTY 0 through VTY 63.

[Device] line vty 0 63

[Device-line-vty0-63] authentication-mode scheme

# Enable command authorization for the user lines.

[Device-line-vty0-63] command authorization

[Device-line-vty0-63] quit

# Create HWTACACS scheme tac.

[Device] hwtacacs scheme tac

# Configure the scheme to use the HWTACACS server at 192.168.2.20:49 for authentication and

authorization.

[Device-hwtacacs-tac] primary authentication 192.168.2.20 49

[Device-hwtacacs-tac] primary authorization 192.168.2.20 49

# Set the shared keys to expert.

[Device-hwtacacs-tac] key authentication expert

[Device-hwtacacs-tac] key authorization expert

# Remove domain names from usernames sent to the HWTACACS server.

[Device-hwtacacs-tac] user-name-format without-domain

[Device-hwtacacs-tac] quit

# Configure the system-predefined domain system. Use the HWTACACS scheme tac for login user

authentication and command authorization. Use local authentication and local authorization as the

backup method.

[Device] domain system

[Device-isp-system] authentication login hwtacacs-scheme tac local

[Device-isp-system] authorization command hwtacacs-scheme tac local

[Device-isp-system] quit

# Create local user monitor. Set the password to 123, the service type to Telnet, and the default user role

to level-1.

[Device] local-user monitor
