HP 530 User Manual

8-16
Special Features
Wireless Distribution System (WDS) and Spanning Tree Protocol (STP)
At least one Access Point 530 must be connected to the network by means of
a wired Ethernet connection. This Access Point 530 can then provide wireless
WDS links for up to six other Access Point 530 units. In this configuration, the
connected Access Point 530 (the one with the Ethernet connection) serves as
a central access point to pass traffic to and from the other remote access
points. This configuration is illustrated in Figure 8-3.

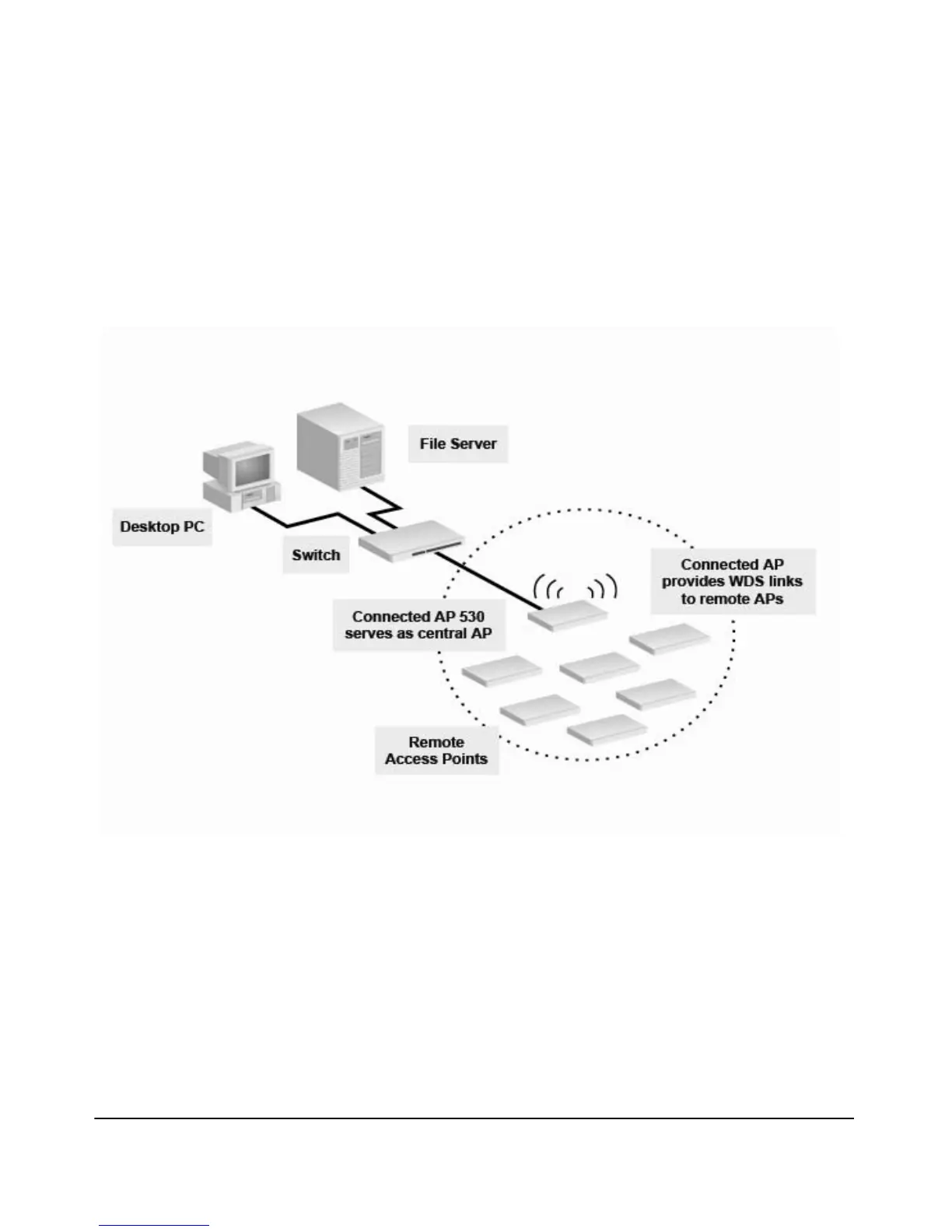

Figure 8-3. Wired Access Point Provides Wireless WDS Links to Wireless Access Points

HP 530 Specifications

General

Graphics	Intel GMA 950
Processor	Intel Core Duo T2050
RAM	512 MB, upgradable to 2 GB
Storage	80 GB HDD
Display	15.4-inch WXGA (1280 x 800)
Operating System	Windows XP Professional
Battery	6-cell Lithium-Ion
Optical Drive	DVD+/-RW
Ports	3 x USB 2.0, 1 x VGA, 1 x RJ-45, 1 x RJ-11, 1 x Headphone, 1 x Microphone
Wireless	802.11a/b/g
