Hardware options installation 87
9.
Remove the air scoop from the storage controller.
10. If you intend to use an FBWC module, install the module on the storage controller ("Installing the
storage controller and FBWC module options" on page 92).
11. For the four-bay LFF rear drive cage – Install the P440 controller in the low-profile PCIe expansion
slots 1, 2, 5, 6 or 7:
For the two-bay SFF rear drive cage – Install the P440 controller in the low-profile PCIe expansion
slots 1, 5, 6 or 7:

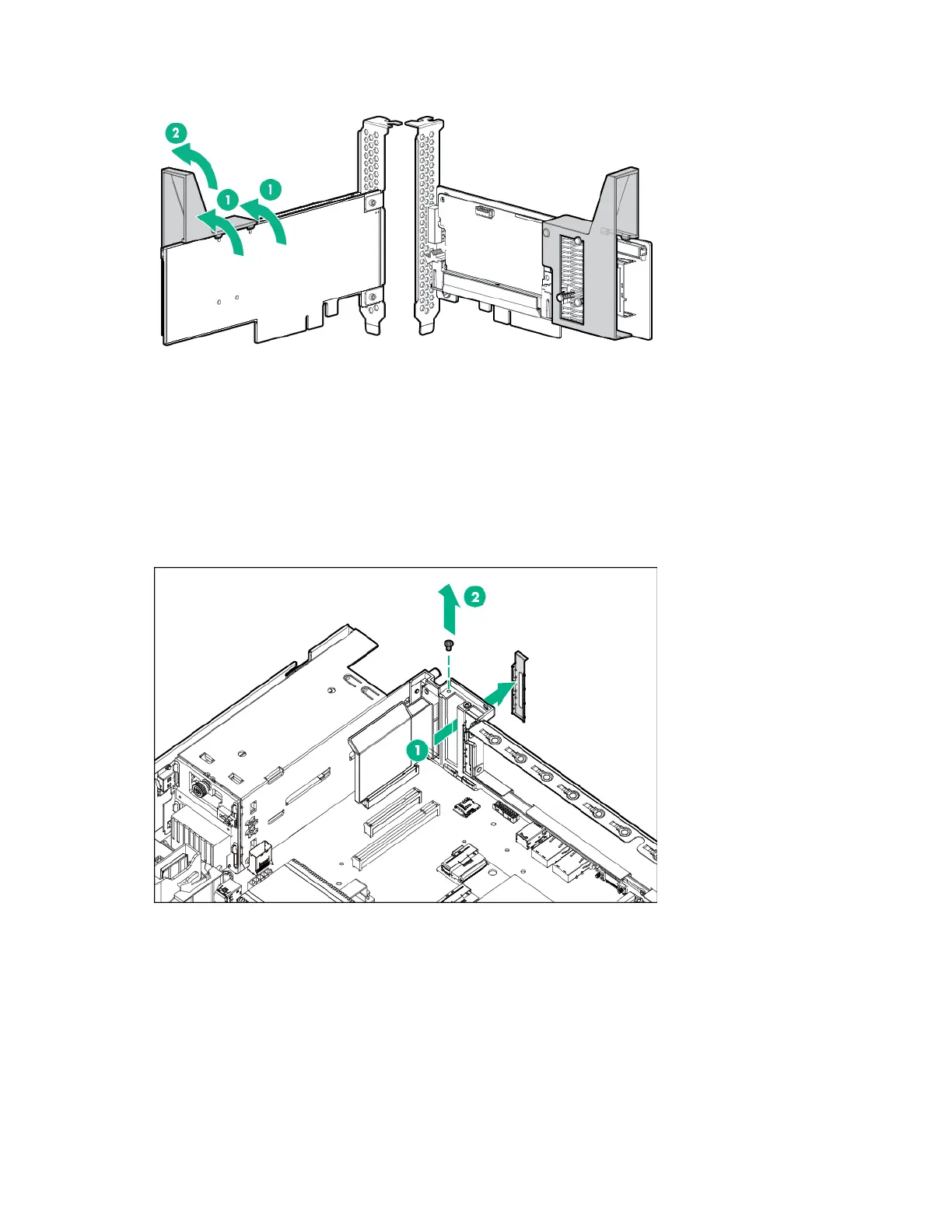

a. Remove the full-height bracket from the storage controller and attach the low-profile bracket.
For more information, see the documentation that ships with the option.
b. Remove the onboard PCI expansion slot cover.
