HP Vectra User Manual

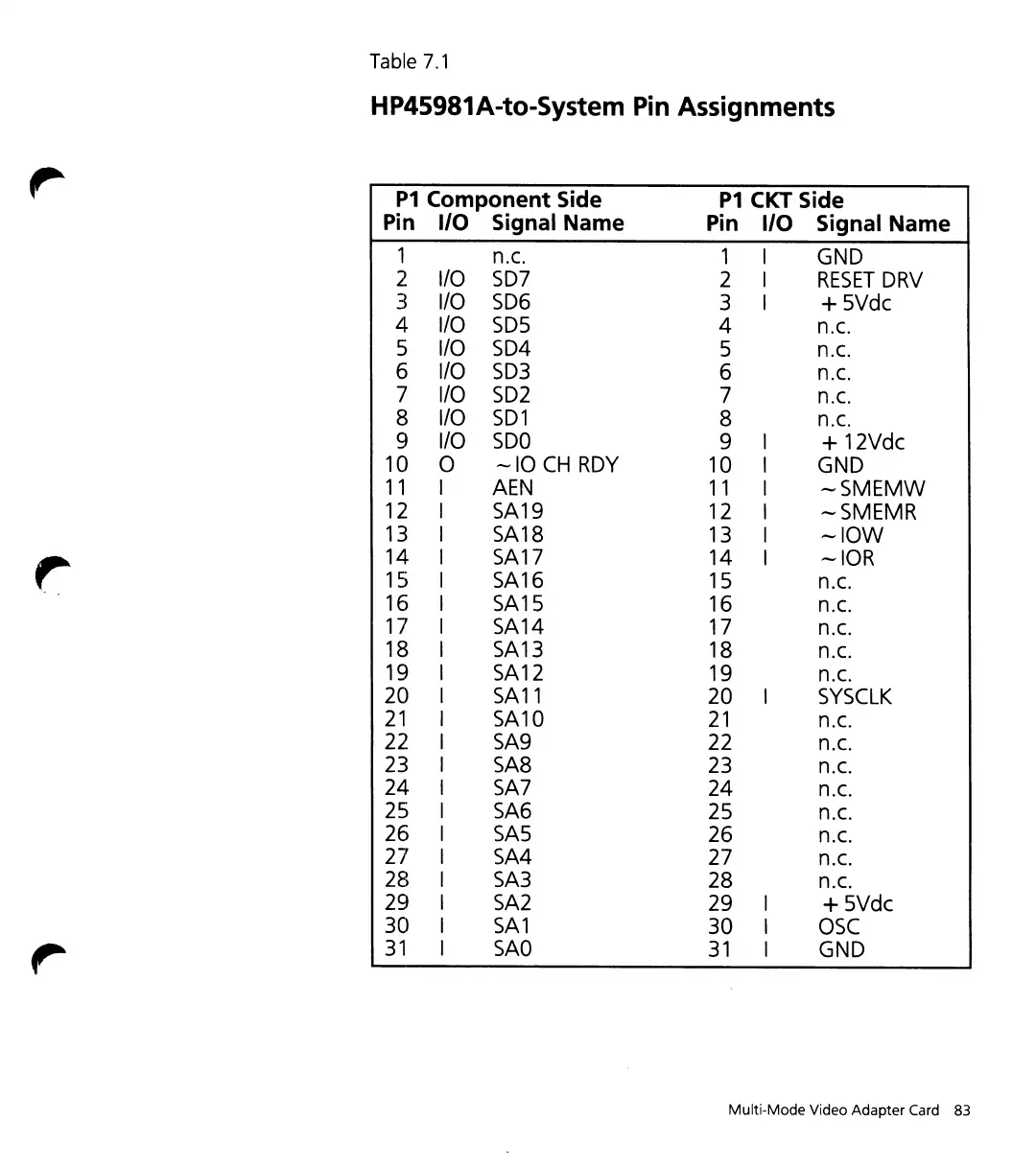

Table 7.1
HP45981A-to-System Pin Assignments
P1 Component Side
P1 CKT Side
Pin
I/O
Signal Name
Pin
I/O
Signal Name
1
n.c.
1 I
GND
2
I/O
SD7
2 I
RESET DRV
3
I/O
SD6
3
I
+ 5Vdc
4
I/O
SD5
4
n.c.
5
I/O
SD4
5
n.c.
6
I/O
SD3
6
n.c.
7
I/O
SD2
7
n.c.
8
I/O
SD1
8
n.c.
9
I/O
SDO
9
I
+ 12Vdc
10
0
-10 CH RDY
10
I
GND
11
AEN
11 I
-SMEMW
12
SA19
12
I
-SMEMR
13
SA18
13 I
-lOW
14
SA17
14 I
-lOR
15
SA16
15
n.c.
16
SA15
16
n.c.
17
SA14
17
n.c.
18
SA13
18
n.c.
19
SA12
19
n.c.
20
SA11
20
I
SYSCLK
21
SA10
21
n.c.
22
SAg
22
n.c.
23
SA8
23
n.c.
24
SA7
24
n.c.
25
SA6
25
n.c.
26
SA5
26
n.c.
27
SA4
27
n.c.
28
SA3
28
n.c.
29
SA2
29
I
+ 5Vdc
30
SA1
30
I
OSC
31
SAO
31
I
GND
Multi-Mode Video Adapter Card 83
